Curve 0 (Close throttle)

3MA CDI > CDI (facts) > Digital reading out oem curve

Reading digital out the oem closed throttle curve. (For future development)
This curve could work well with a 105 bulletin mod. Pipe

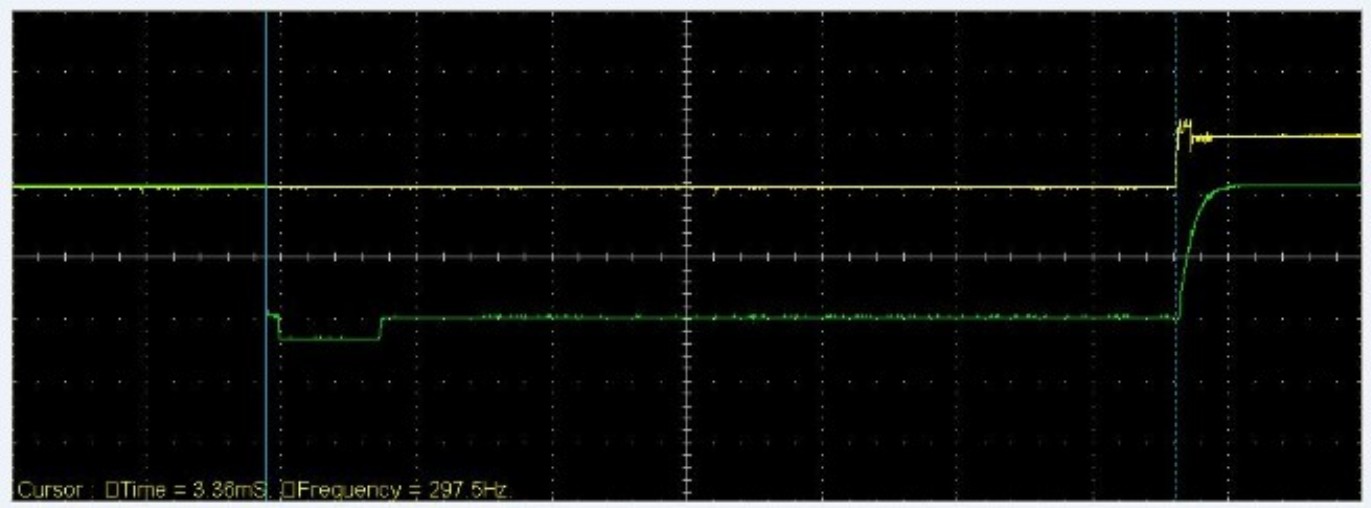

850rpm----3,36ms----18,71deg.

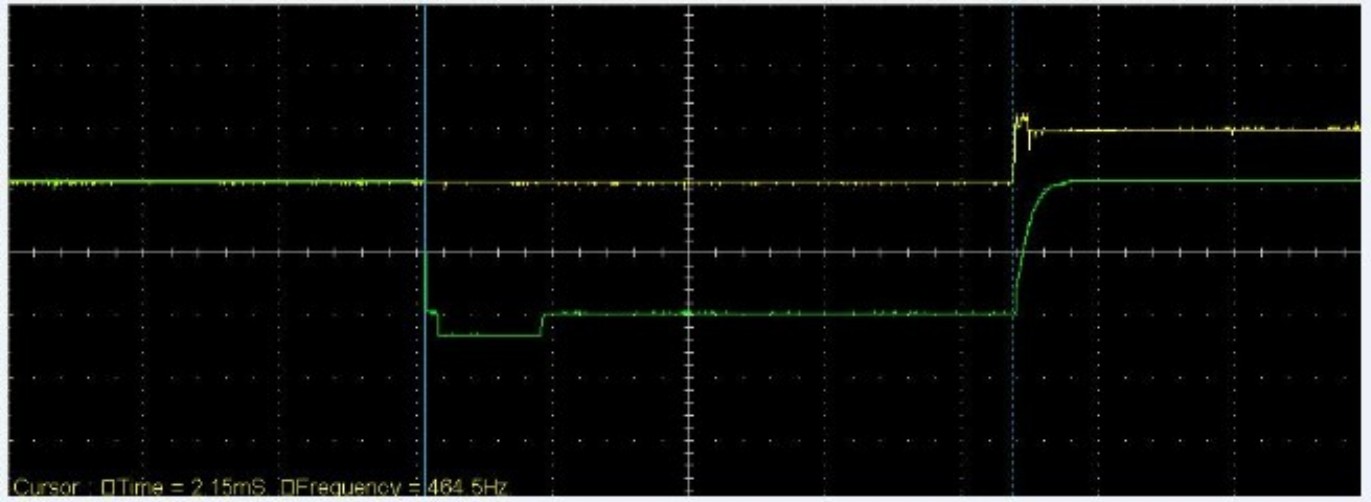

1341rpm----2,15ms---18,71deg.

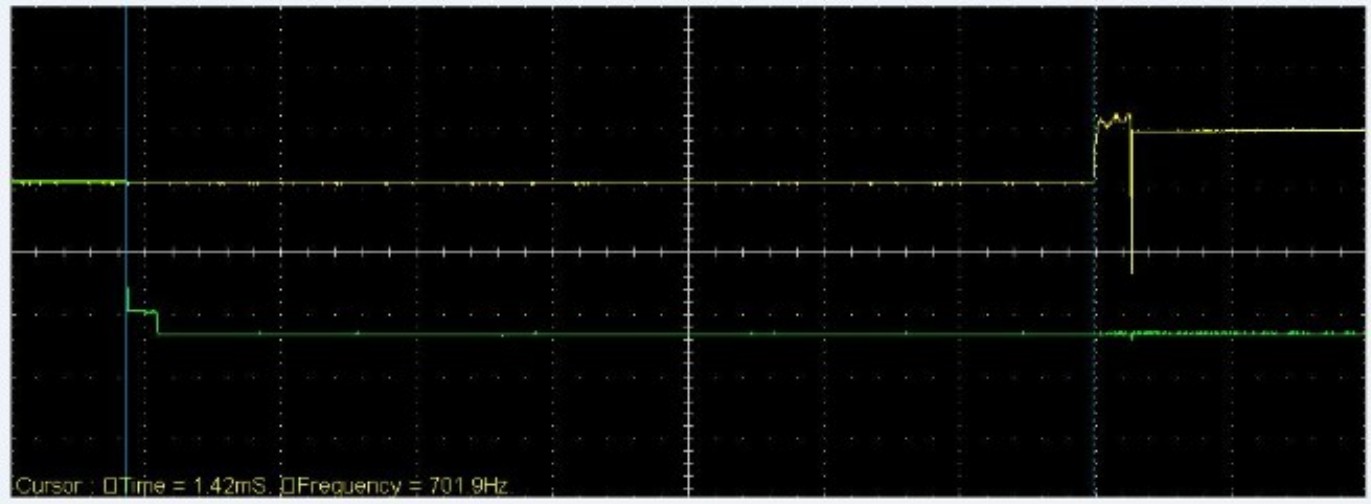

2052rpm----1,42ms----18,56deg.

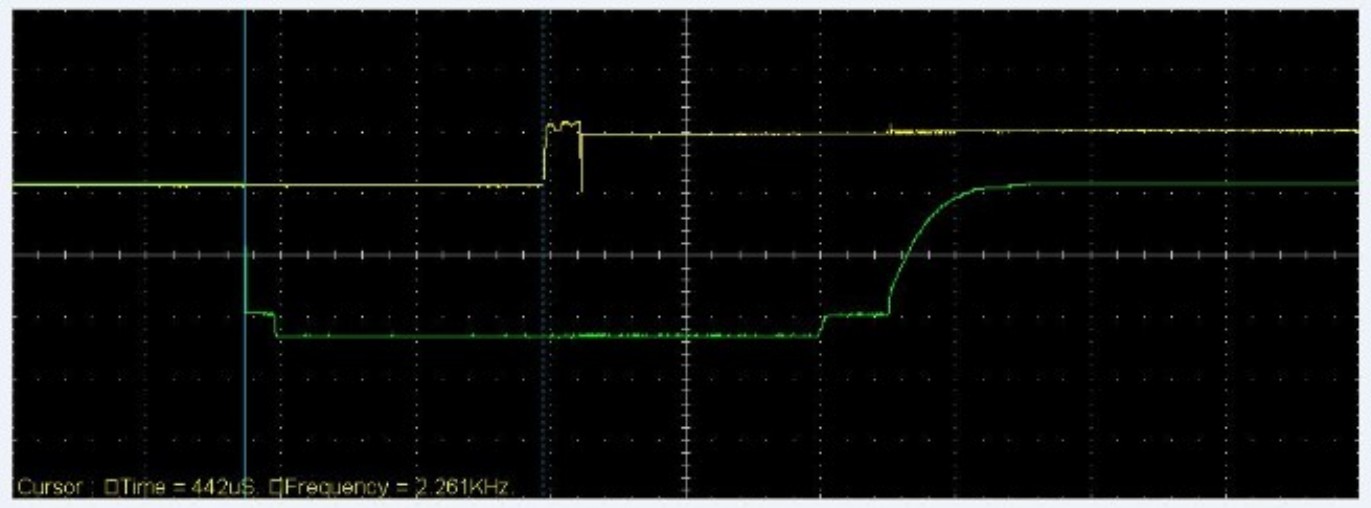

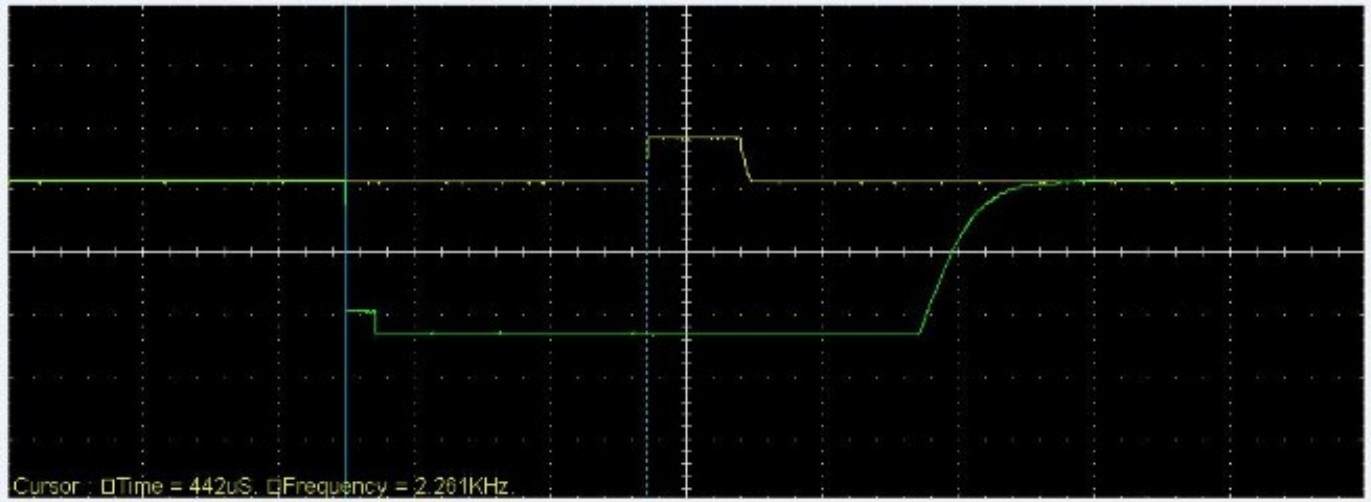

3084rpm----442us----27,83deg.

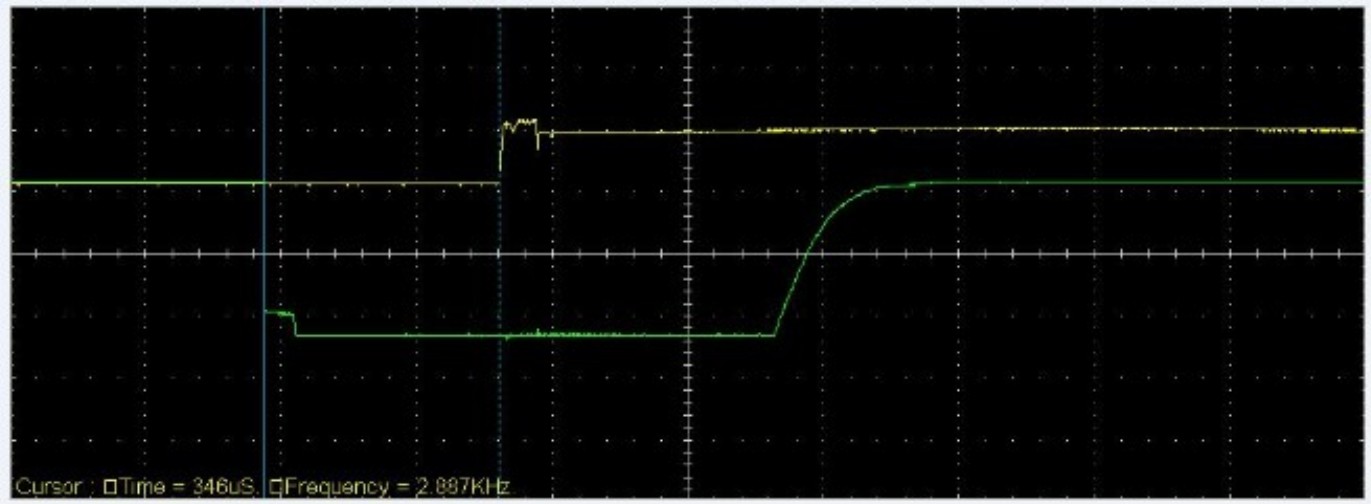

4161rpm----346us----27,37deg.

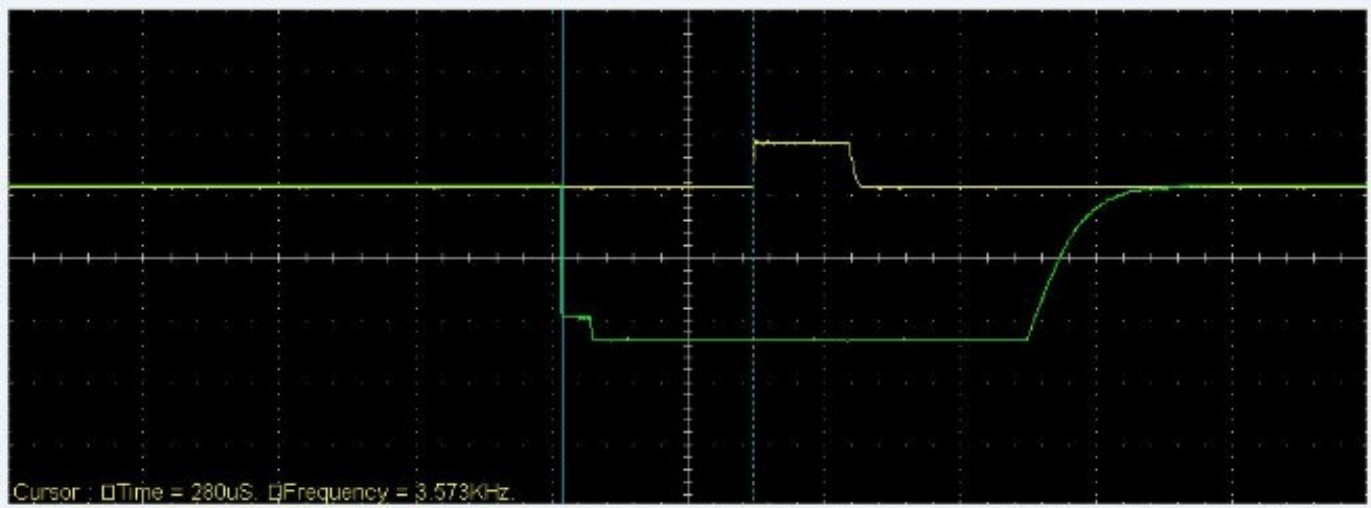

5310rpm----280us----27,08deg.

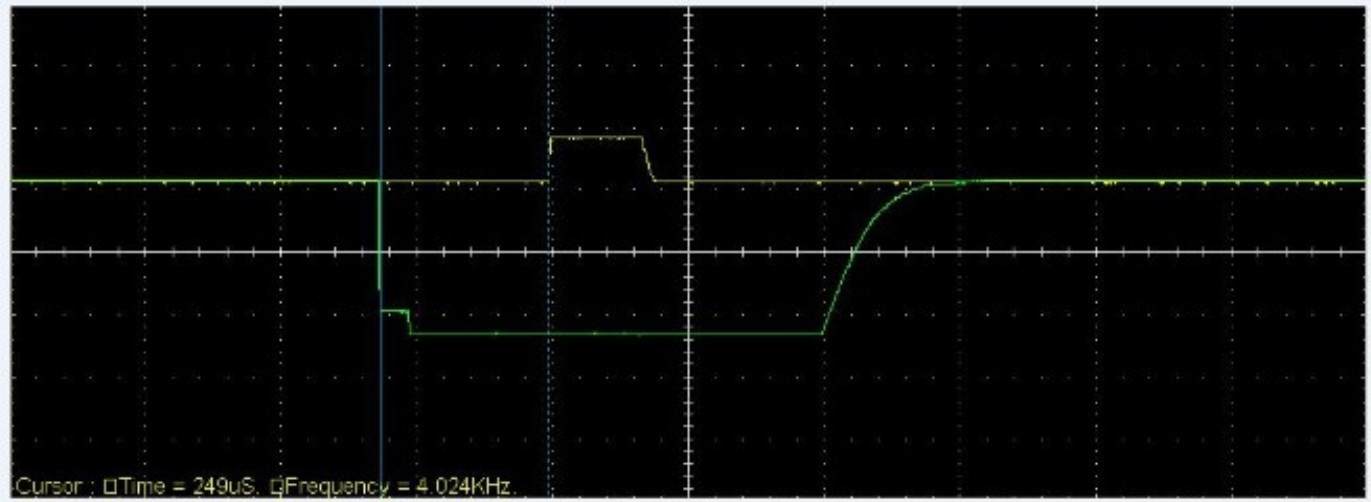

6270rpm----249us----26,64deg.

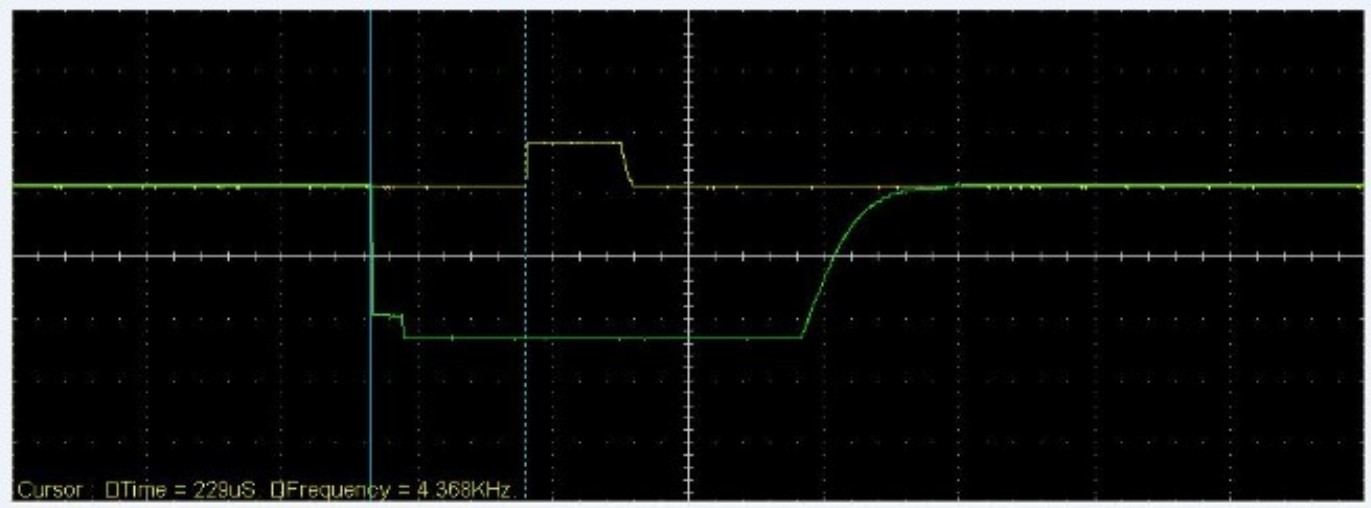

7260rpm----229us----26,03deg.

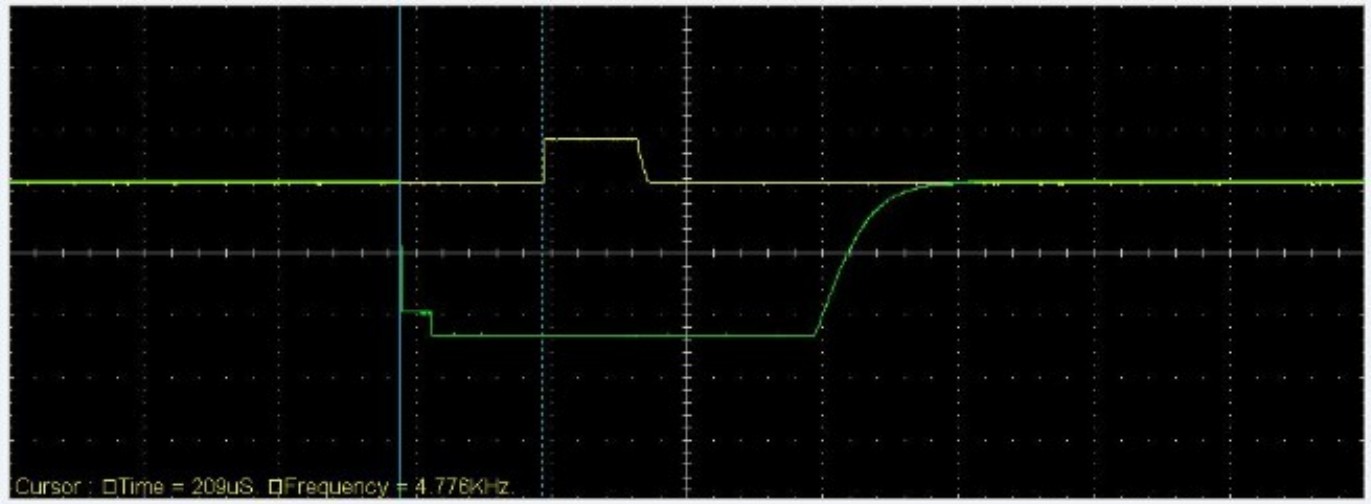

8190rpm----209us----25,73deg.

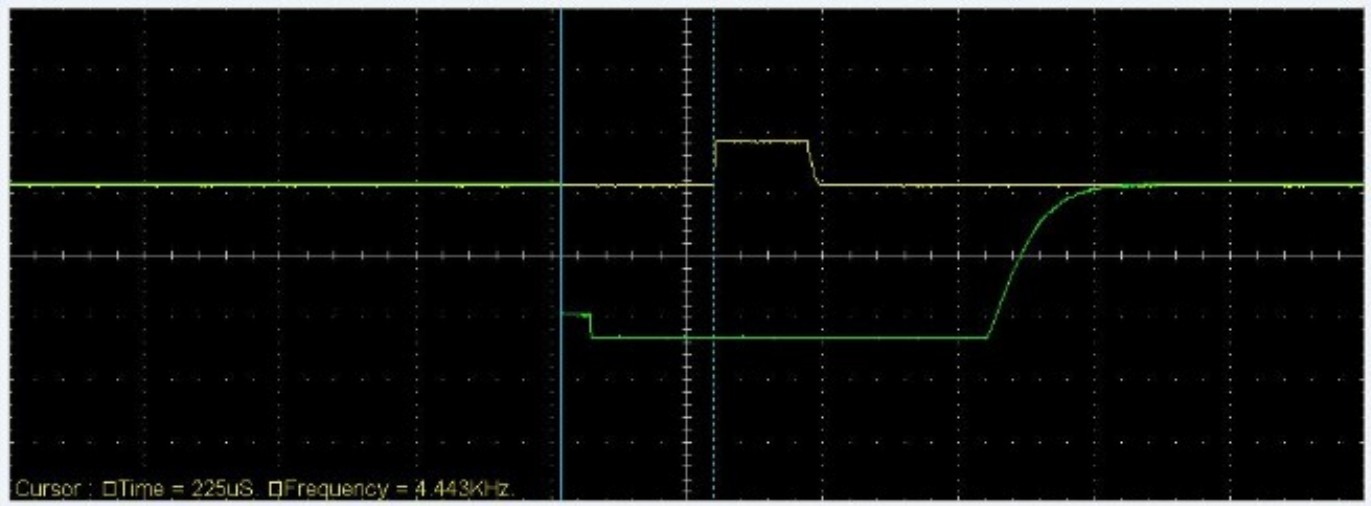

9333rpm----225us---23,41deg.

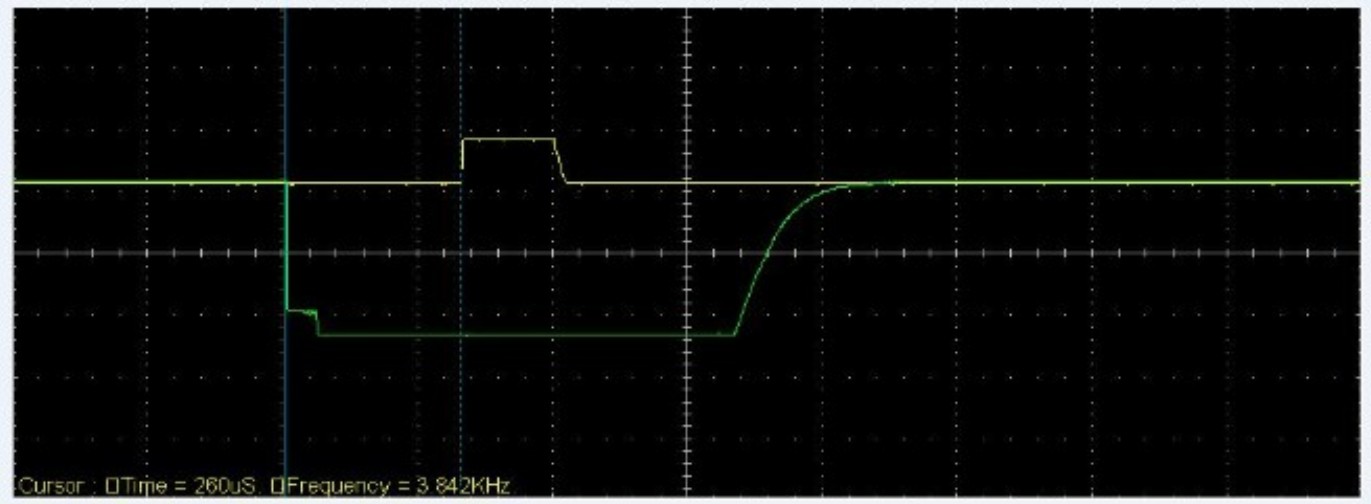

10310rpm----260us----19,92deg.

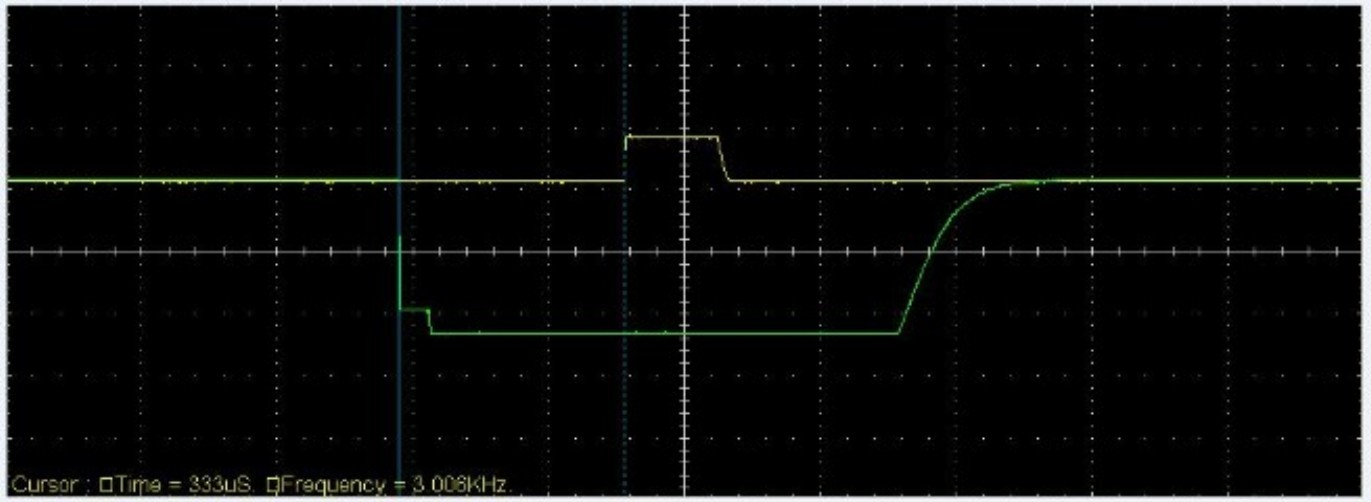

11280rpm----333us----13,47deg

12210rpm----442us----3,62deg.

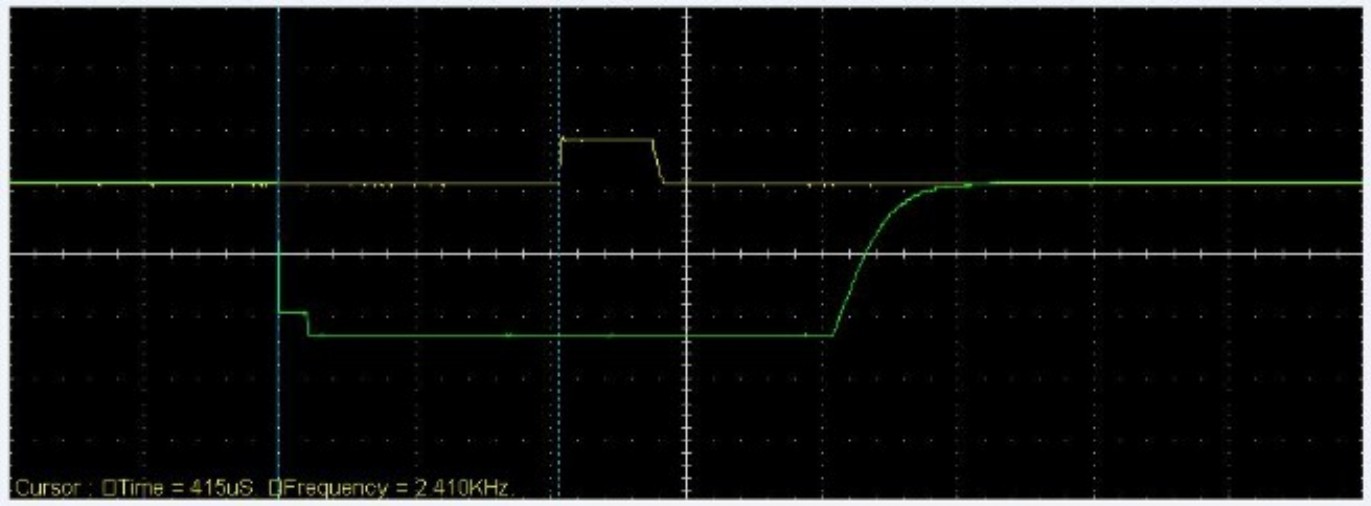

13250rpm---415us----3,01deg.

If we put all the degrees in a graphic, we see this result.
