FZR400RR Wheels

3MA1 MARLBORO > More details

How to mound the FZR400RR wheel into your 3MA

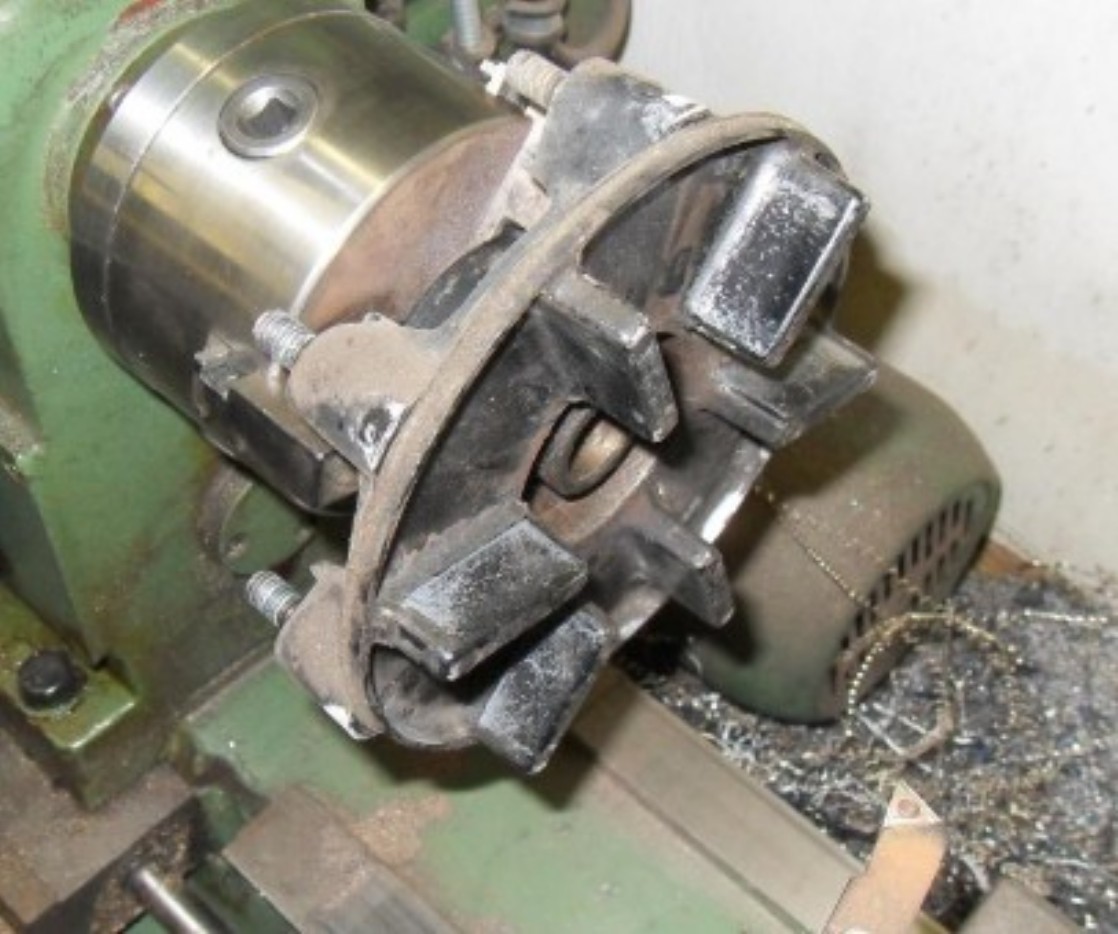

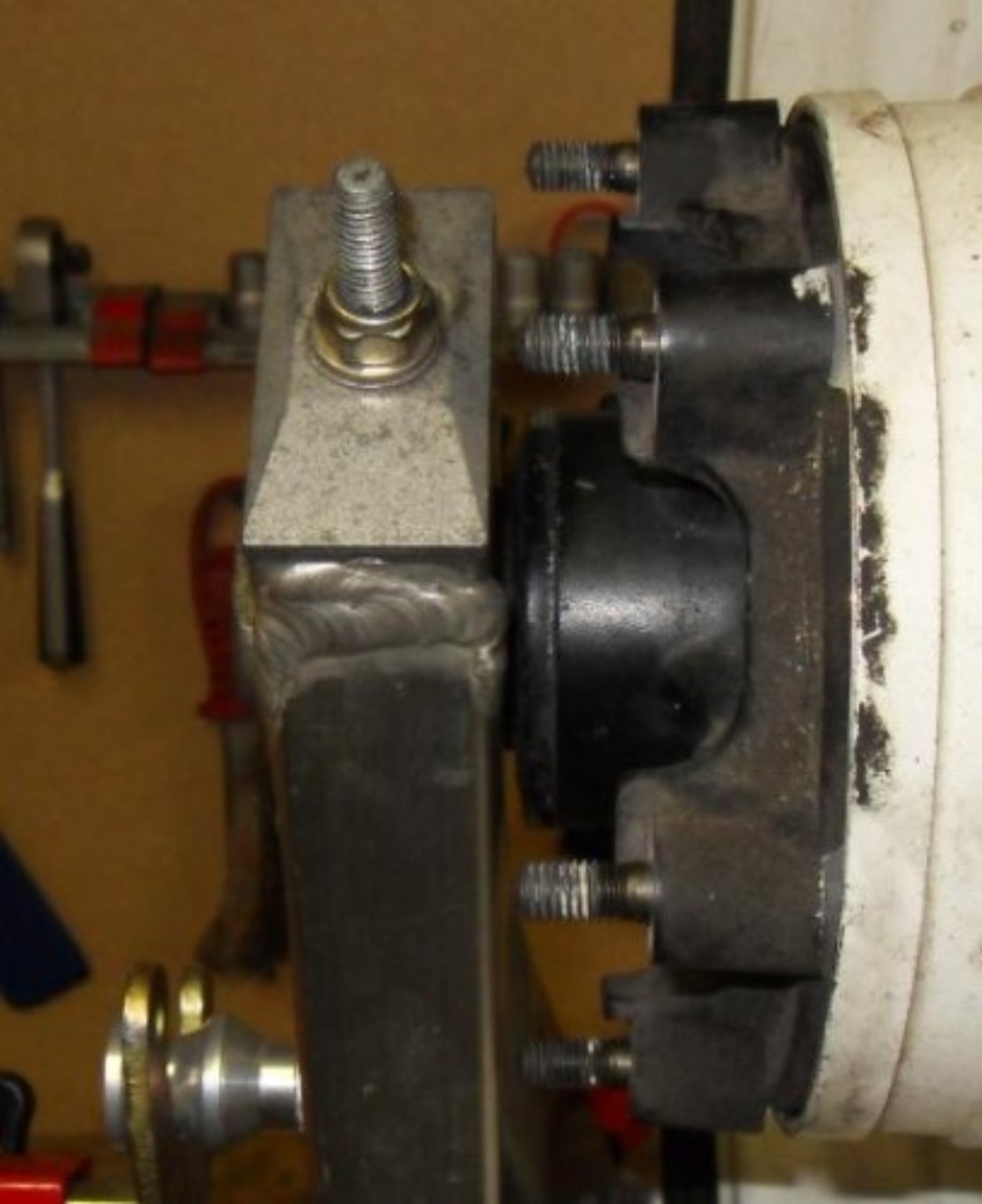

Original holder

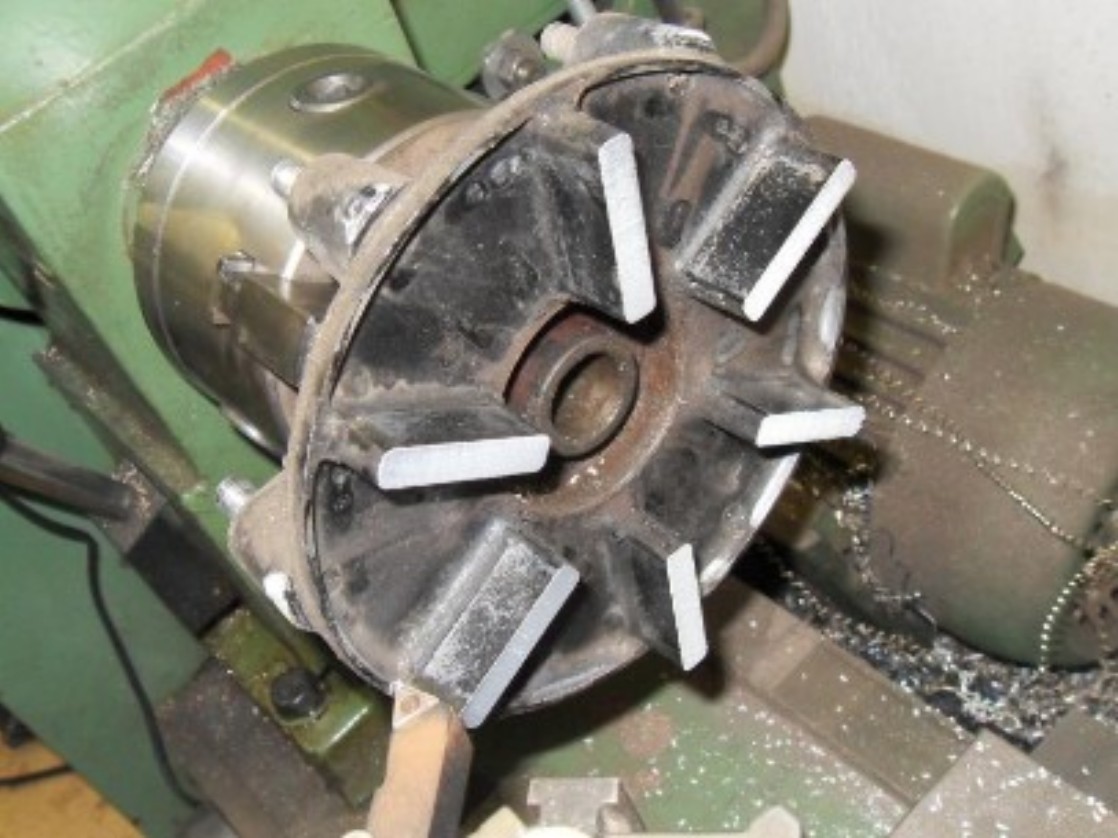

Take 3mm off top

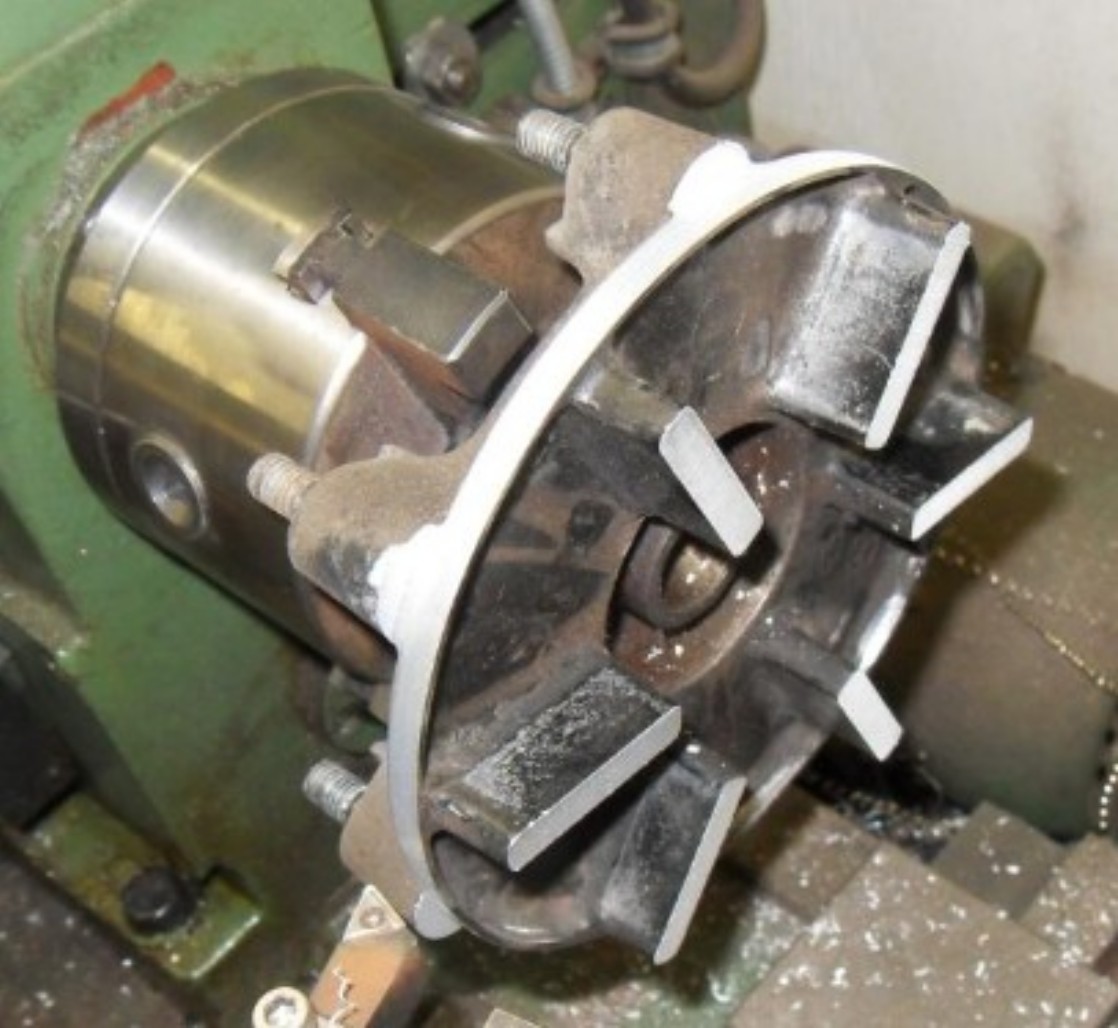

Outside side 3mm off

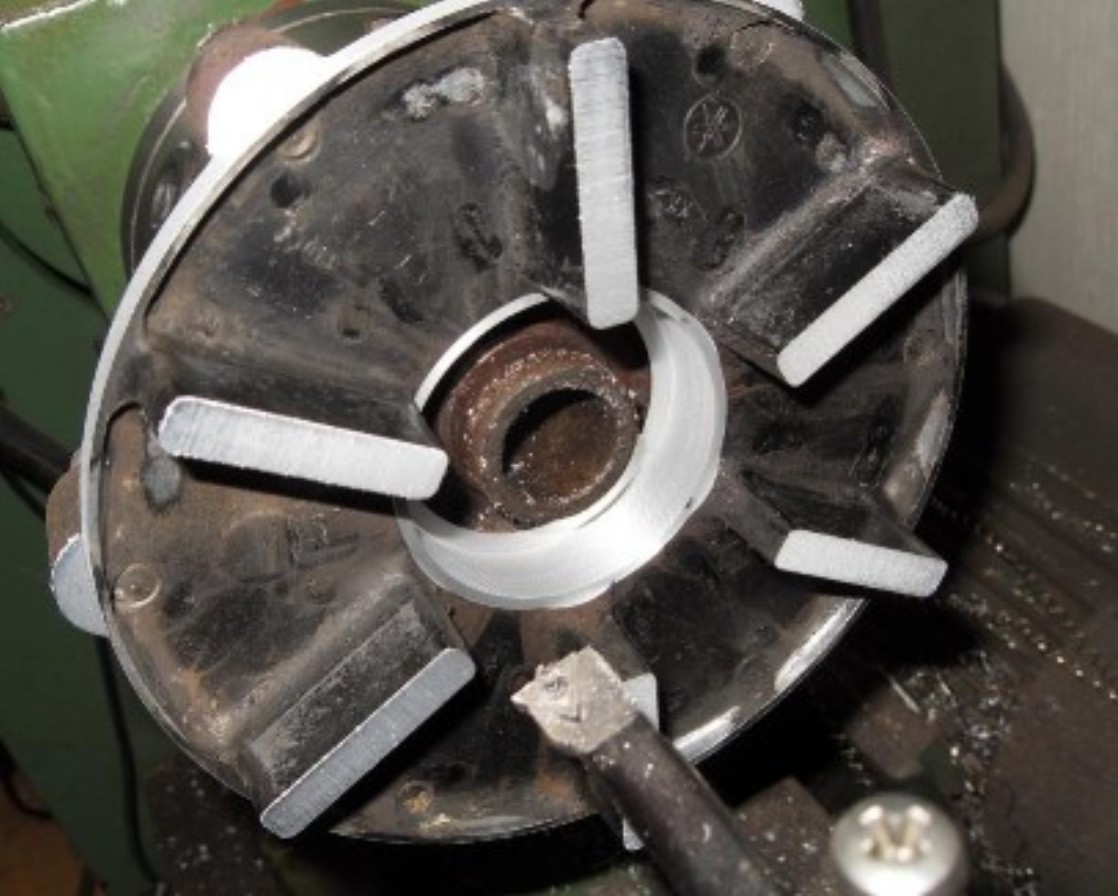

Center 3mm deeper

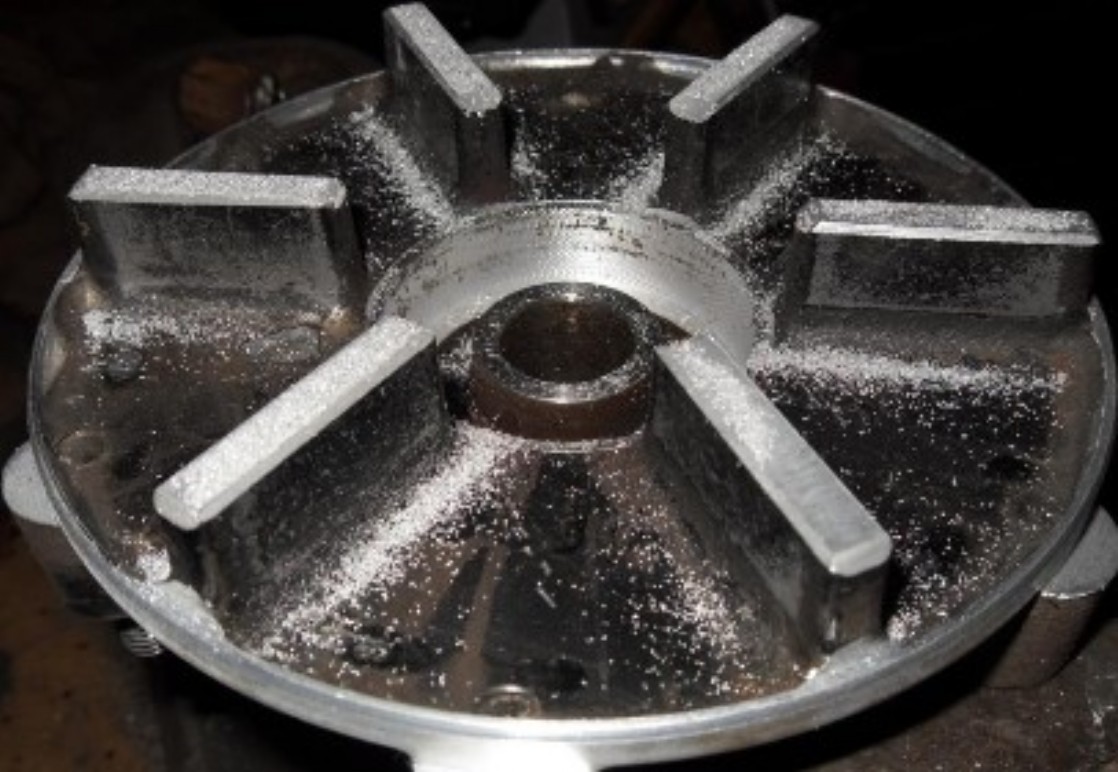

Make 45 degrees seeker points at the tops

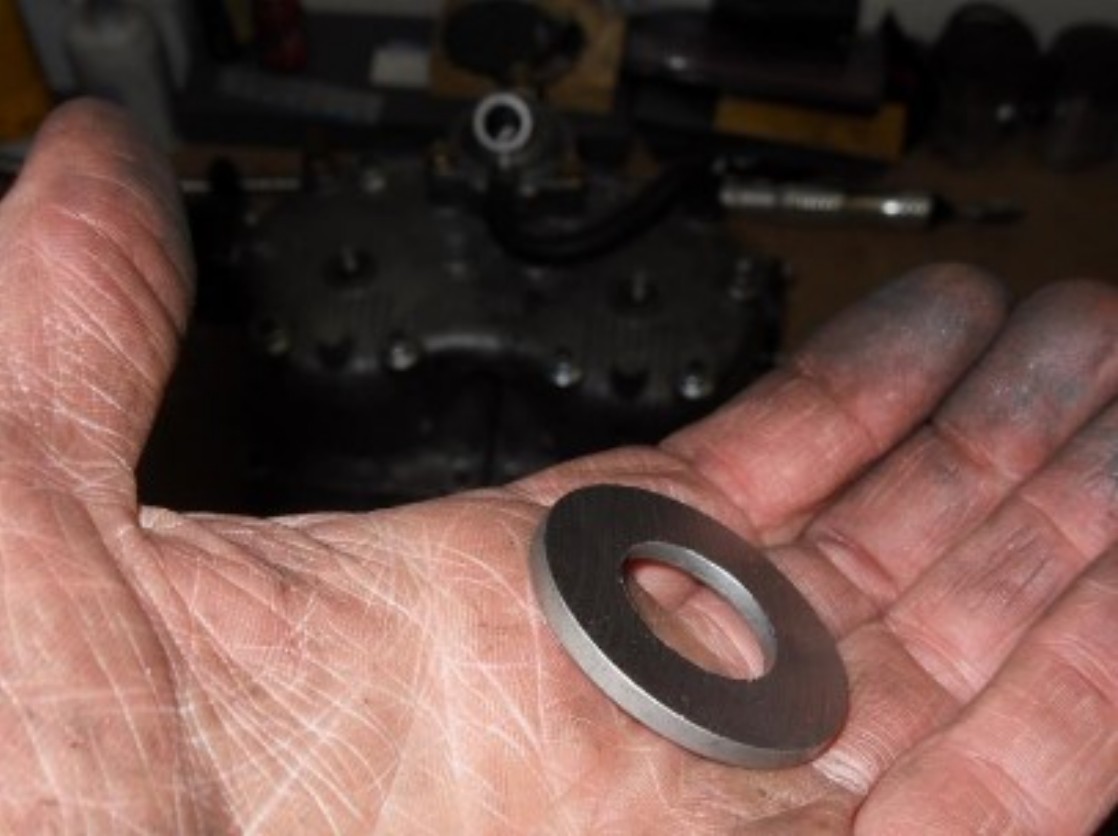

Make a 3,5 mm spacer (20 X 40 X 3,5 MM)

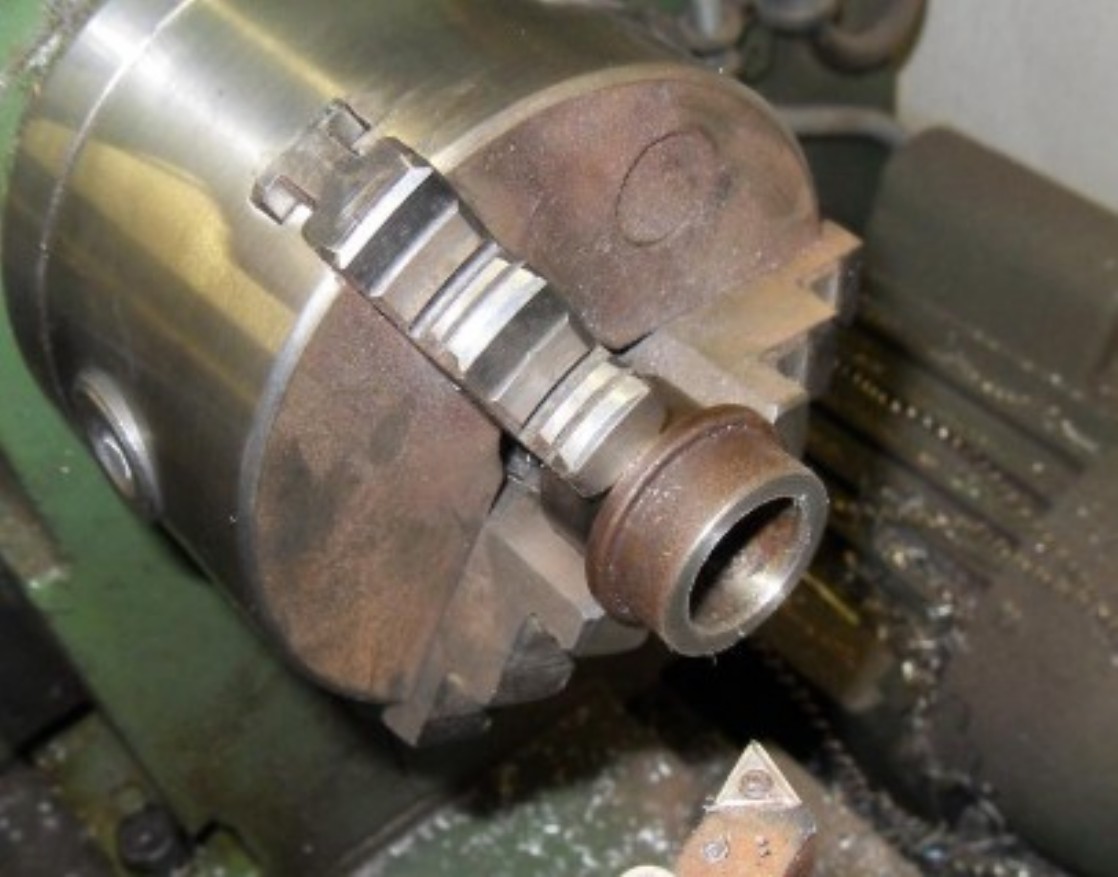

Take 3mm off the sprocket spacer

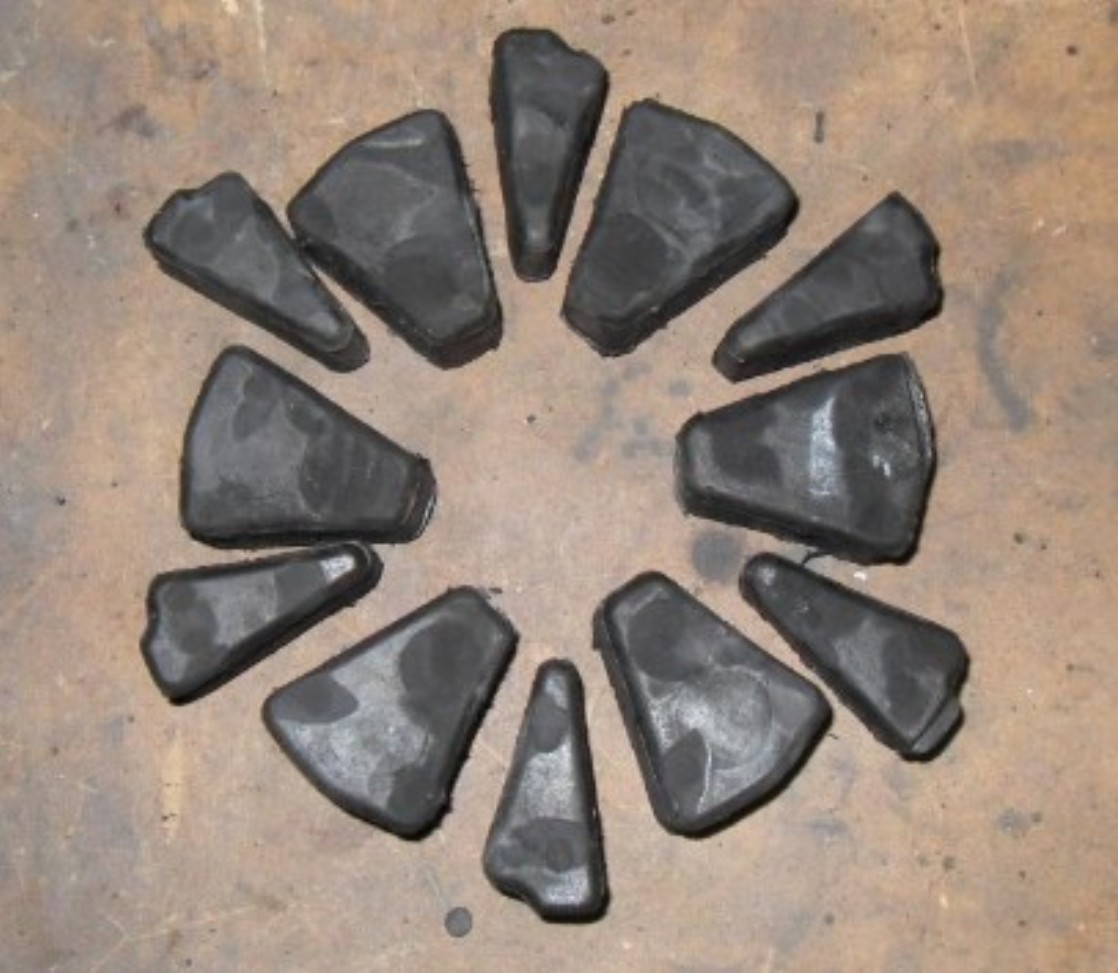

Cut all rubbers loss, and grind a way the notches (top and botom) as they are 1,5mm high (given you the 3mm back)

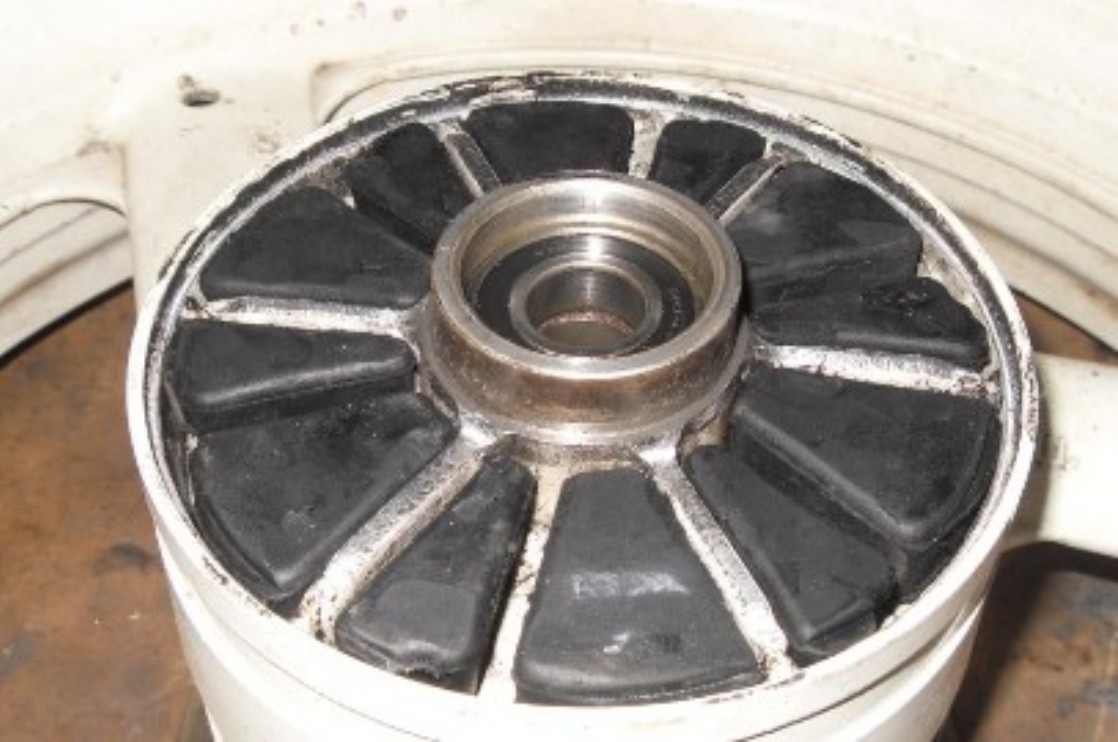

Place them in the fzr wheel (loose of course) and if necessary grind some of the notches at the height of the rubbers

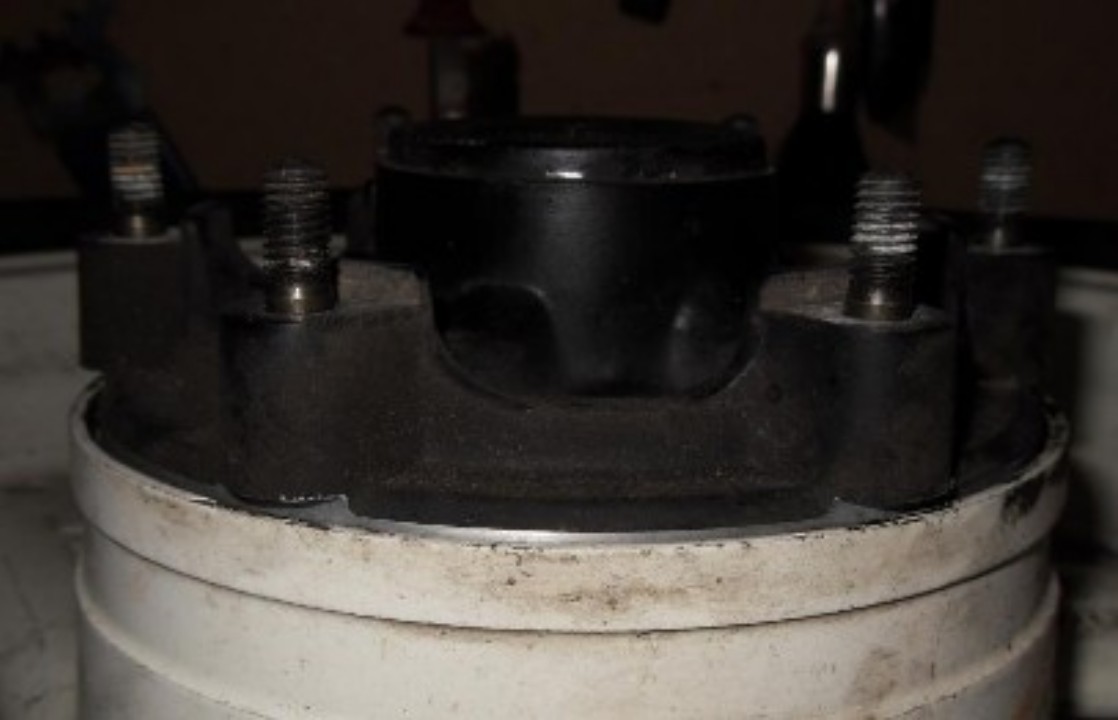

Mount the Sprocket carrier (You can use some silicone on the rubbers to make it glide easier)

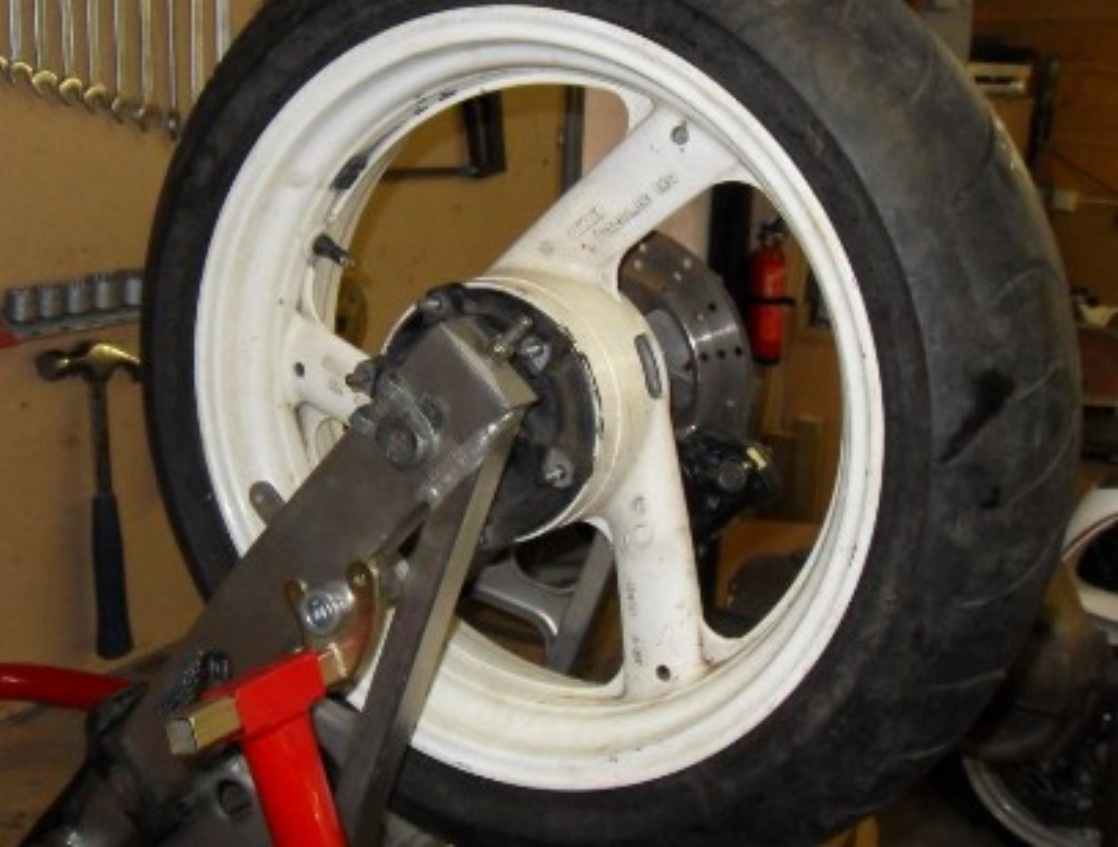

Mounted the whole wheel in the 3ma swingarm

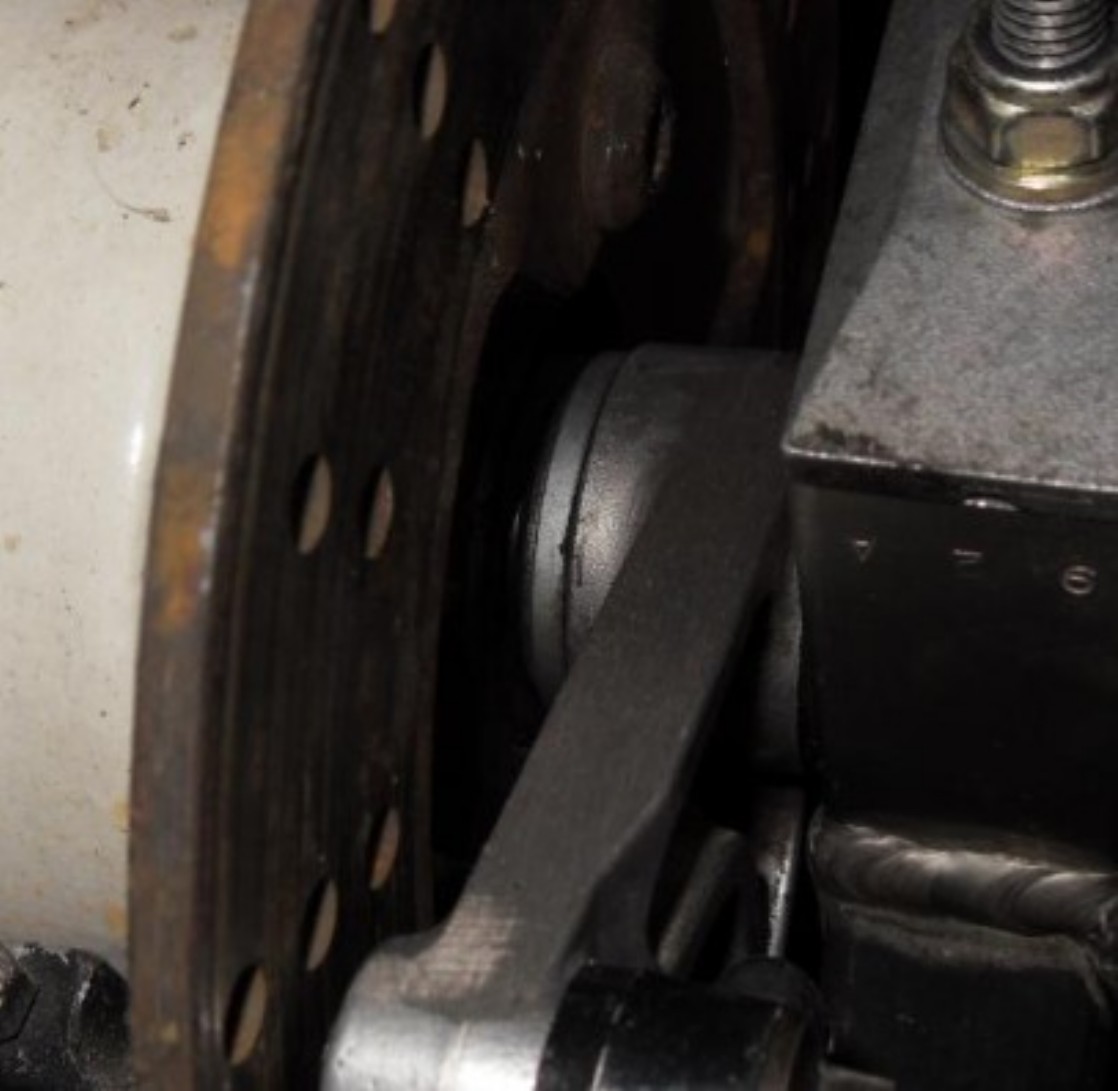

Spacer

Ready

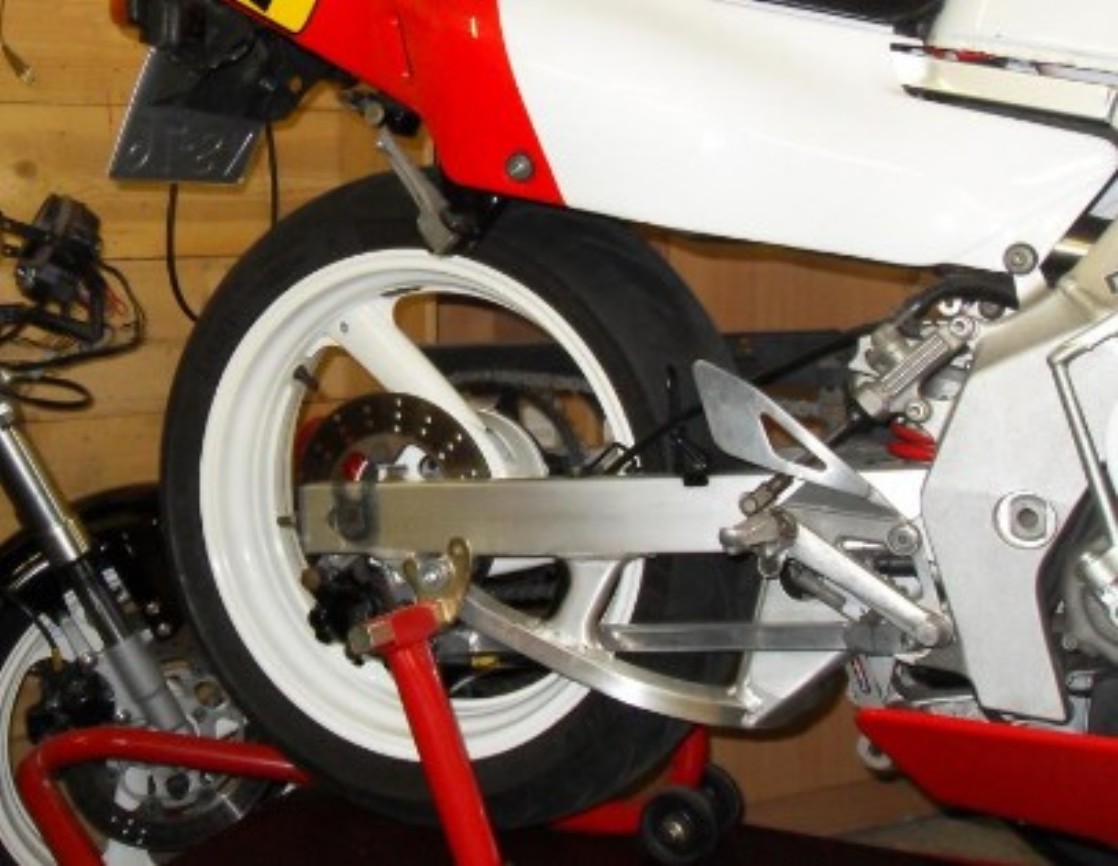

Wheel mounted

Front FZR400RR wheel fits straight in.
