The idea is to make a ignition tester/reader to explore the ignition curves.
And doing some testing at the IC.
The setup will be made like its a working engine.
-rotor
-stator
-pickup
-ypvs motor
-TPS sensor
-airjets
-speedlimeter
The setup will be made like its a working engine.
-rotor
-stator
-pickup
-ypvs motor
-TPS sensor
-airjets
-speedlimeter
(2-11-2013)
Starting point of the home build ignition tester/reader

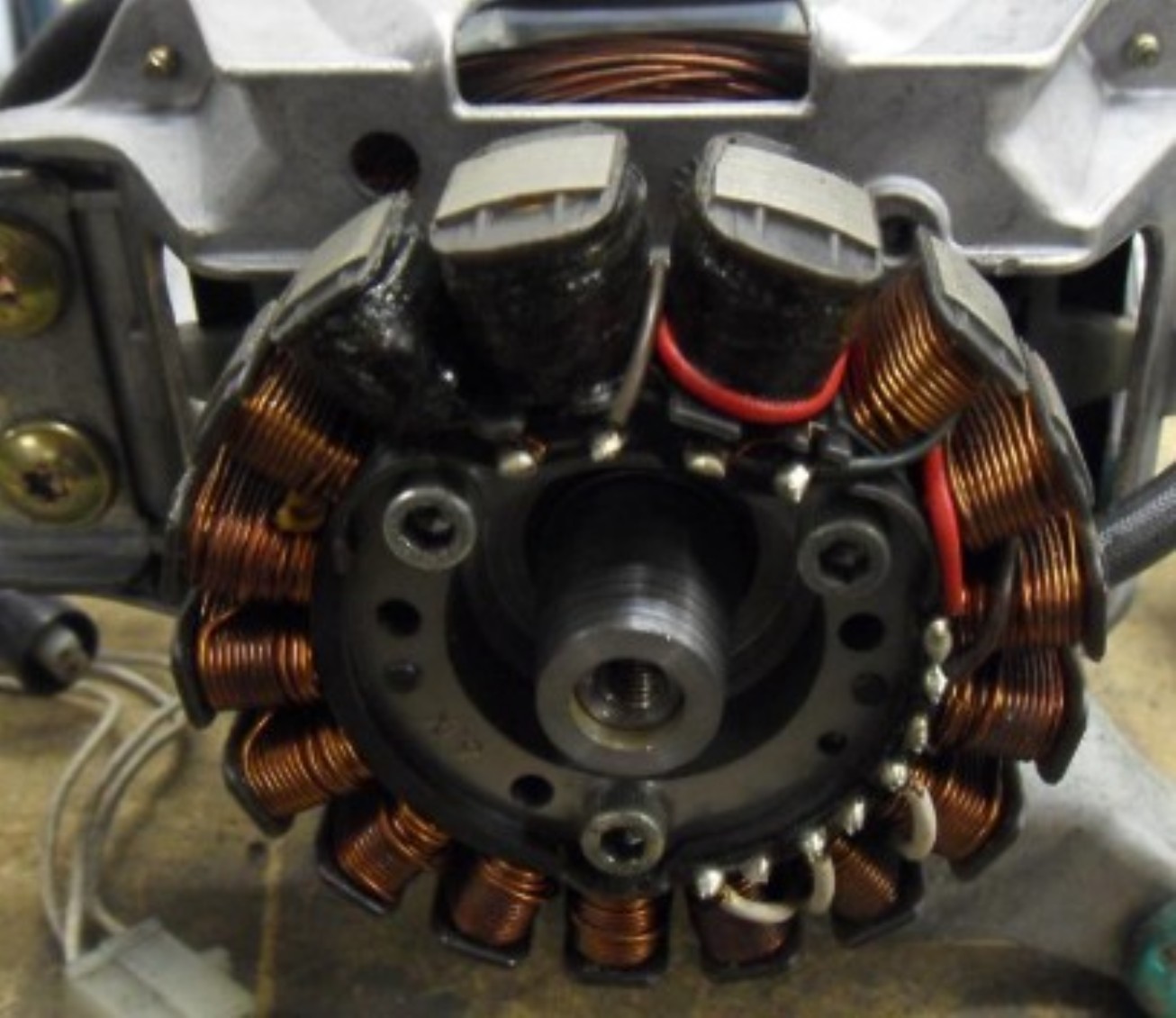

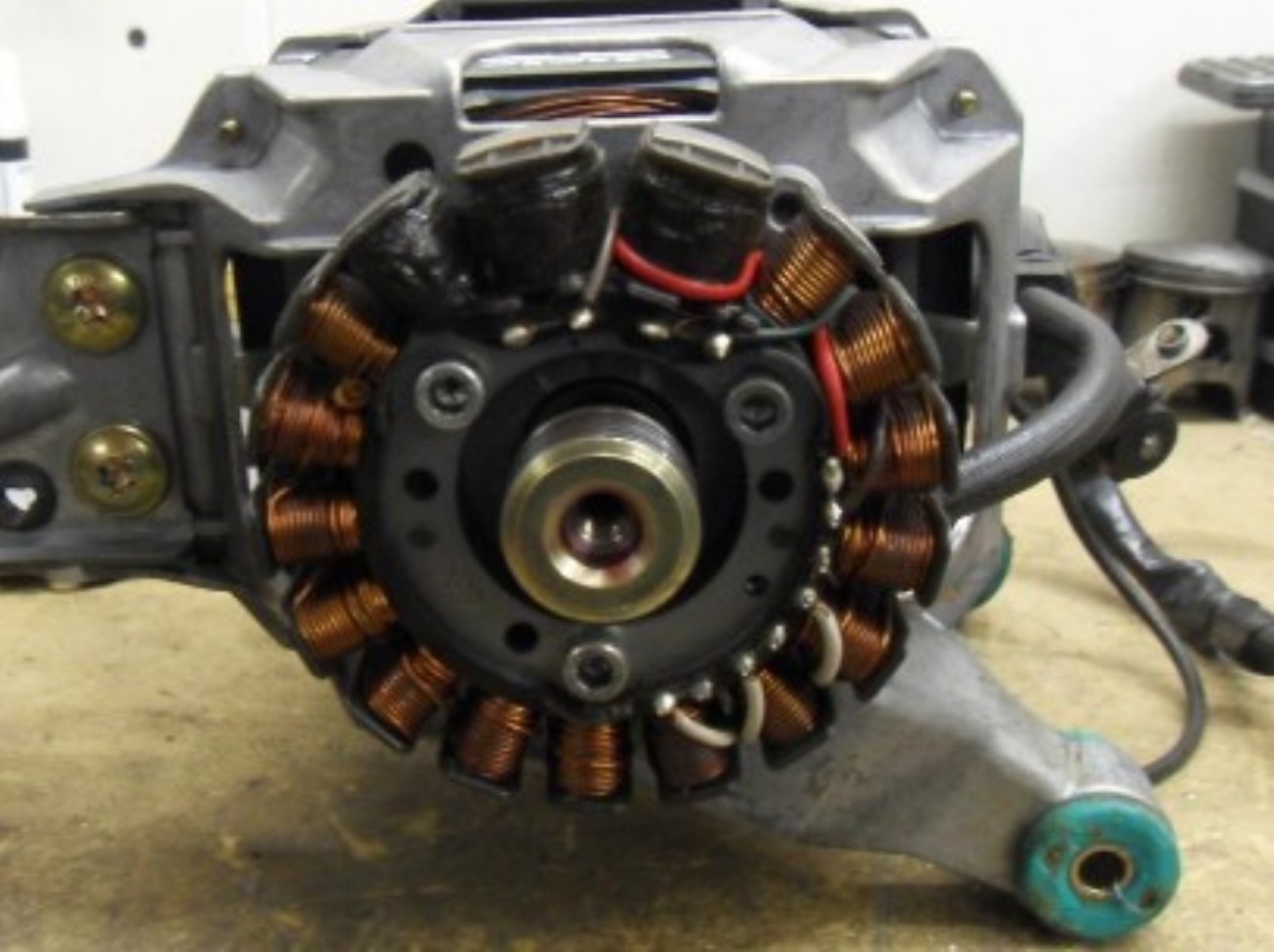

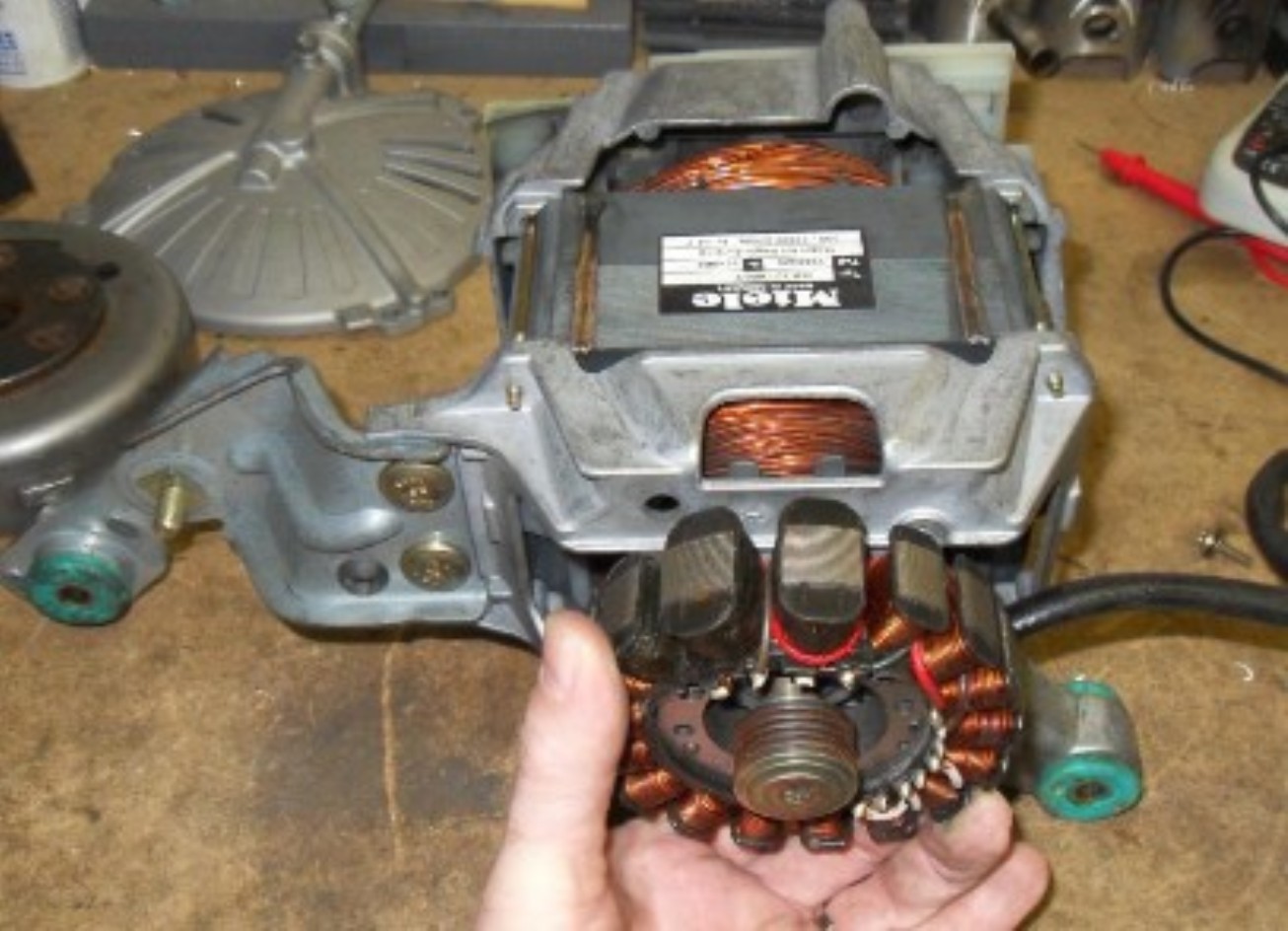

The stator will be mounted on the engine with the flywheel.
Also pickup will be mounted on stock location
Also pickup will be mounted on stock location
Hopefully this timing light will do the job.

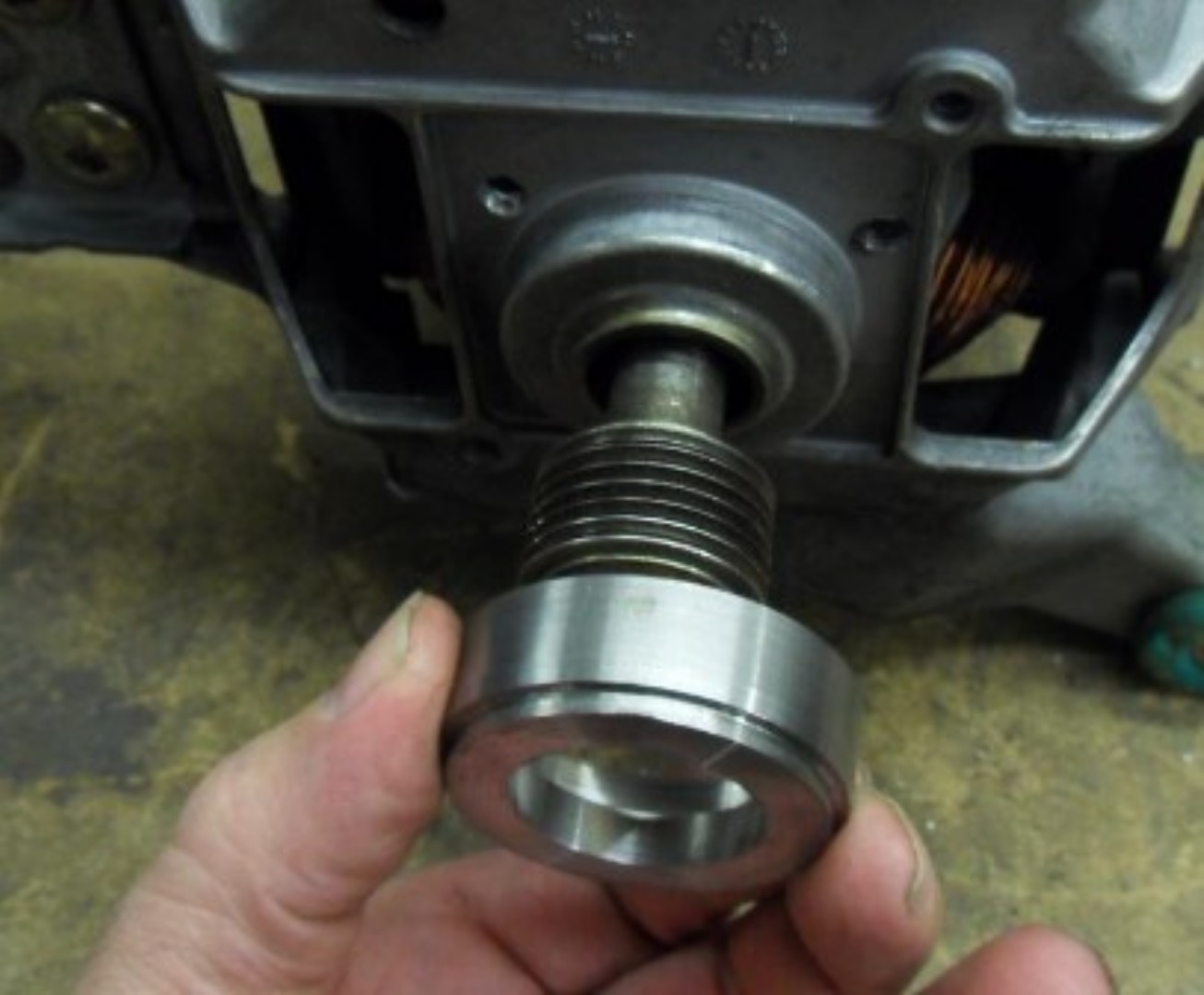

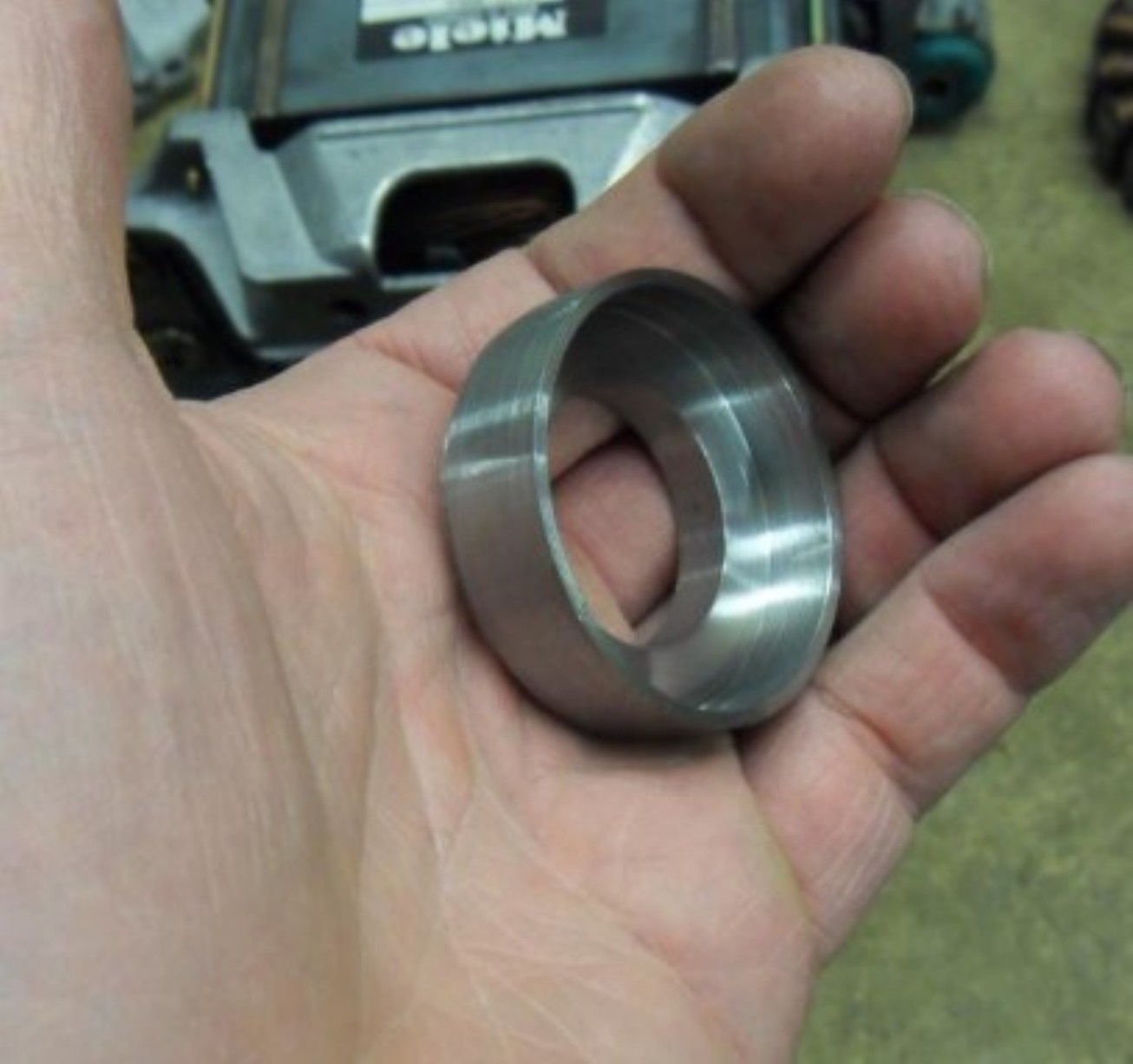

Made a adaptor/center ring to center the rotor

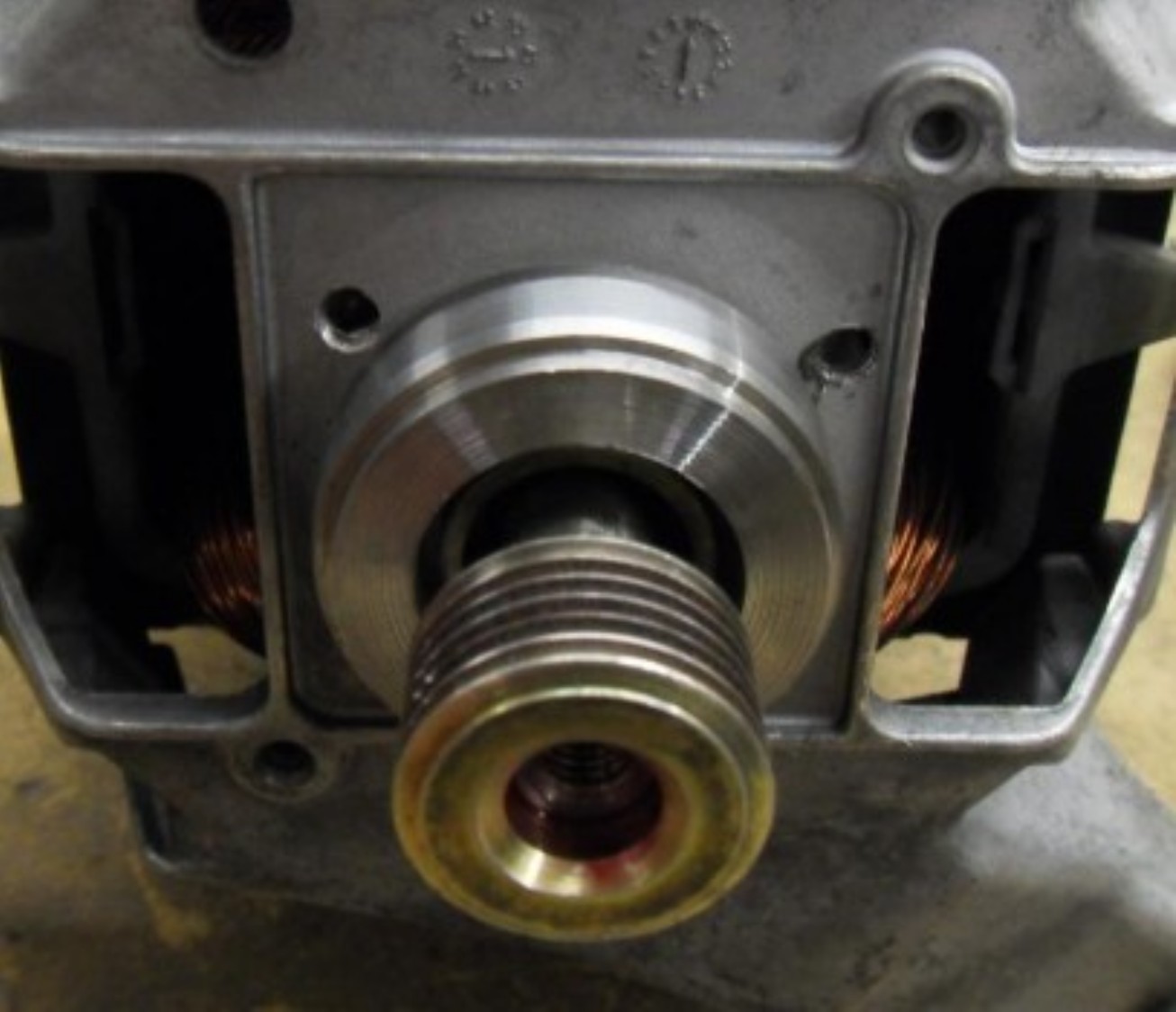

Her you have the ring mounted.
Making the bearing diameter usable for the rotor diameter also the rotor will be centered
Making the bearing diameter usable for the rotor diameter also the rotor will be centered

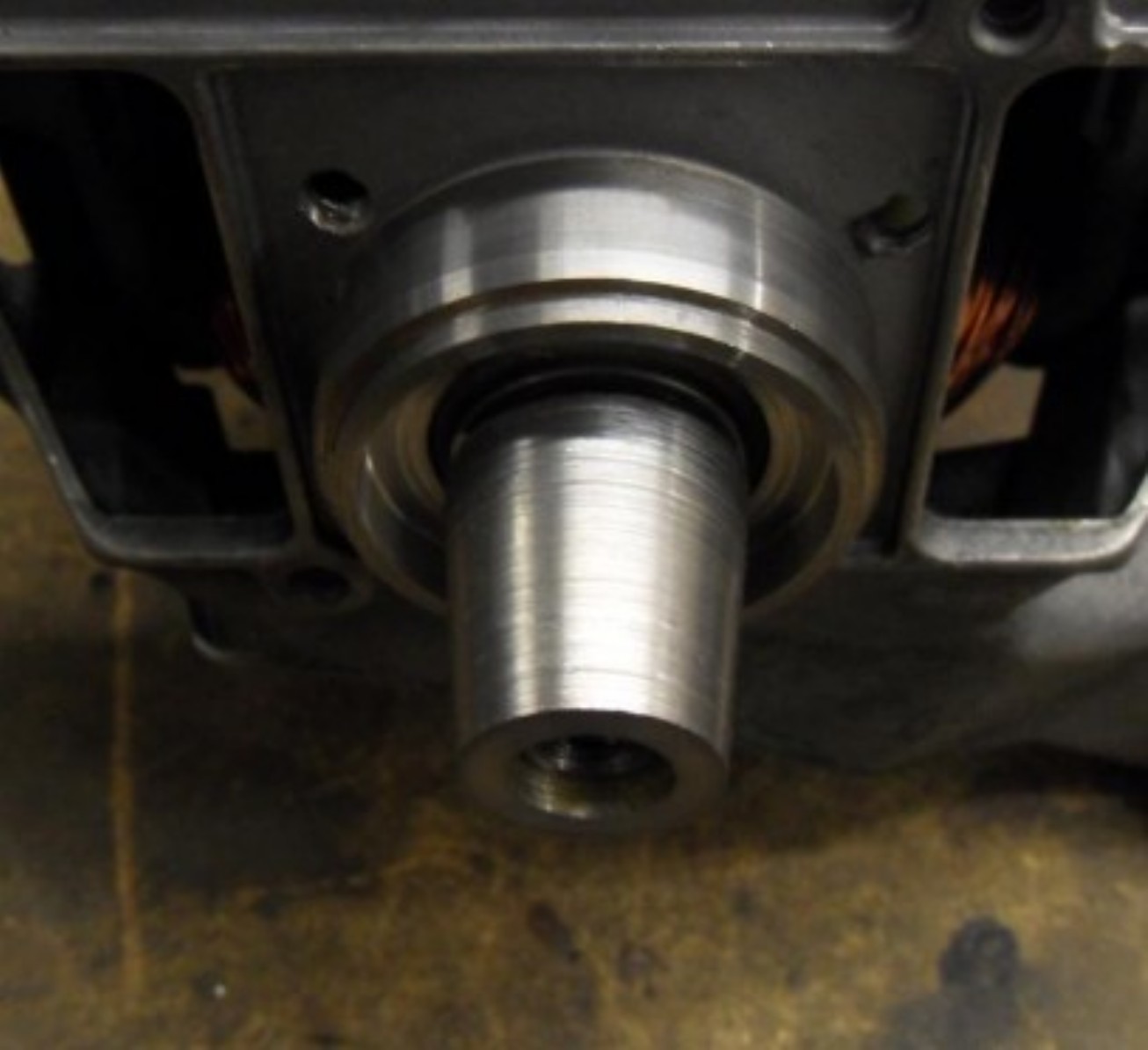

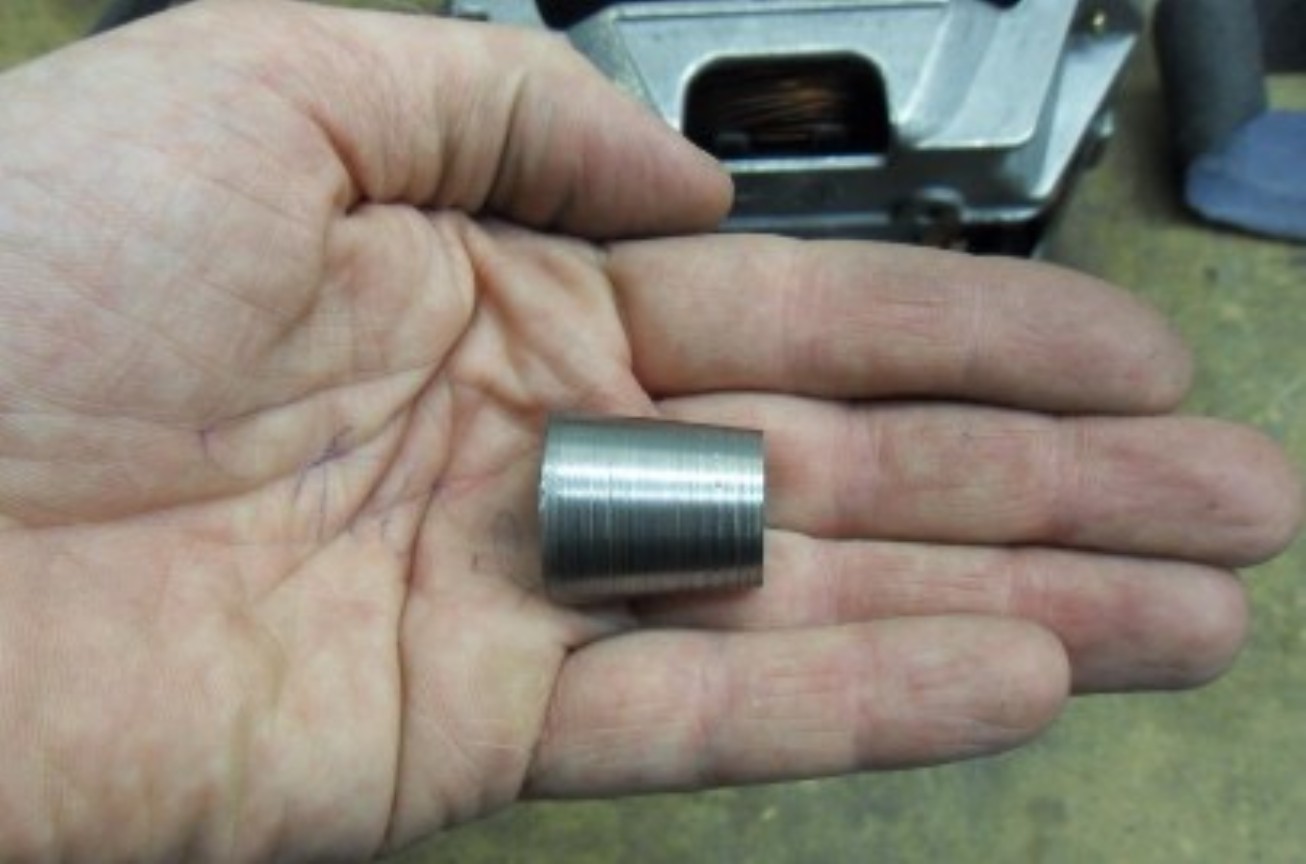

Making the adaptor/cone for the flywheel
(16-11-2013)

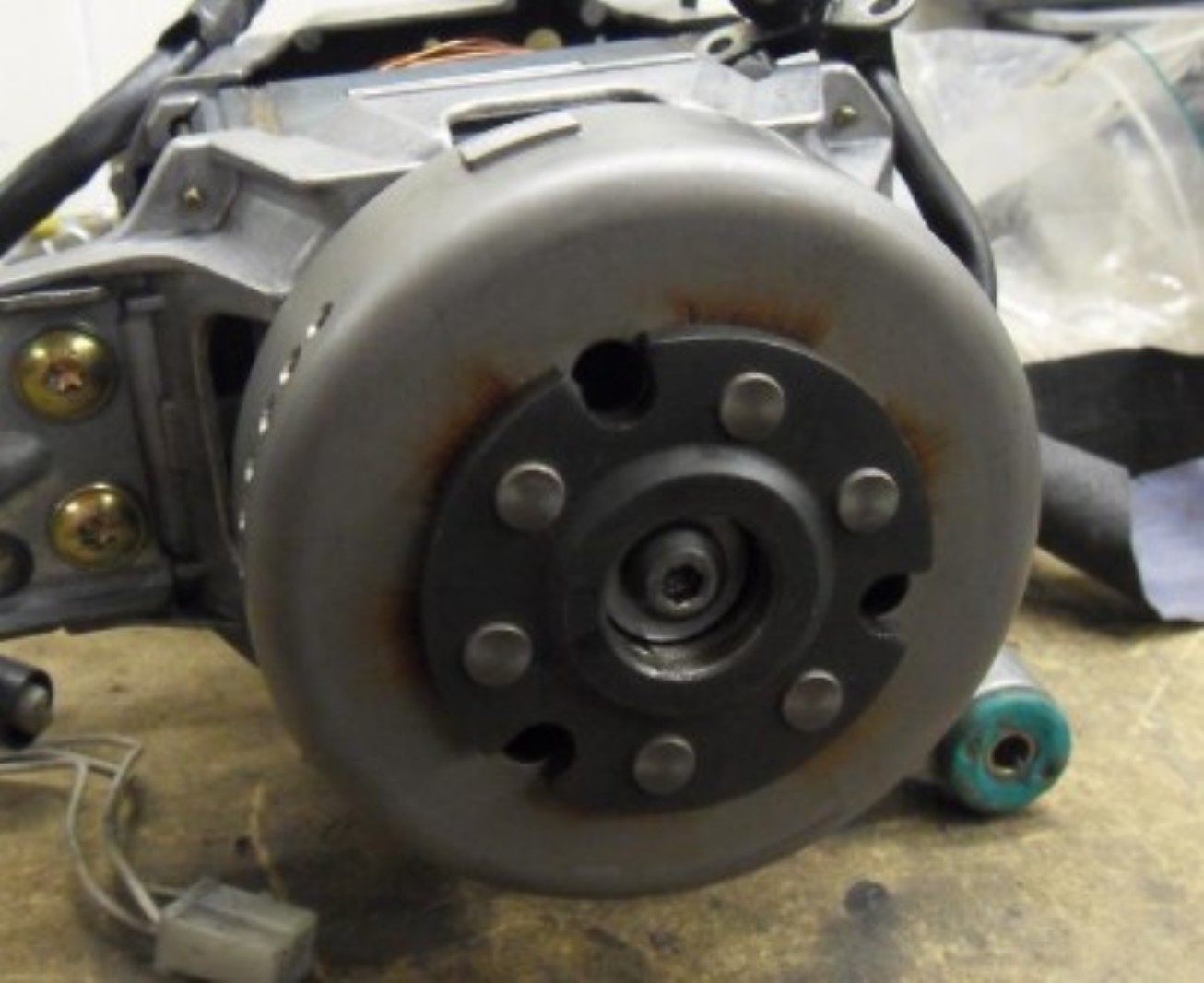

Test setup ready
