Here the scope shows us that there are four curves stored in the 3MA CDI
The movement of the marked point happens when turning at the TPS sensor.
The movement of the marked point happens when turning at the TPS sensor.
Measured the TPS sensor voltage when its jumping to another curve.
This could be handy if you want to setup the TPS sensor.
This could be handy if you want to setup the TPS sensor.

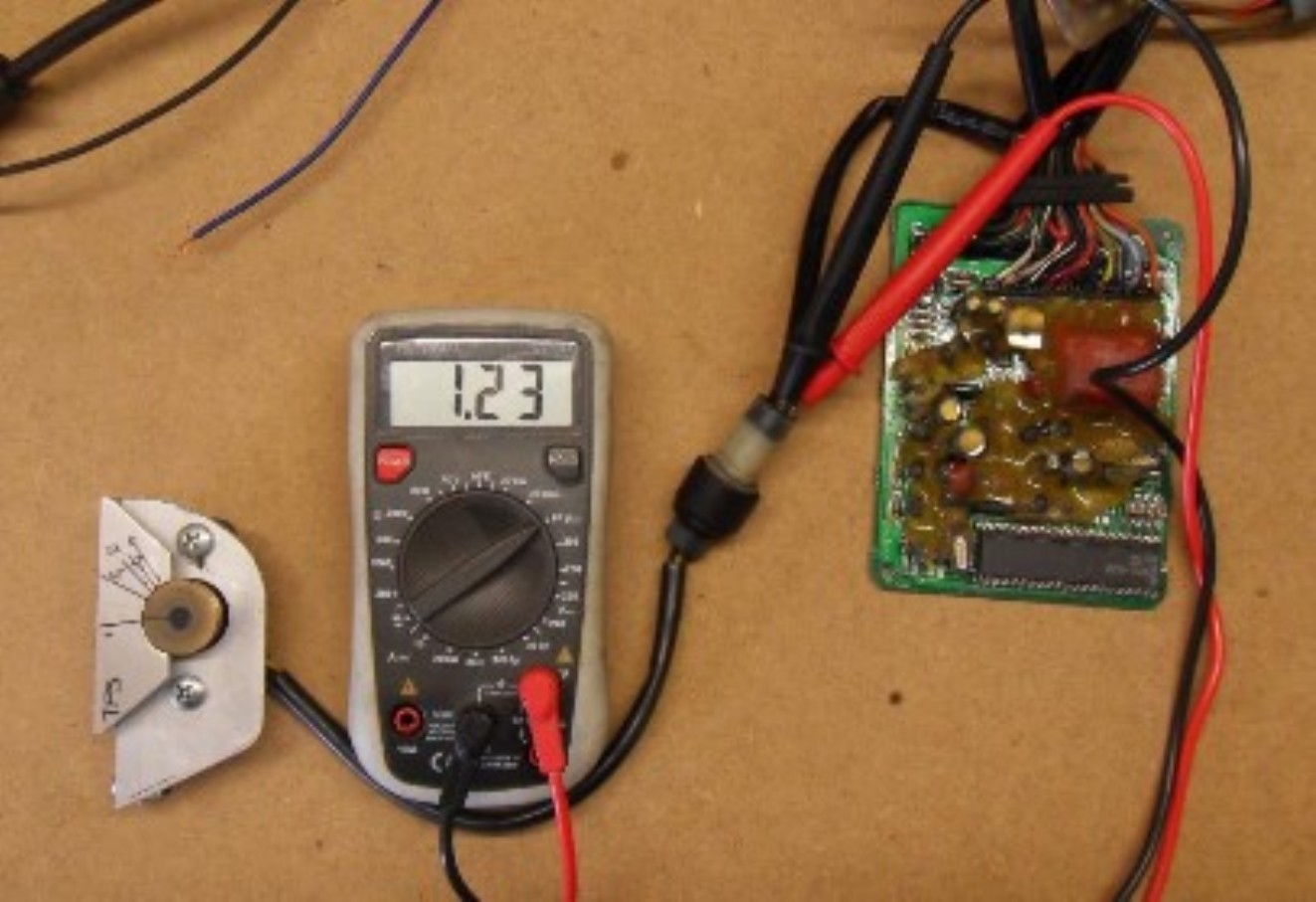

Measured voltage between the Blue and Yellow wire. (ignition set on) Curve
1.25V to 2.00V Curve 1/2 till 1
2.00V to 2.75V Curve 1/4 till 1/2
2.75V to 3.75V Curve 1/8 till 1/4
3.75V to 4.50V Curve 0 till 1/8
Wire location and color.

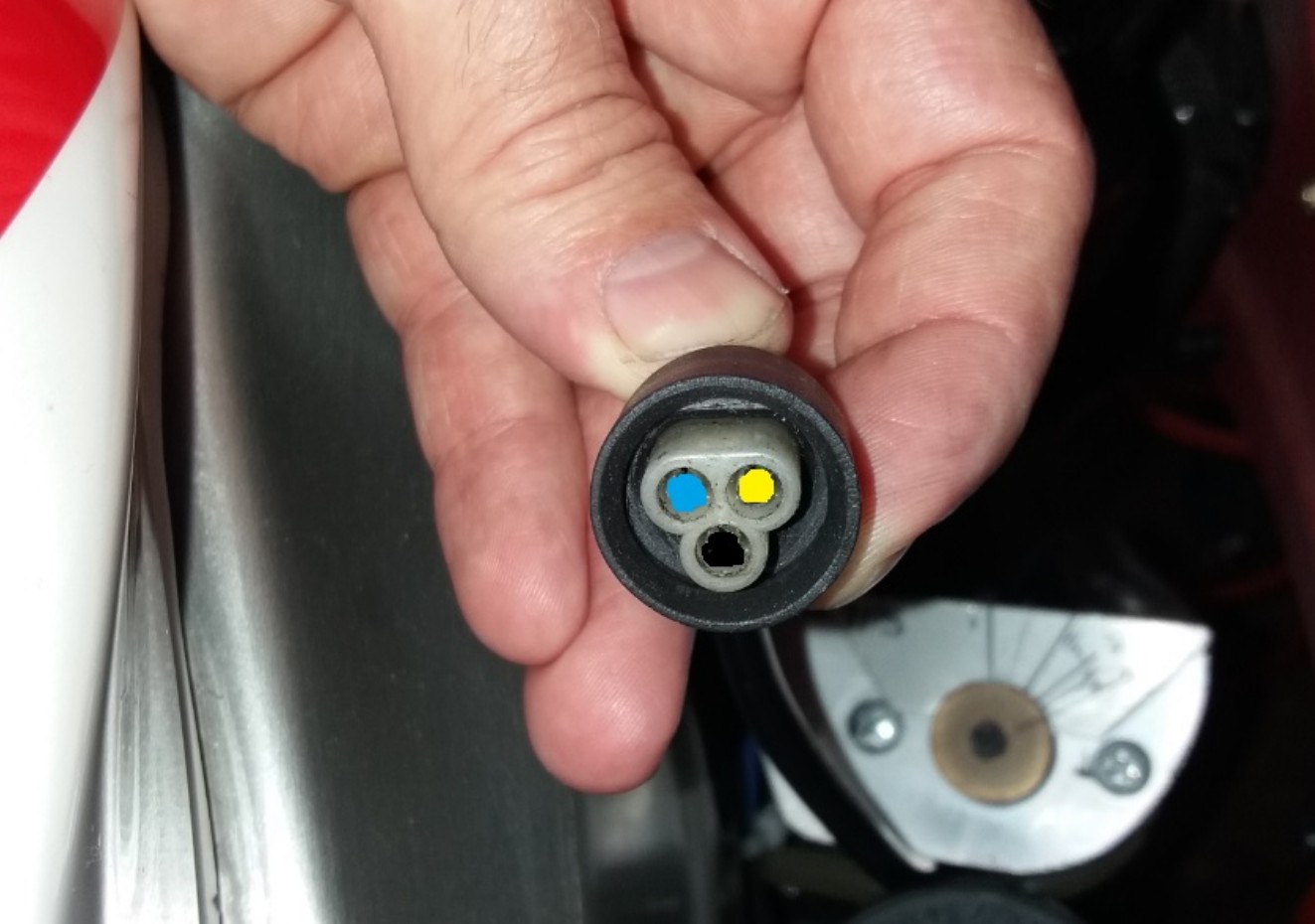

TPS connector (looking at front)
Flat part on connector located above (top)
(From Left to right)
Blue - yellow
Black
Flat part on connector located above (top)
(From Left to right)
Blue - yellow
Black
Female pin's on TPS

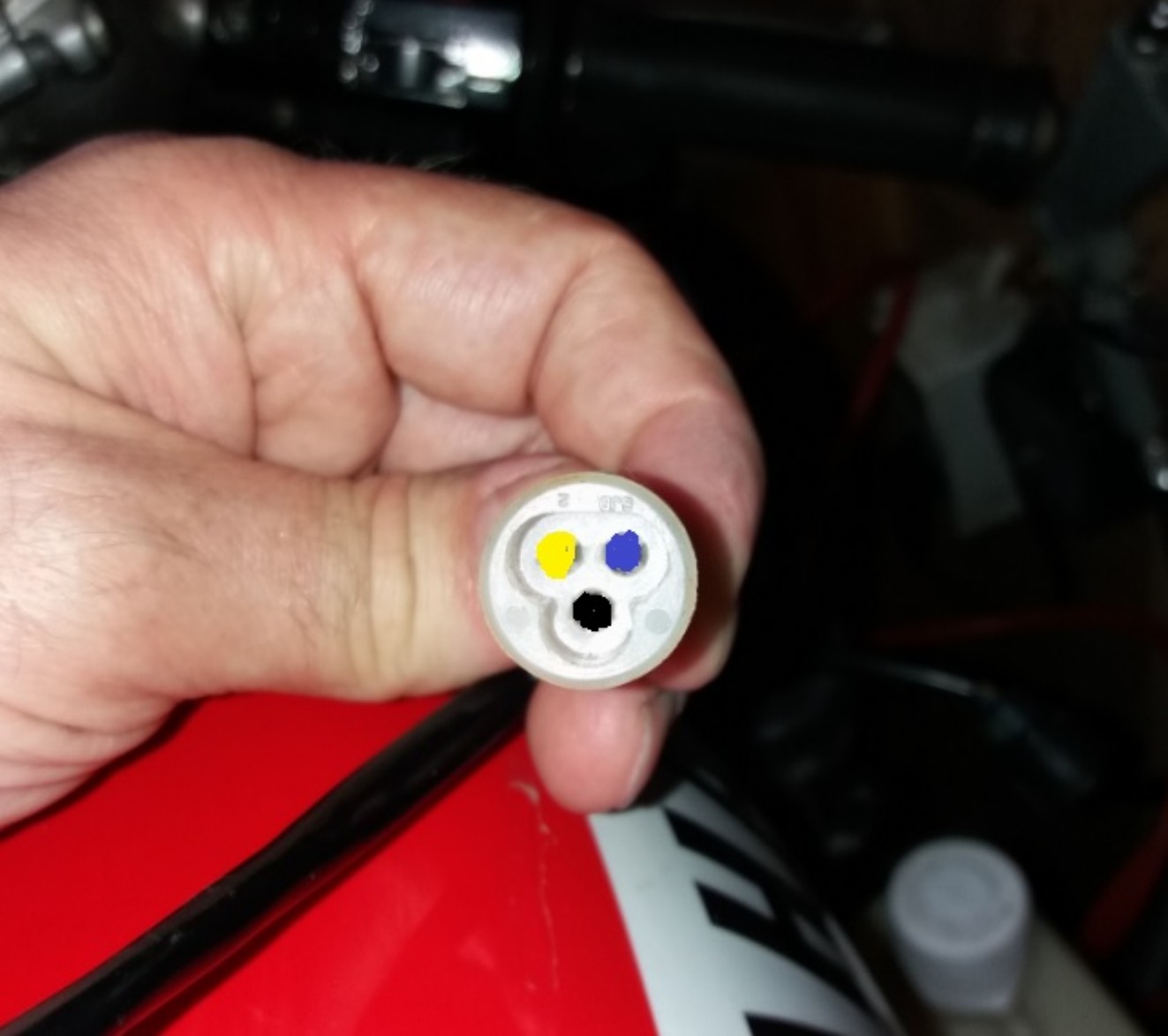

CDI TPS connector (looking at front)
Flat part on connector located above (top)
(From Left to right)
Yellow - Blue
Black
Flat part on connector located above (top)
(From Left to right)
Yellow - Blue
Black
Male pin's on CDI unit

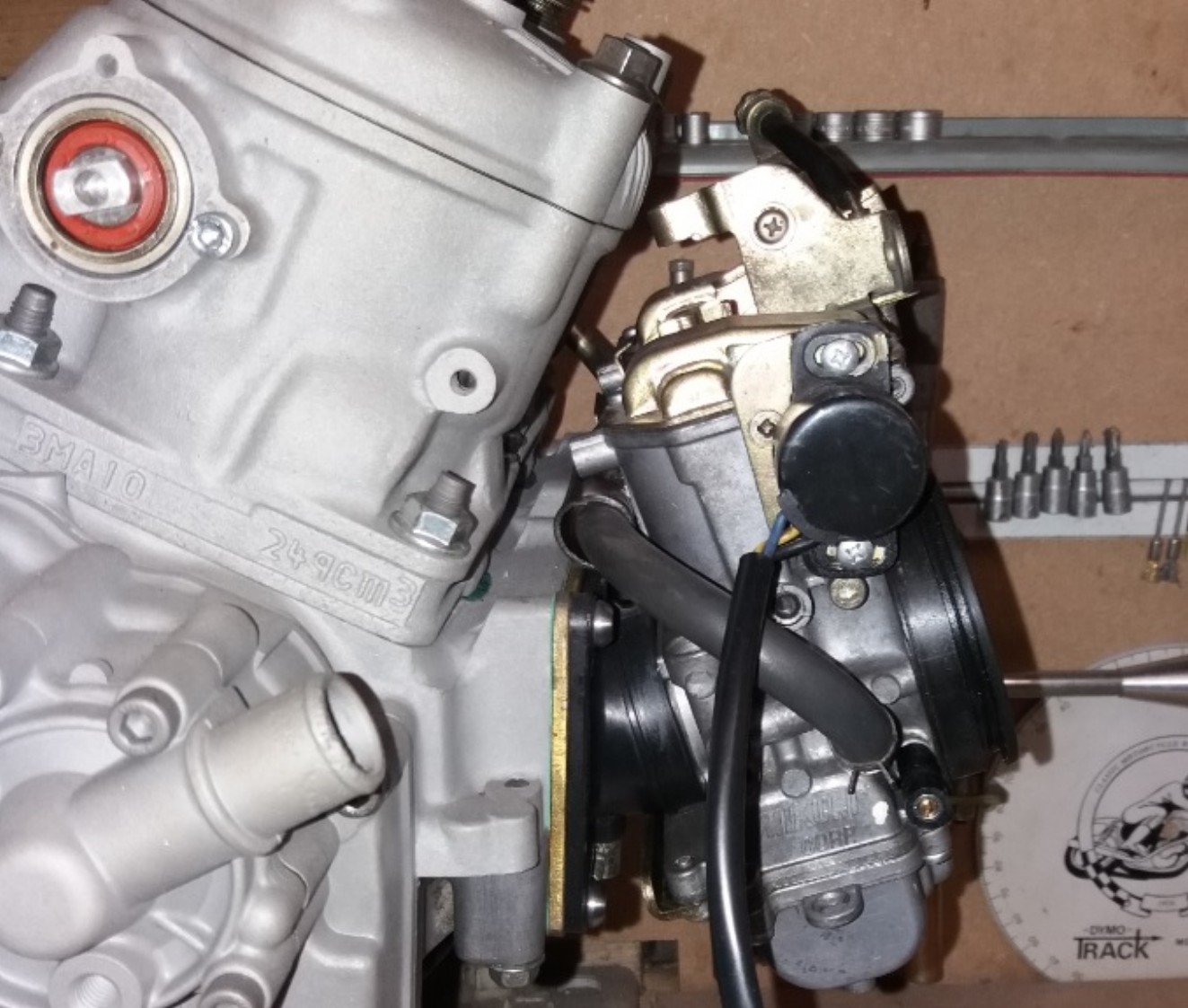

Location of the TPS sensor.
Mostly they are a touch out off the middle.
You can check if its correct ones it is mounted by measuring the voltage.
Mostly they are a touch out off the middle.
You can check if its correct ones it is mounted by measuring the voltage.
Important, TPS wires facing the cylinder
