Track bike 3 > More details

Replacing the seals

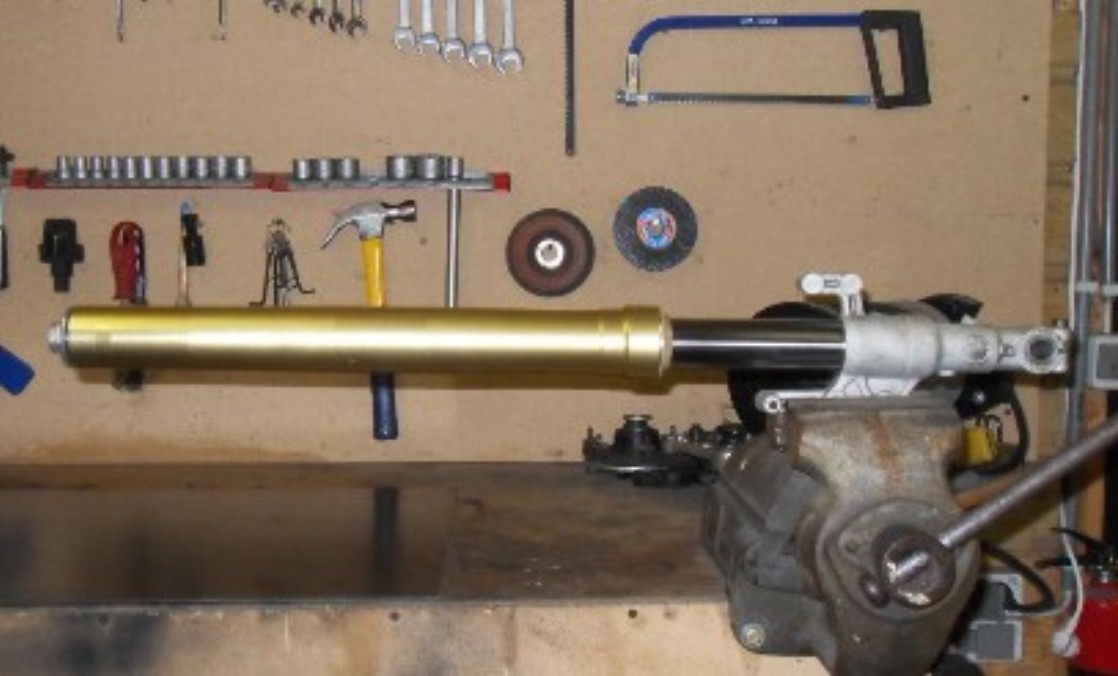

Starting point

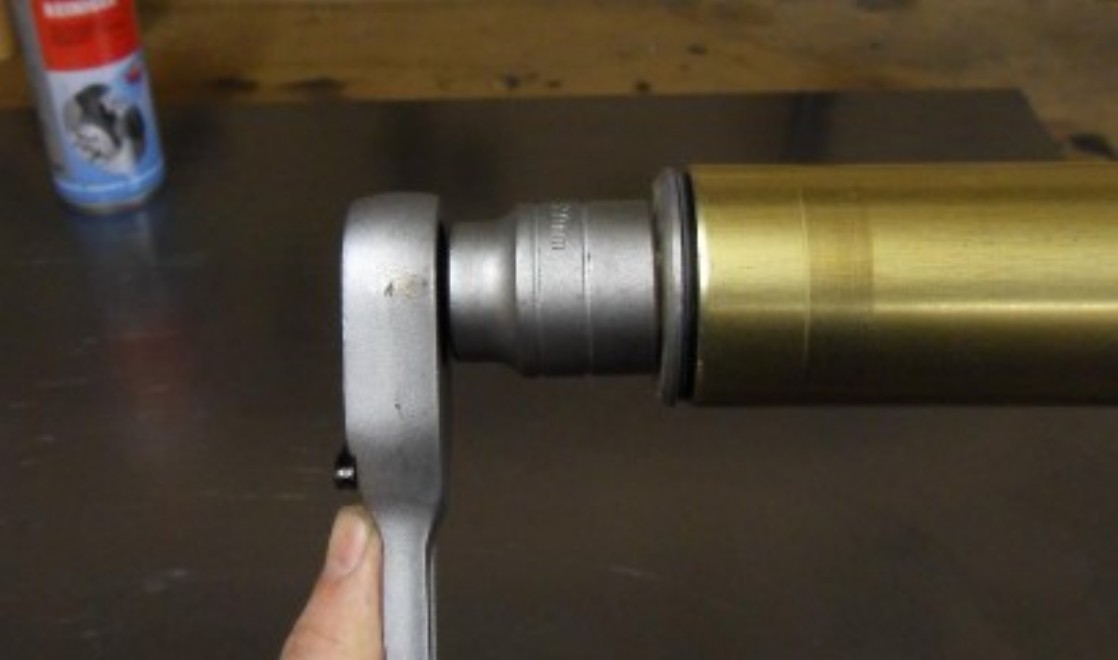

Remove Cap bold

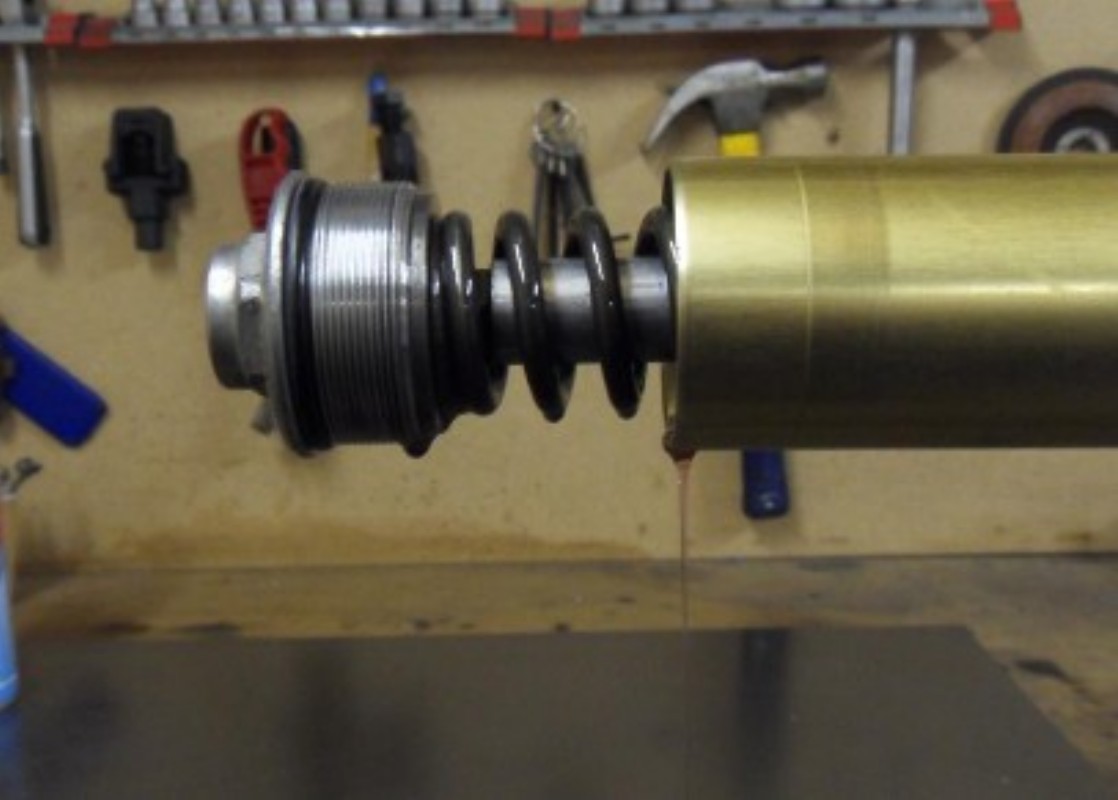

After opening, remaining oil will drain a bid.

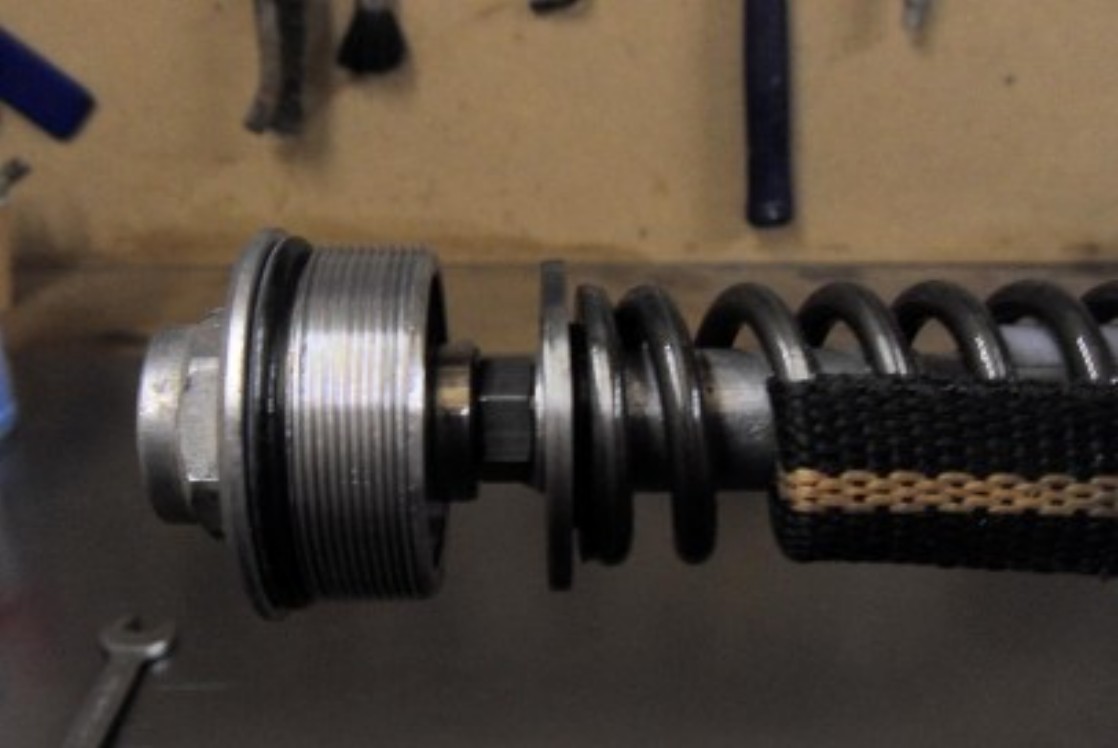

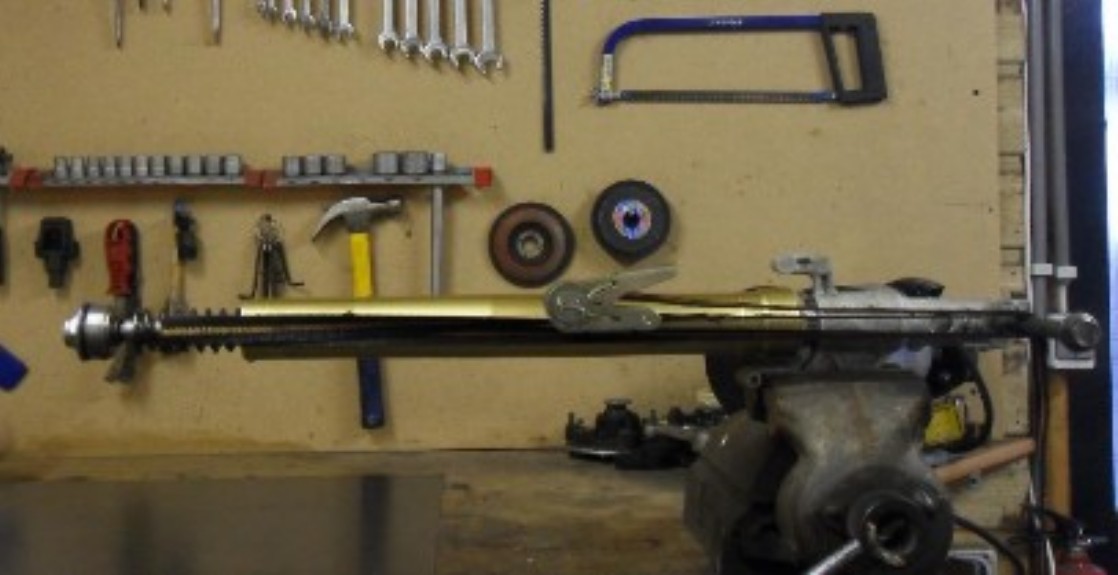

Use a strap to compress the spring a bid to get room for the spanner

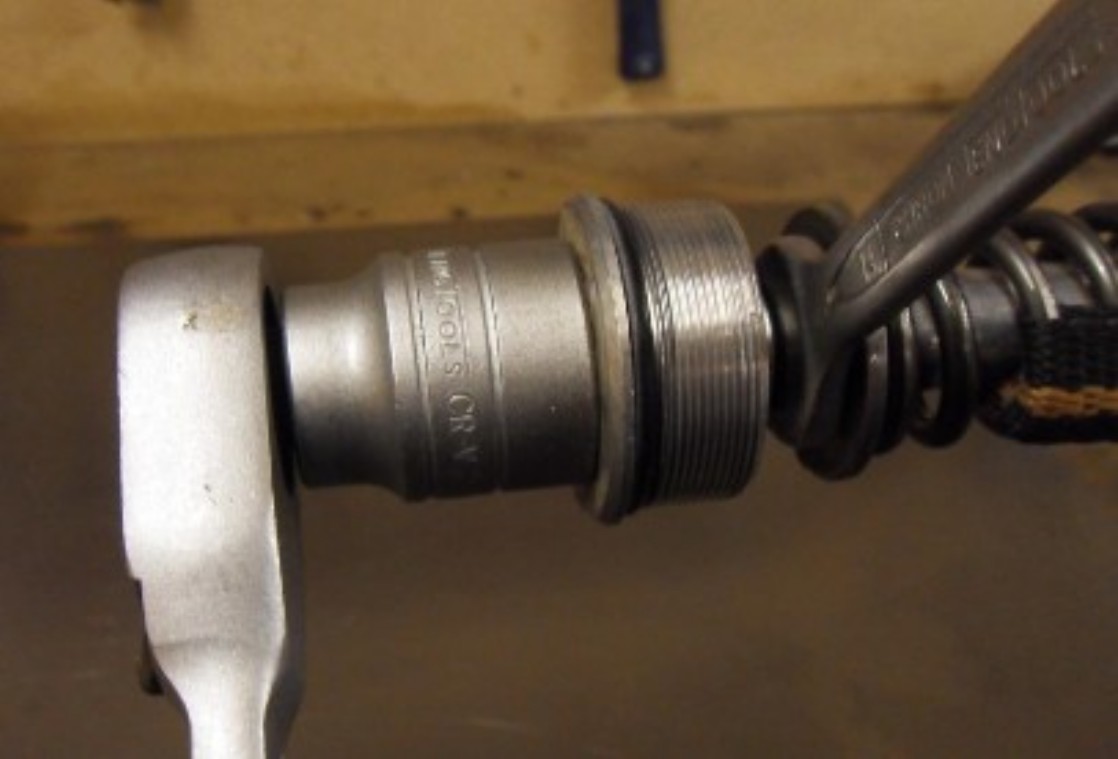

Turn the Cap lose

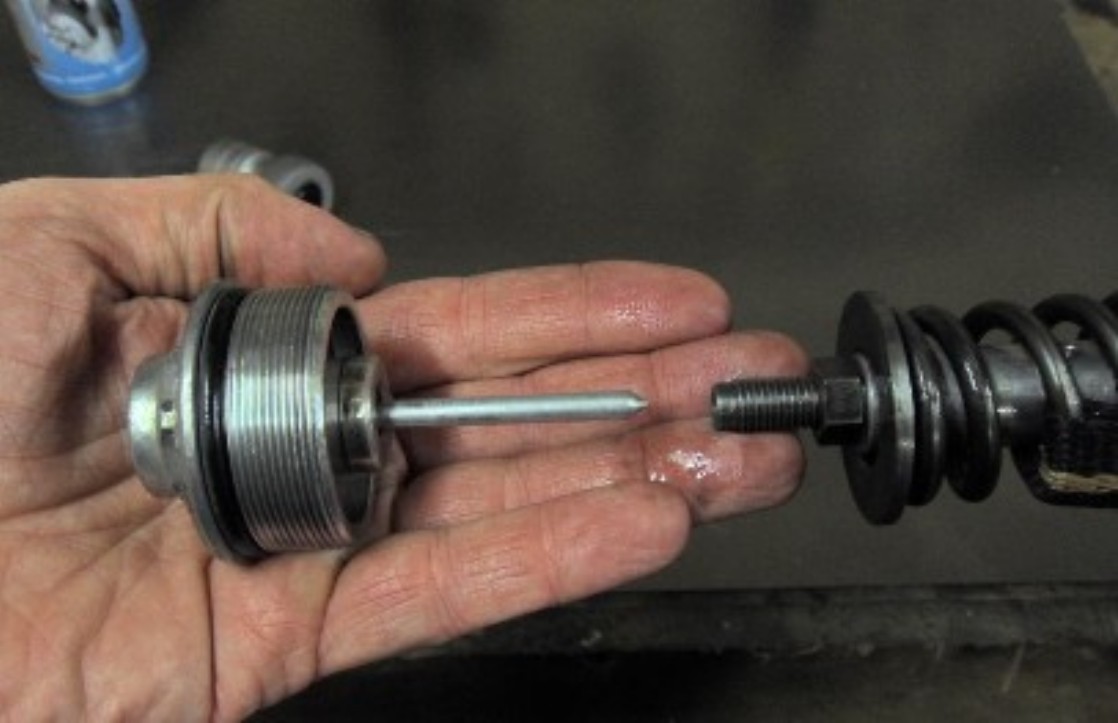

Remove the cap and spring

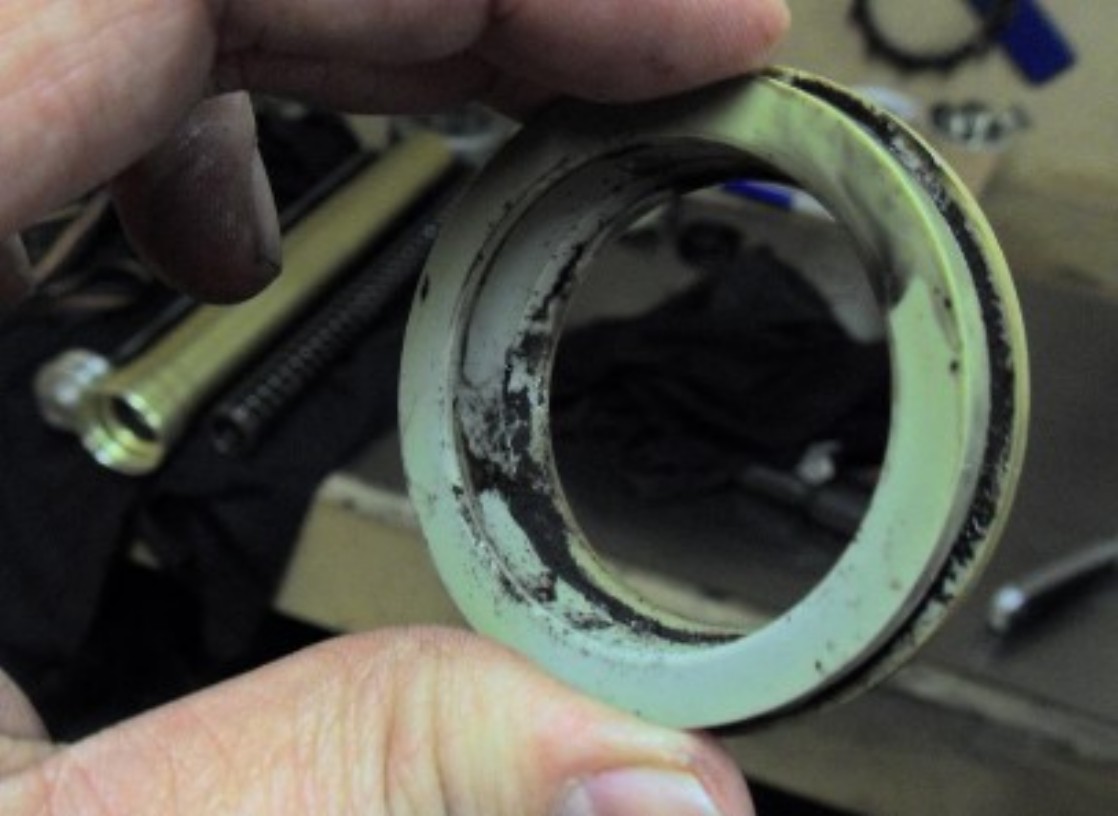

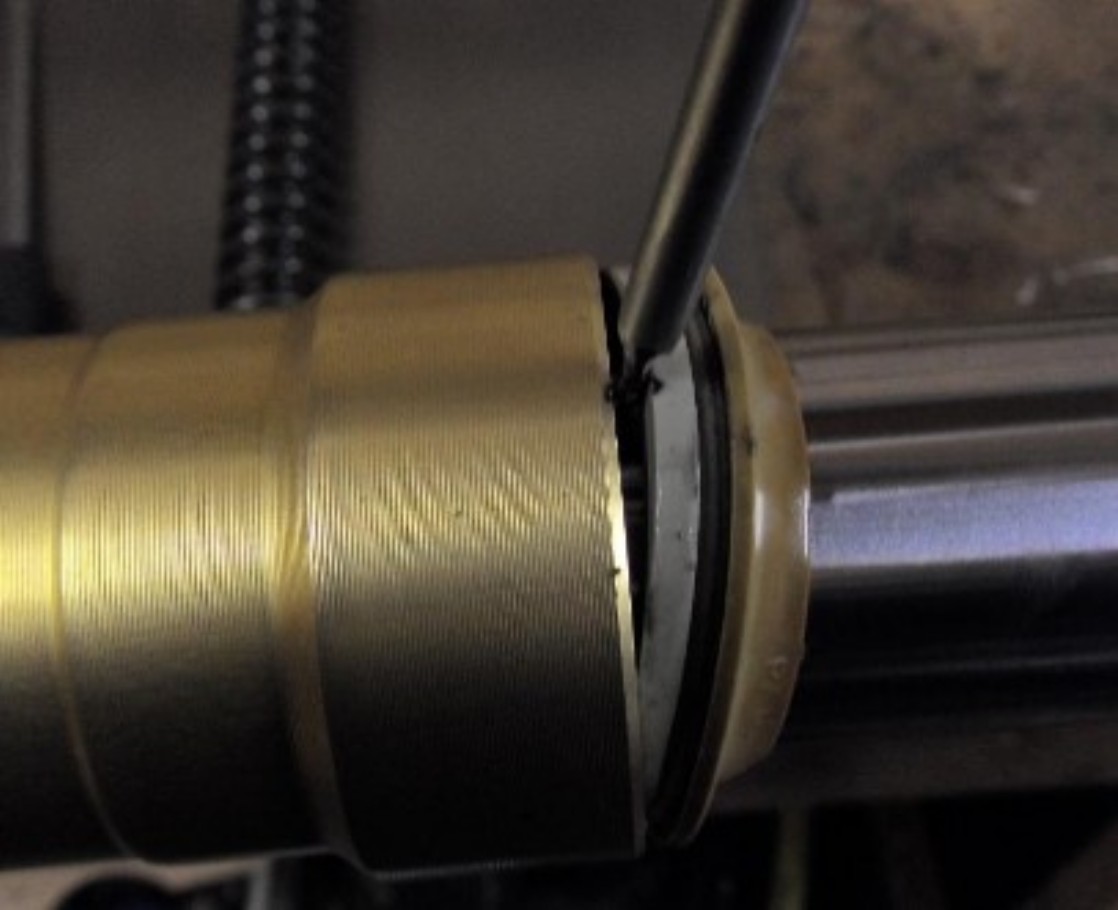

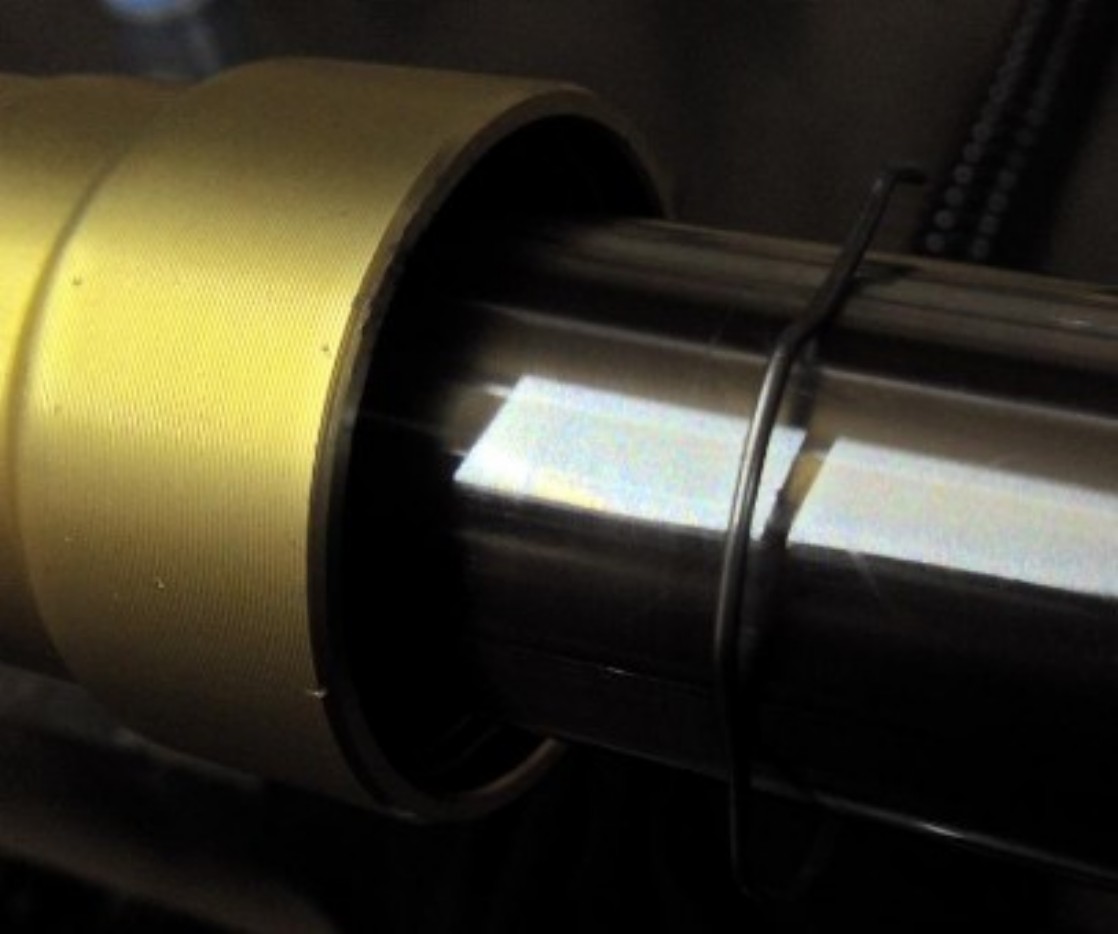

Remove dust seal carefully with a screw driver
Make sure you don't scratch the inner tube.

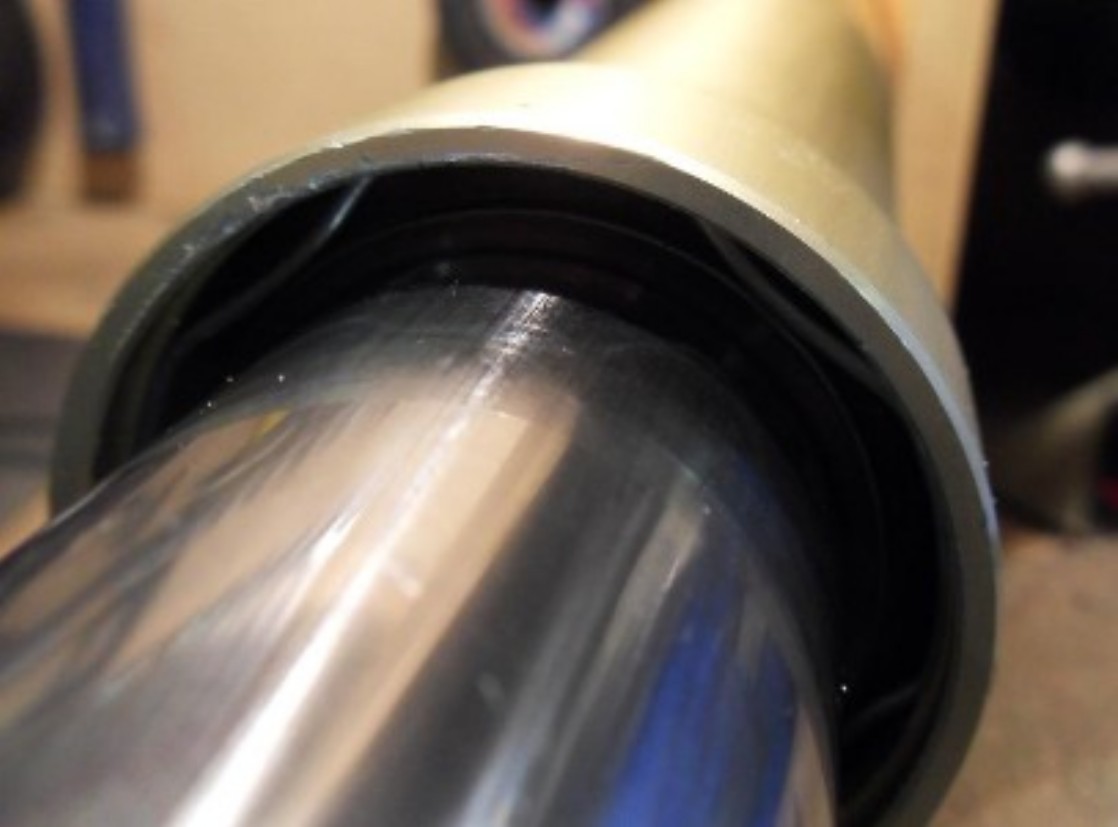

Remove inner spring

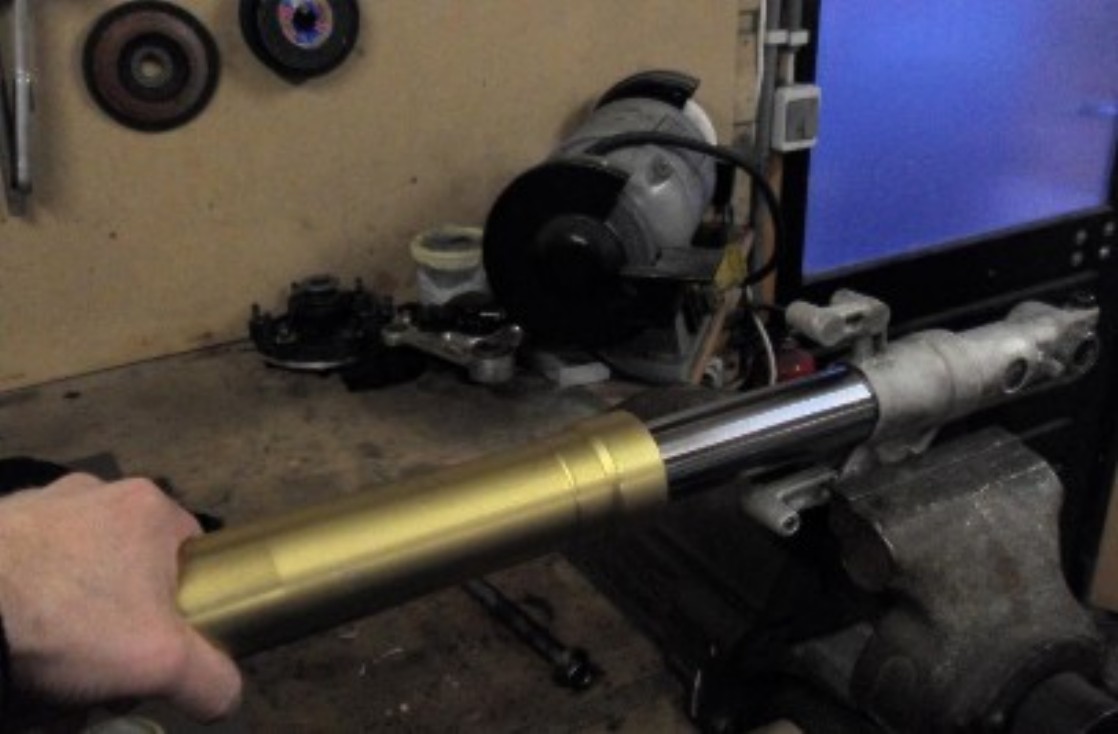

With some hard pulses pull the outside tube from inner tube.
This can be rough work as they may get stuck quit heavily.

(don't hesitate as you have to do 10 till 15 hard pulls)

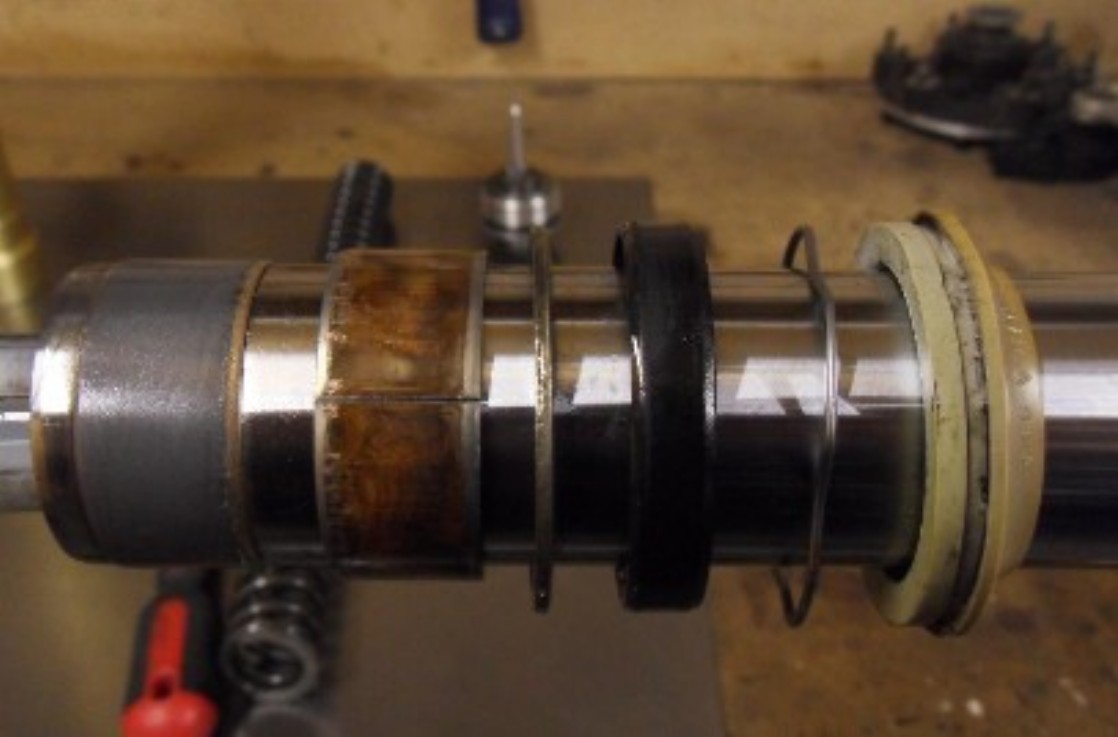

Here you have a situation layout

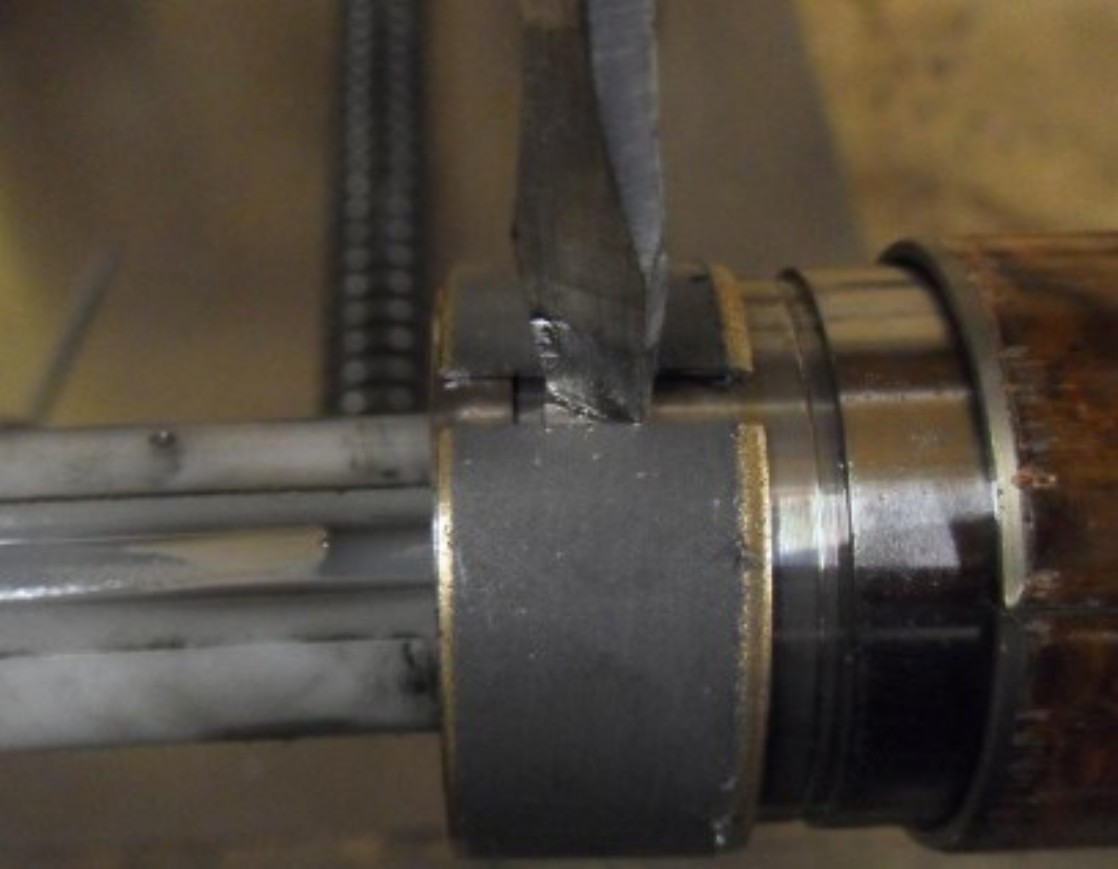

Remove the DU bush by opening it with a screwdriver

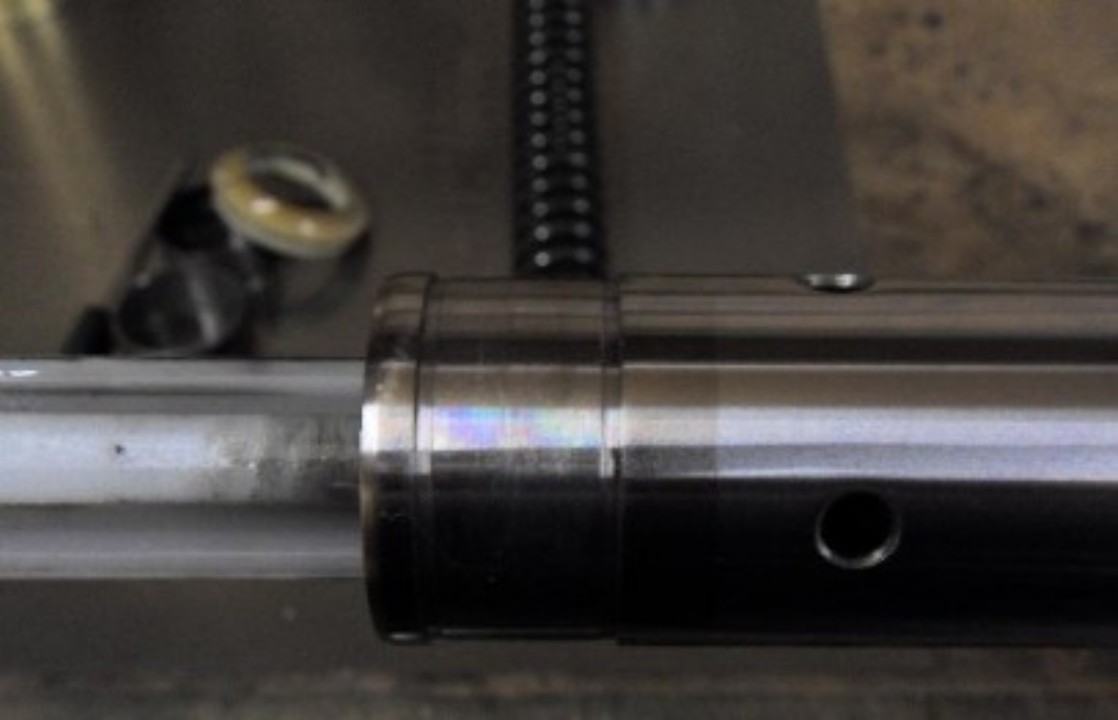

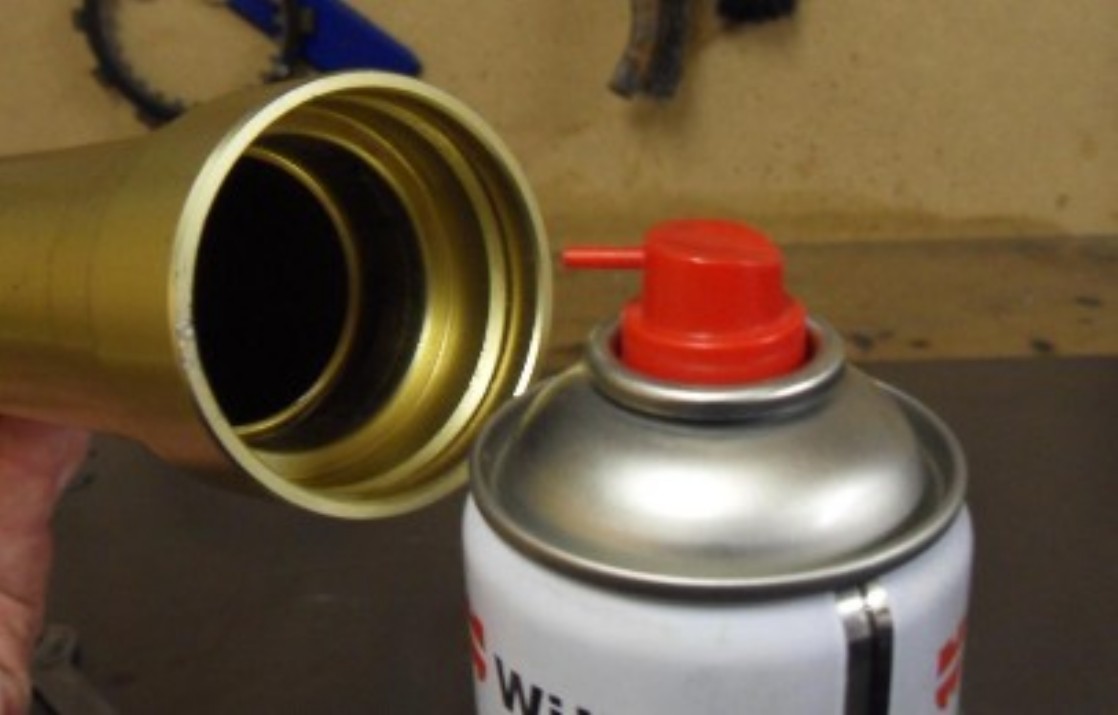

Make all parts clean

Placing the oil seal.
Use some isolation tape, to make the seal glide easier over the trouble zone.

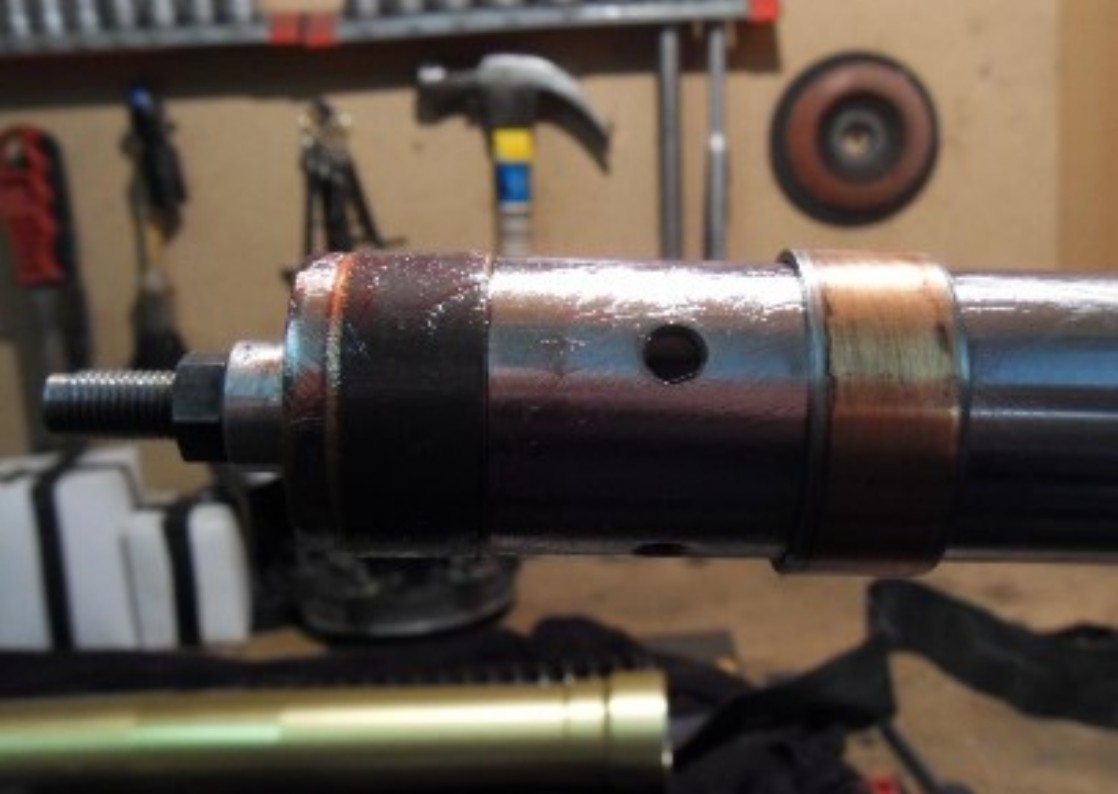

After that, grease the DU bushes a bid.

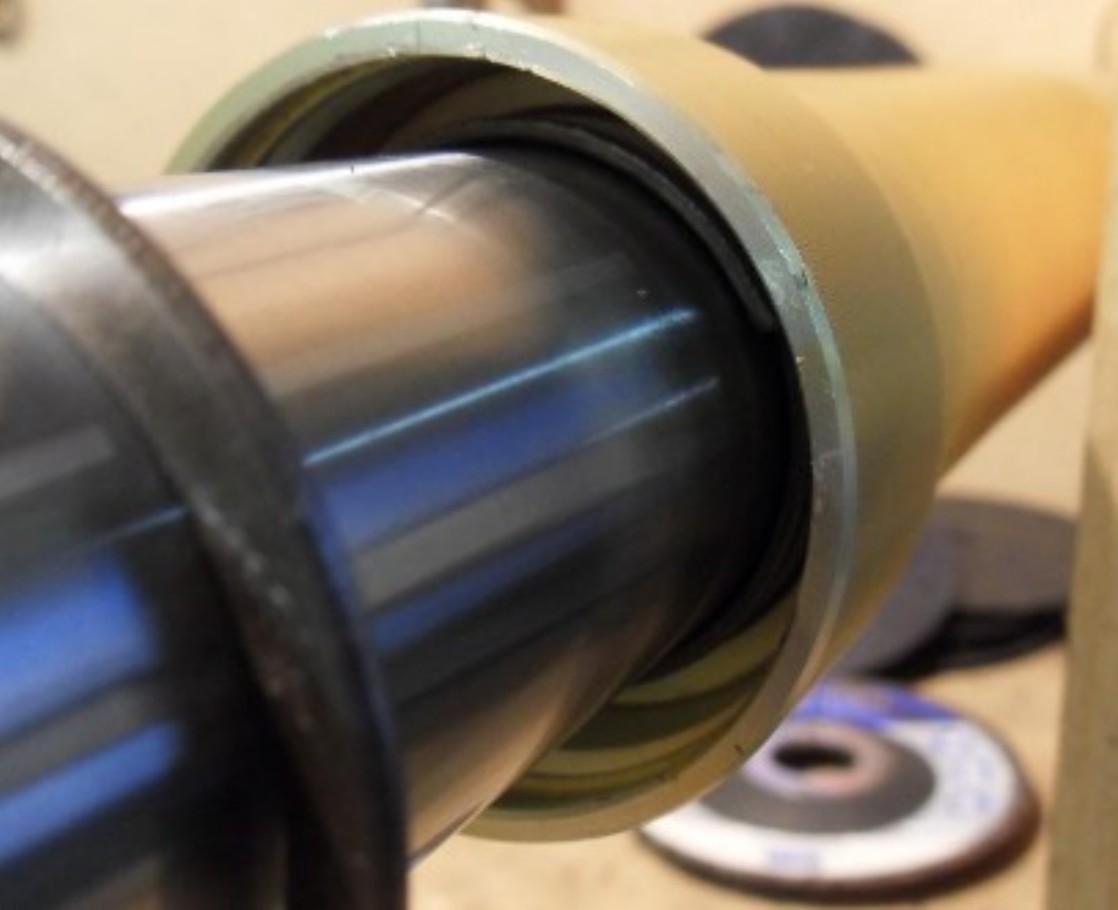

Take the time to press the DU bush into its place.
Pull the outer tube almost to its Max position, to prevent any scratches/dens (on the inner tube) when tapping the bush in.

Tap on the Washer, not on the DU bush.

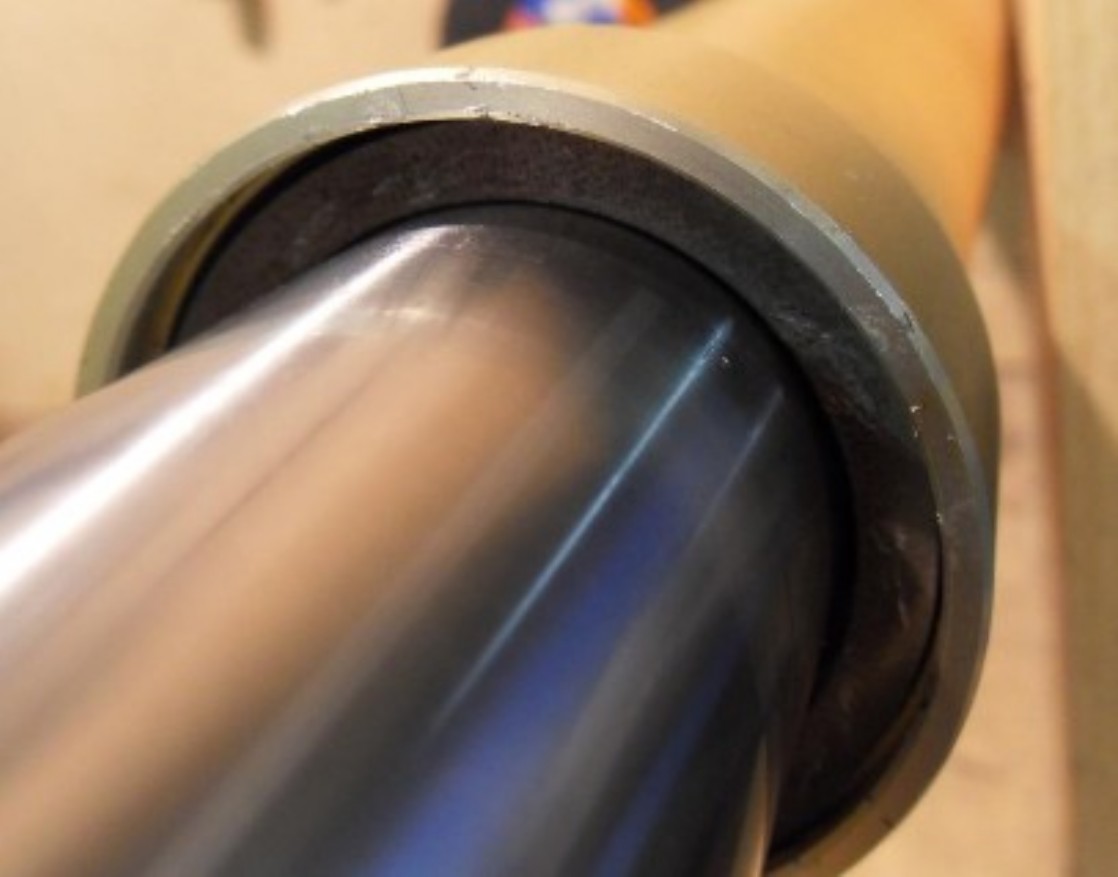

Press the seal gently in to its place then mount the seal spring

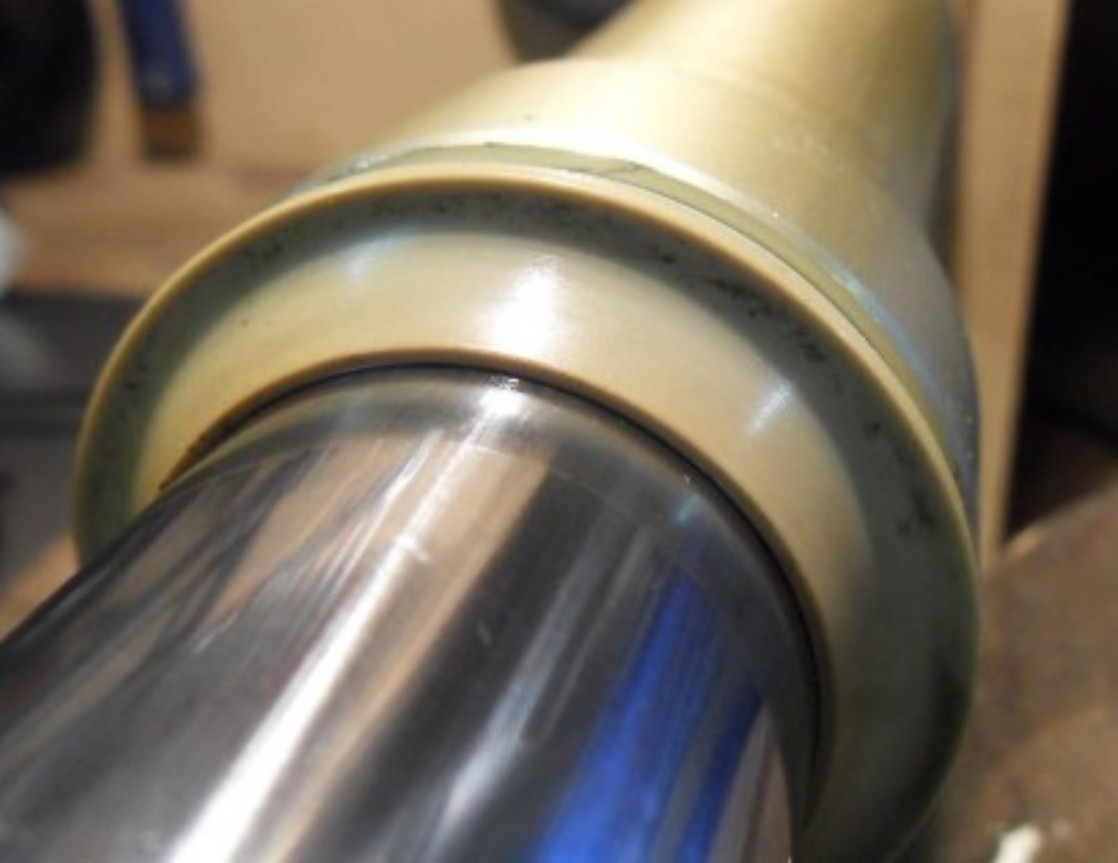

Last, press the dust seal on its place
