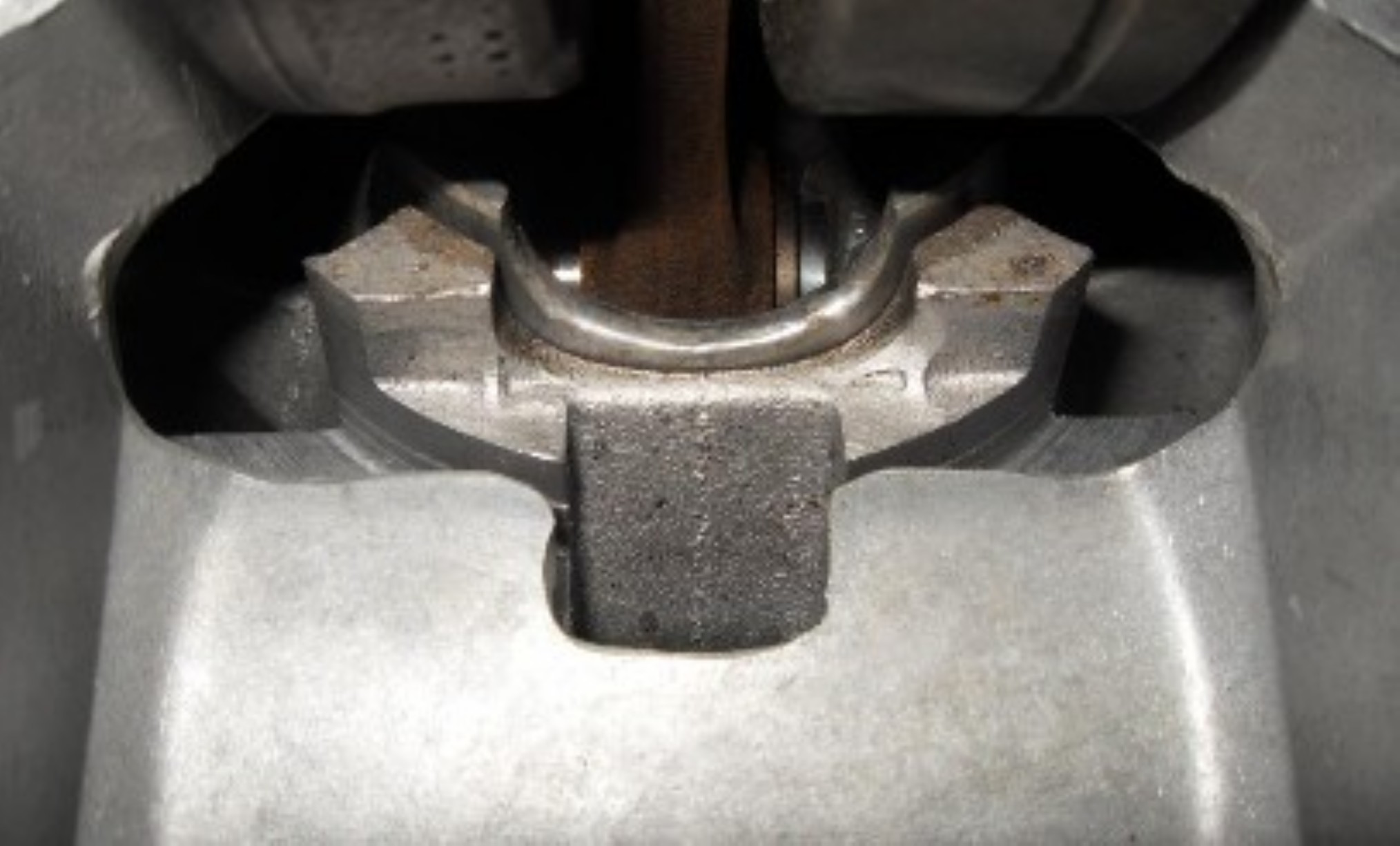

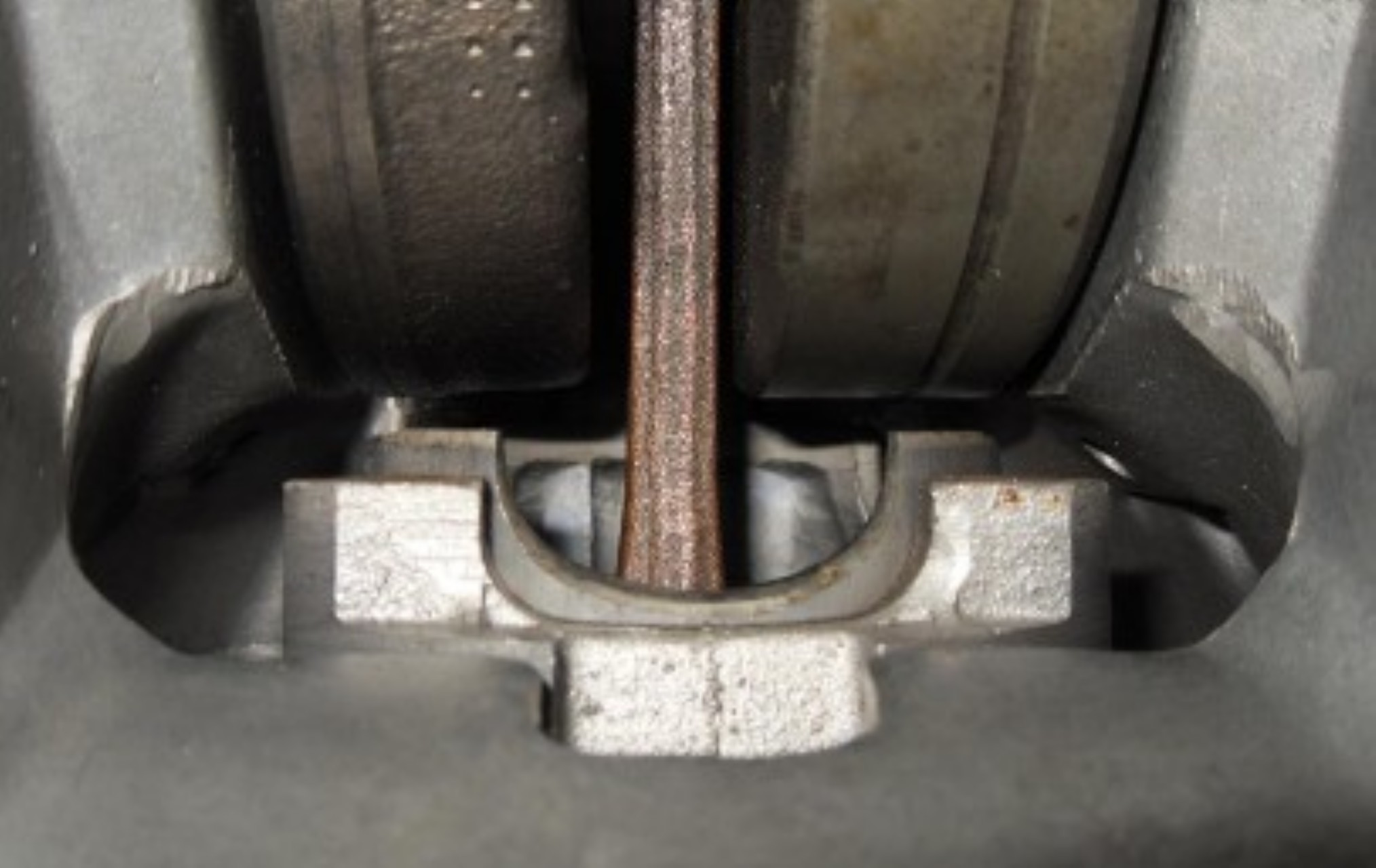

Real situation (reed block, piston, crank)

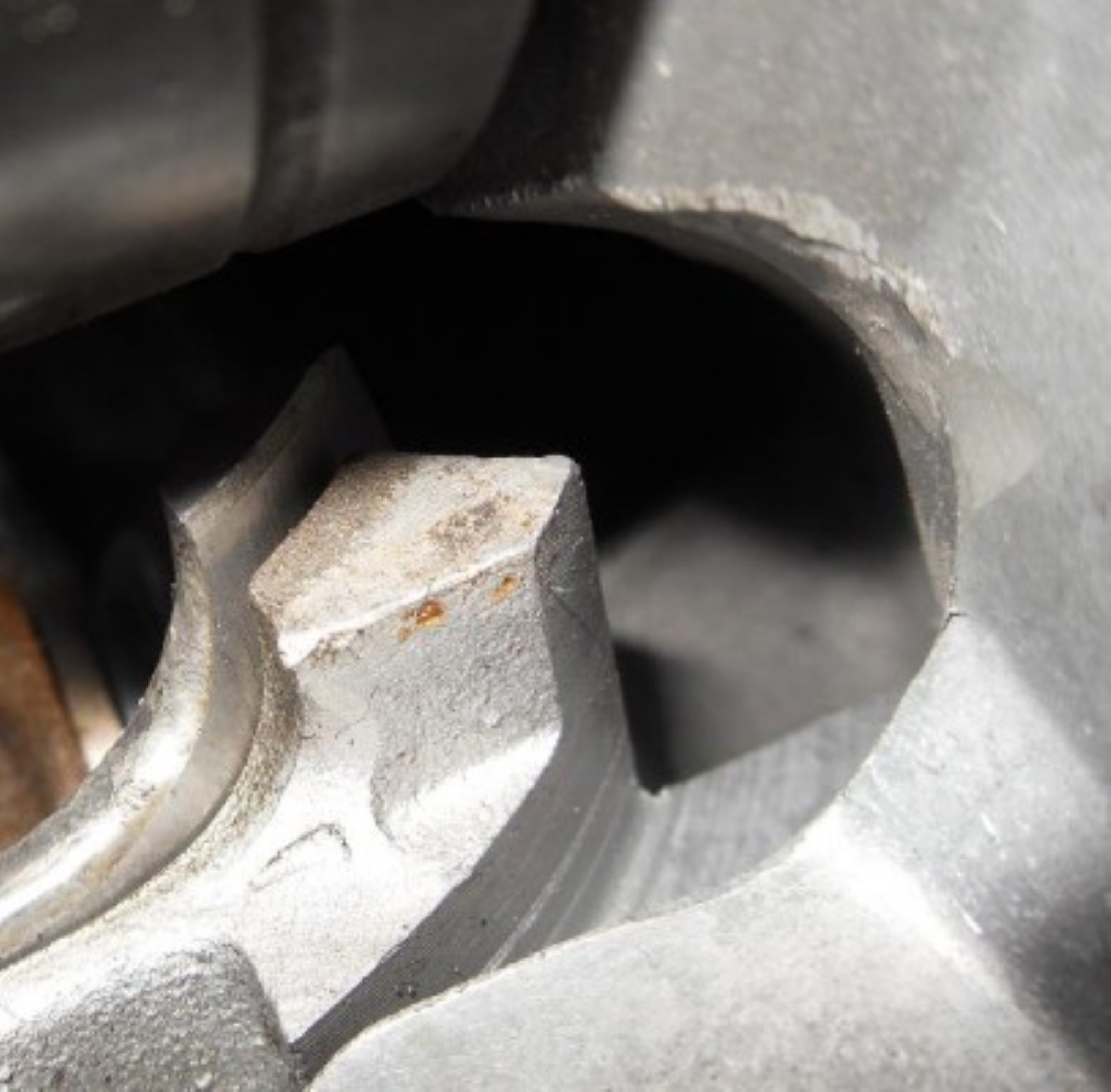

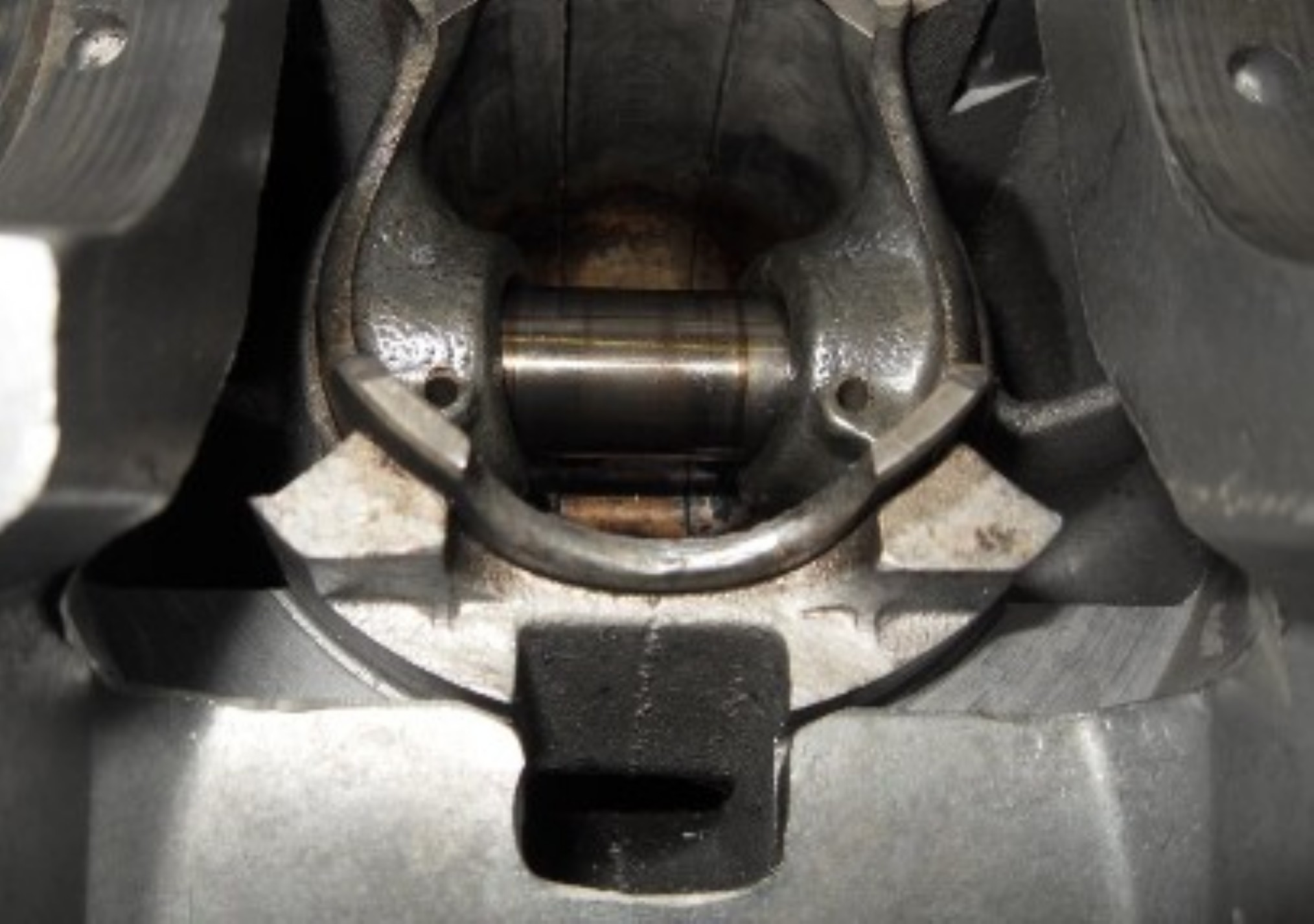

Flow disturbing

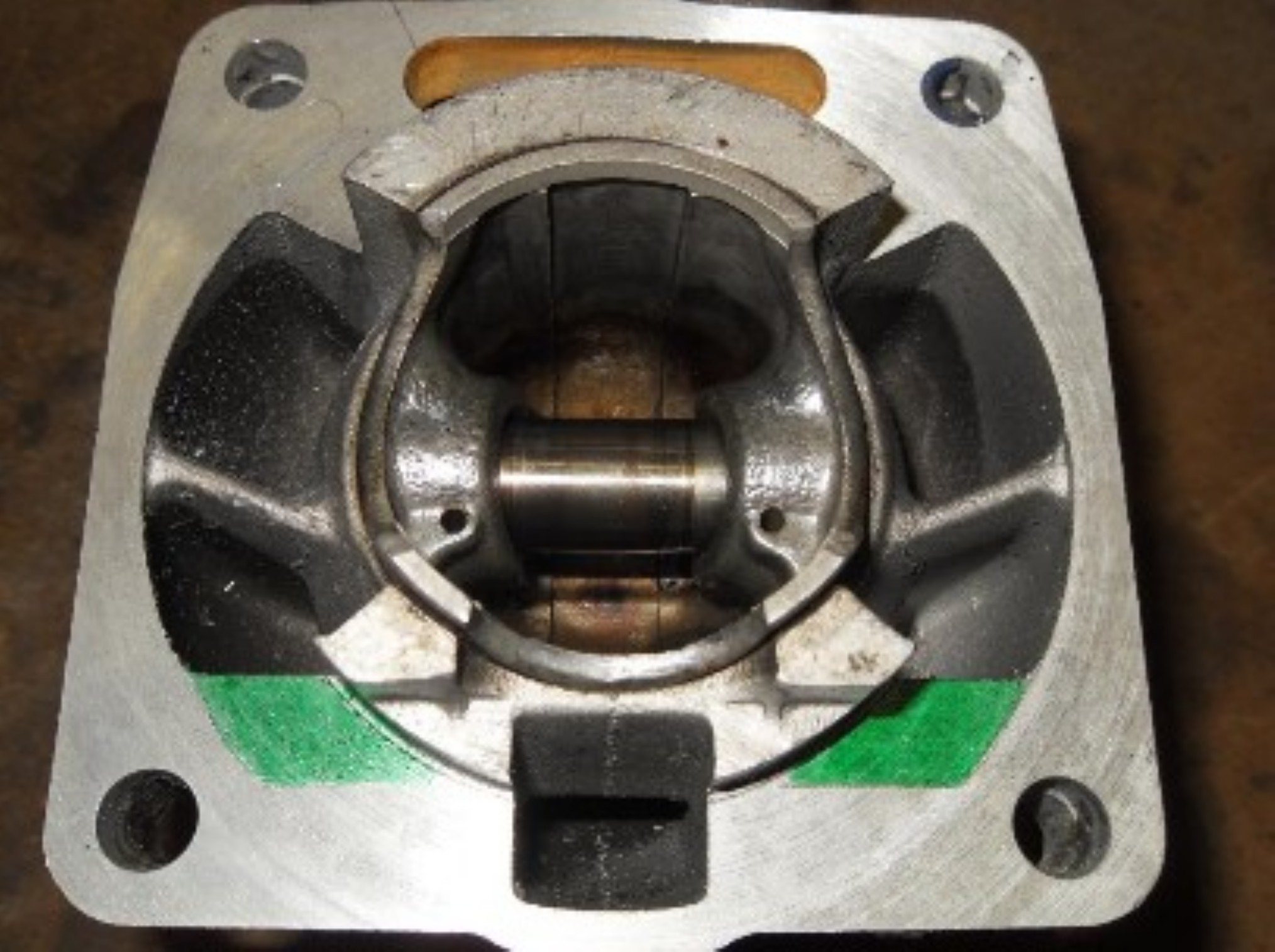

Also the wide off the inlet port is discussable, marked green on cylinder

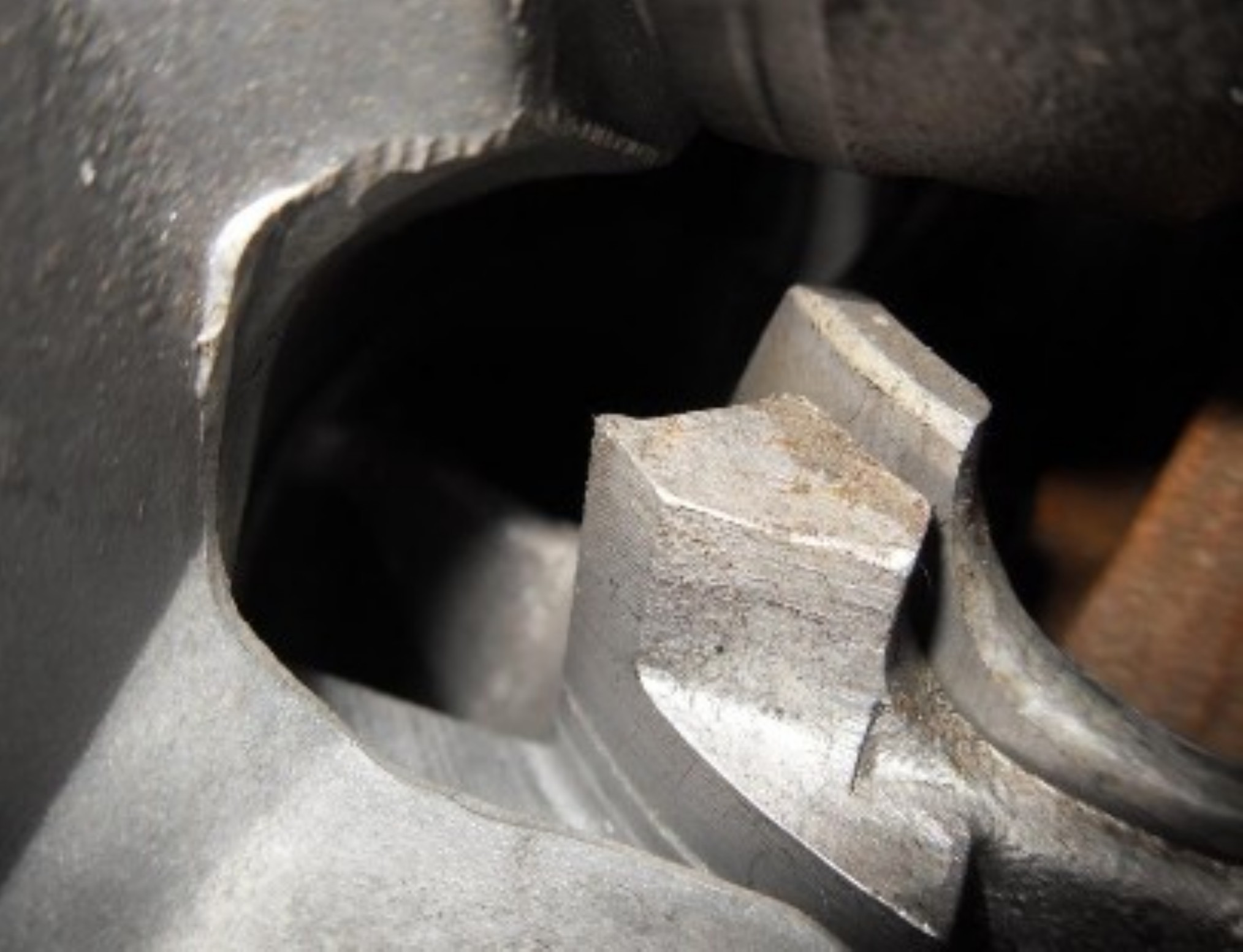

Made a start with shorten the legs

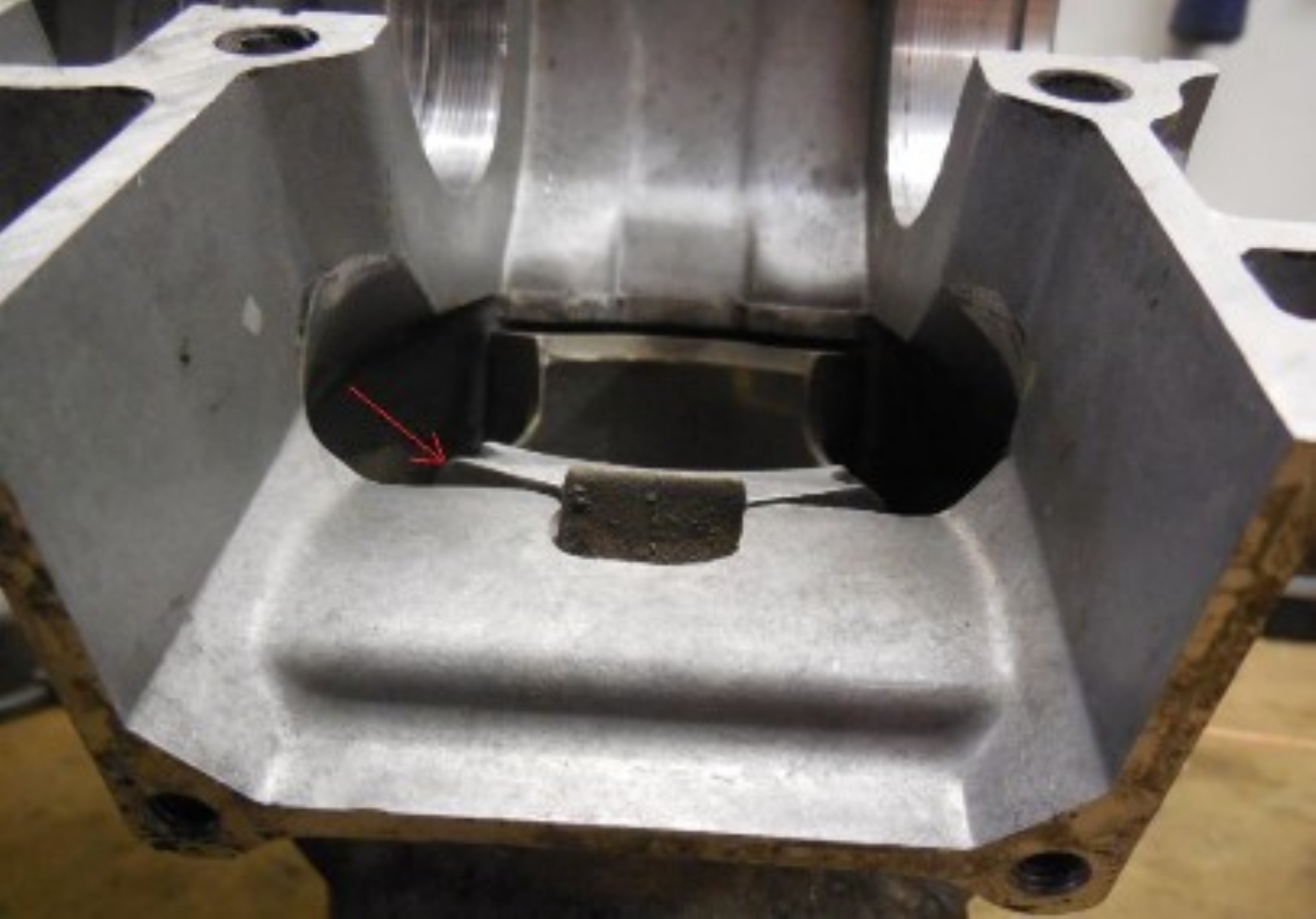

It certainly gives a better flow like this, but need to make a rounding inwards.

(First stage)

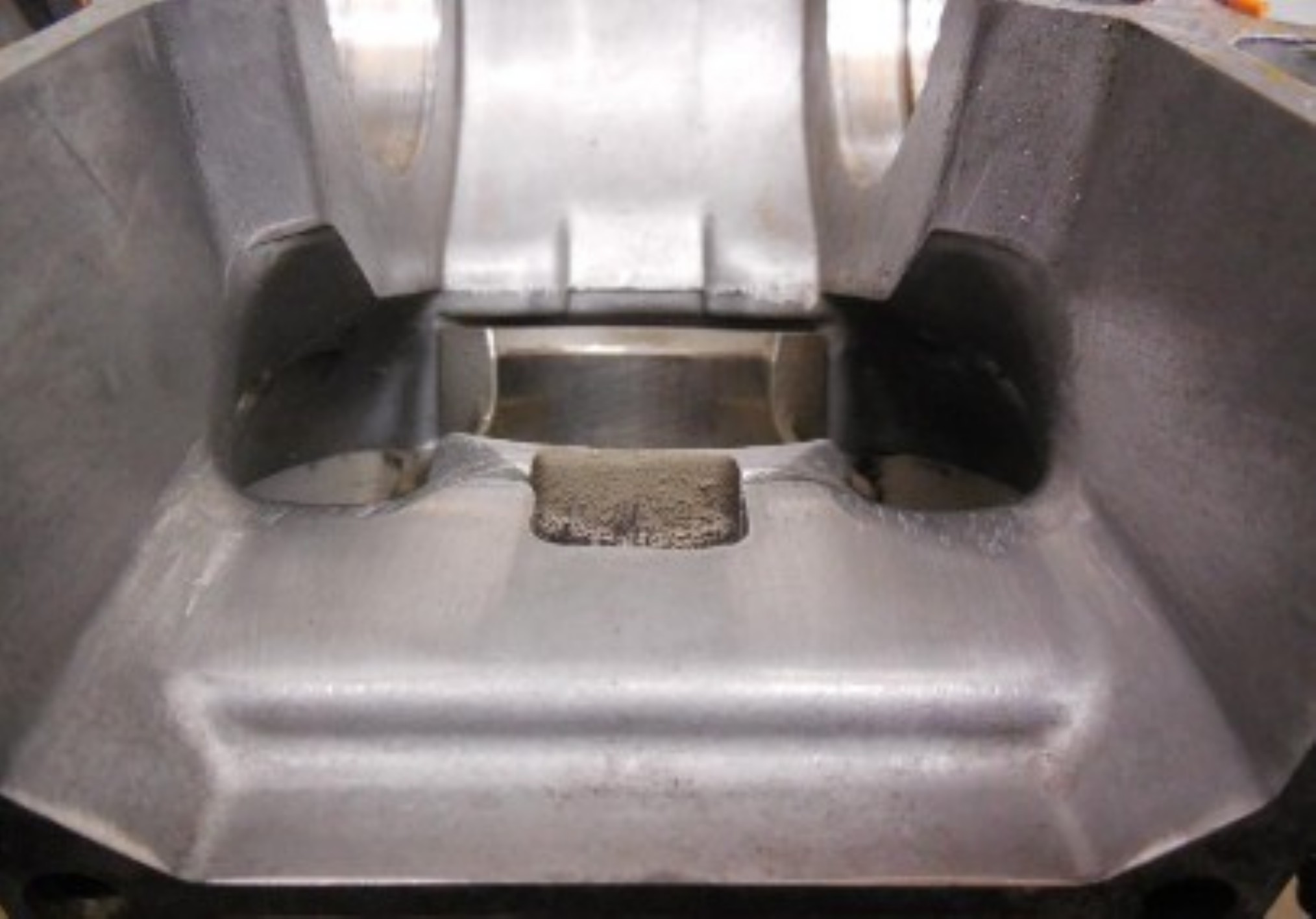

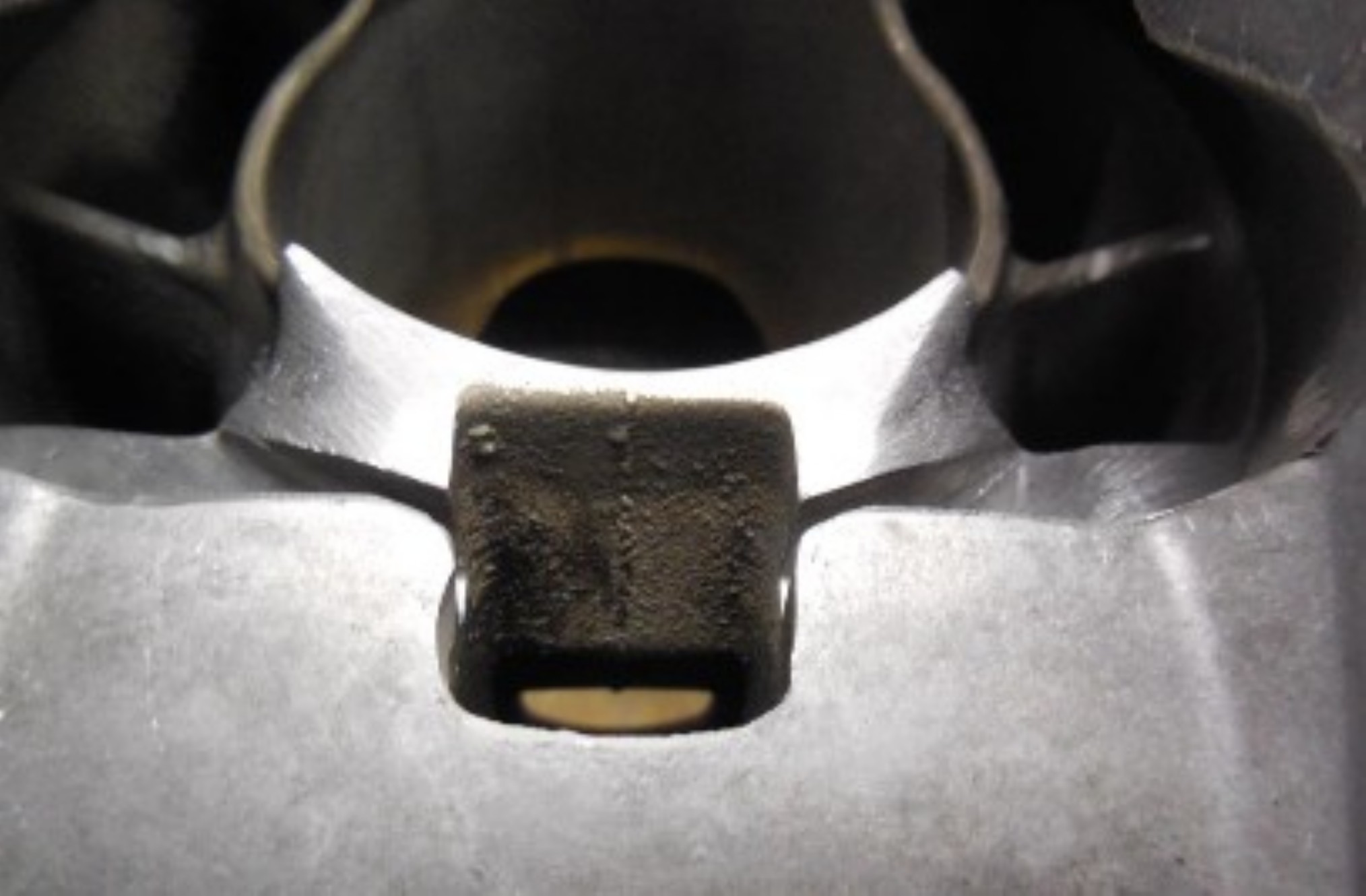

Shortened skirts like SUGO style, but grinded the flow towards the ports

(Second stage)

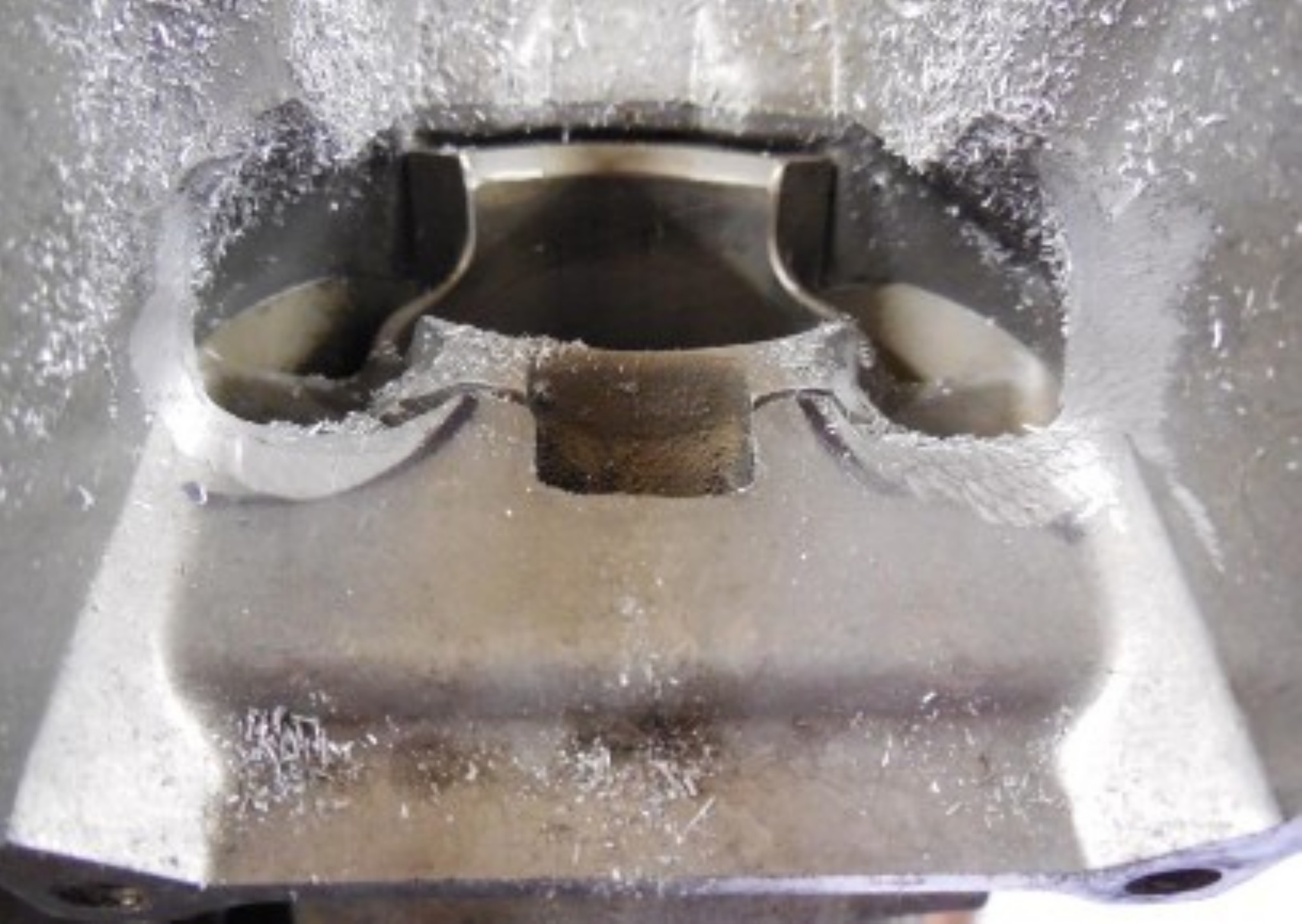

Enlarging the crank case inlet side, and trying to bending the flow a bid.

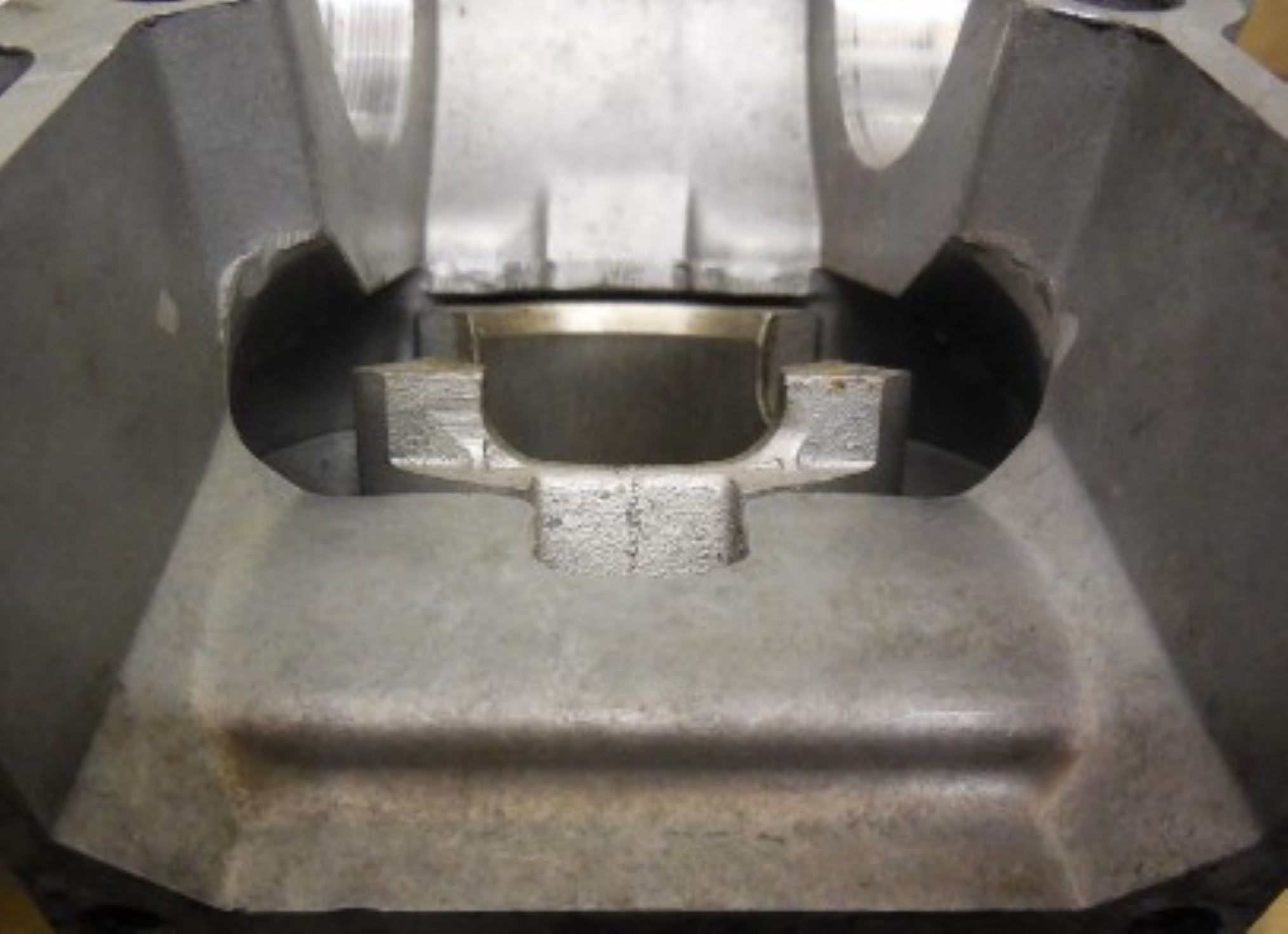

Compared with the stock configuration, looks like it is going the right way

(Third stage)

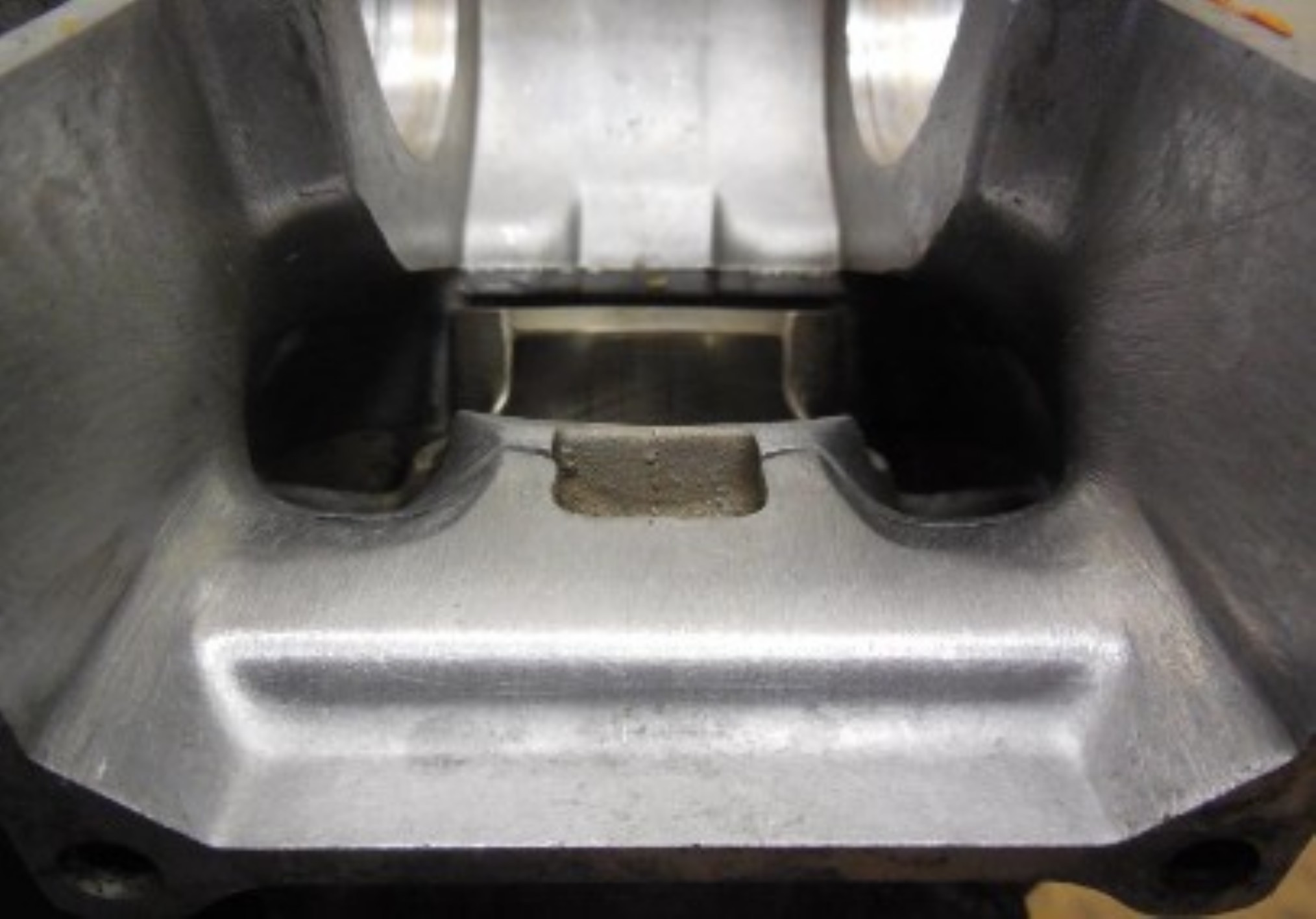

Decided to make it a bid larger then it was

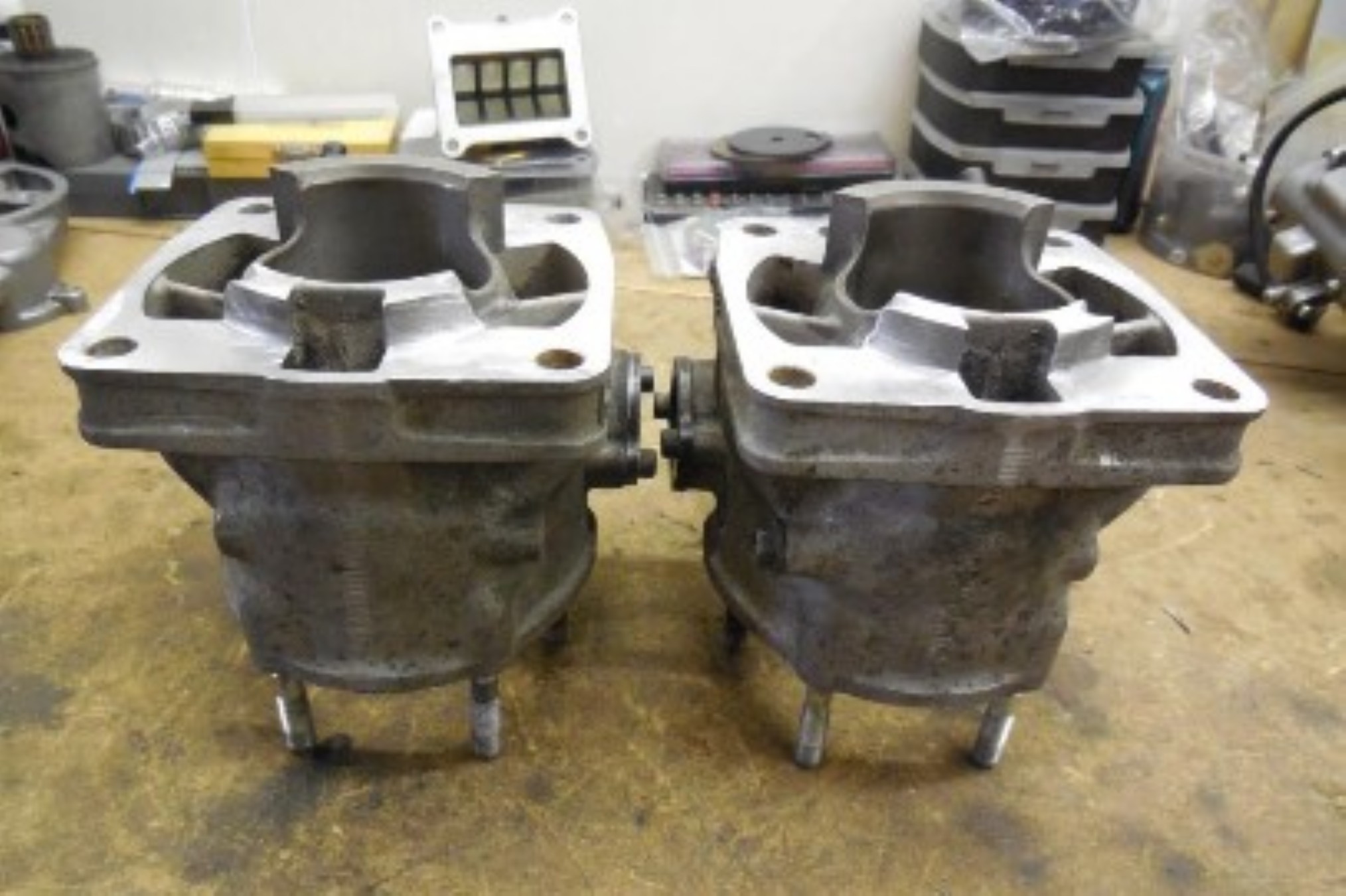

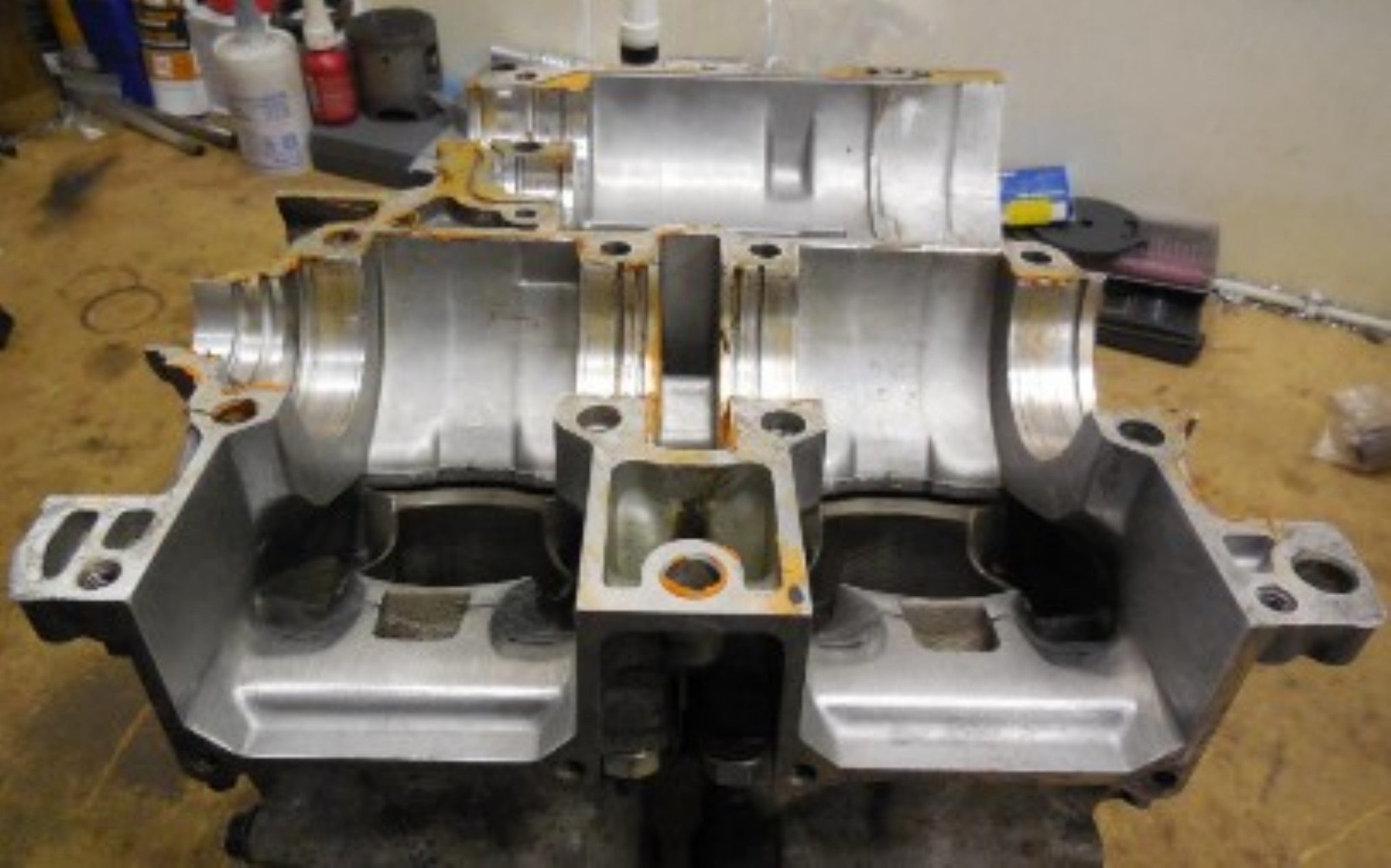

Results both side's

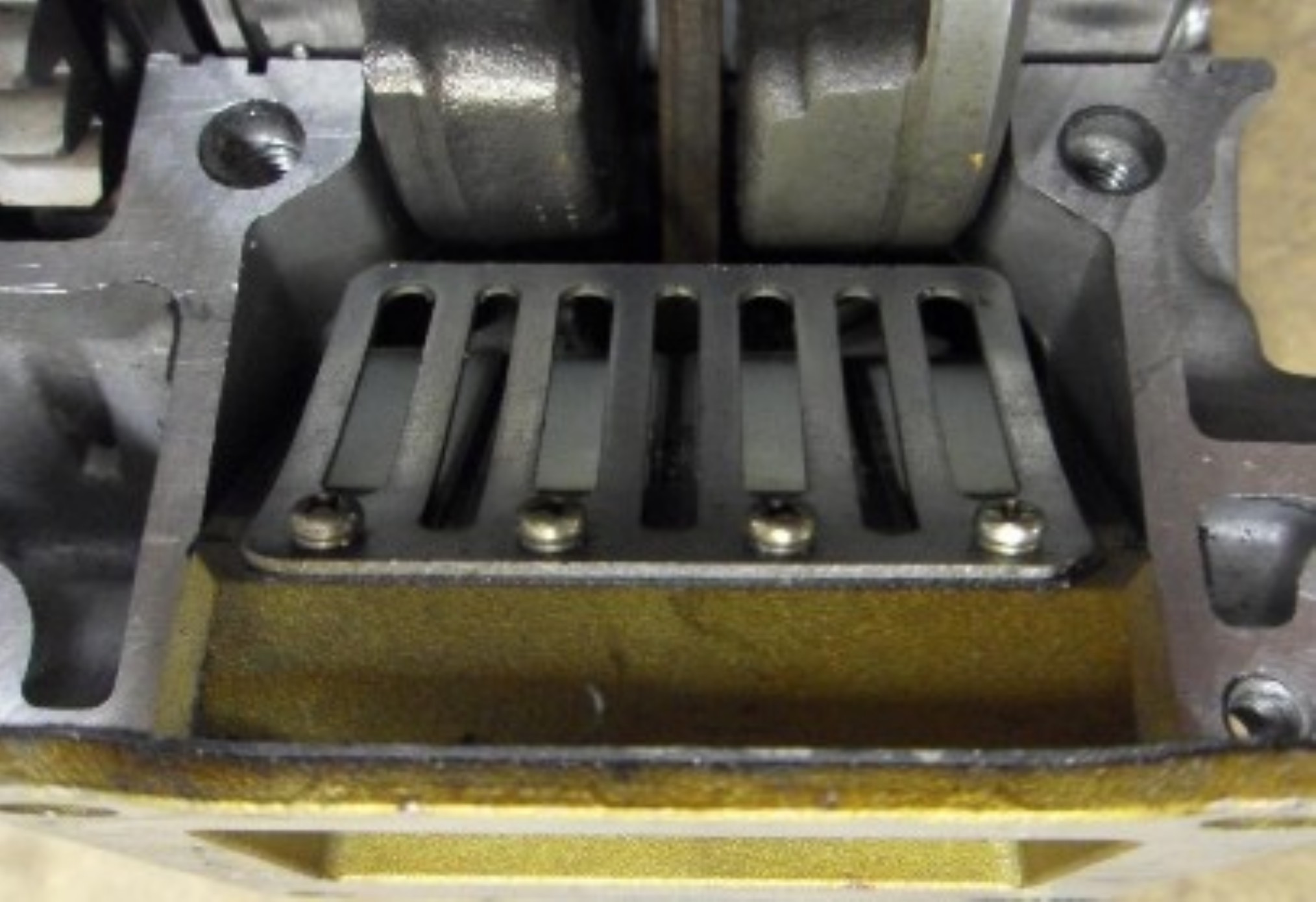

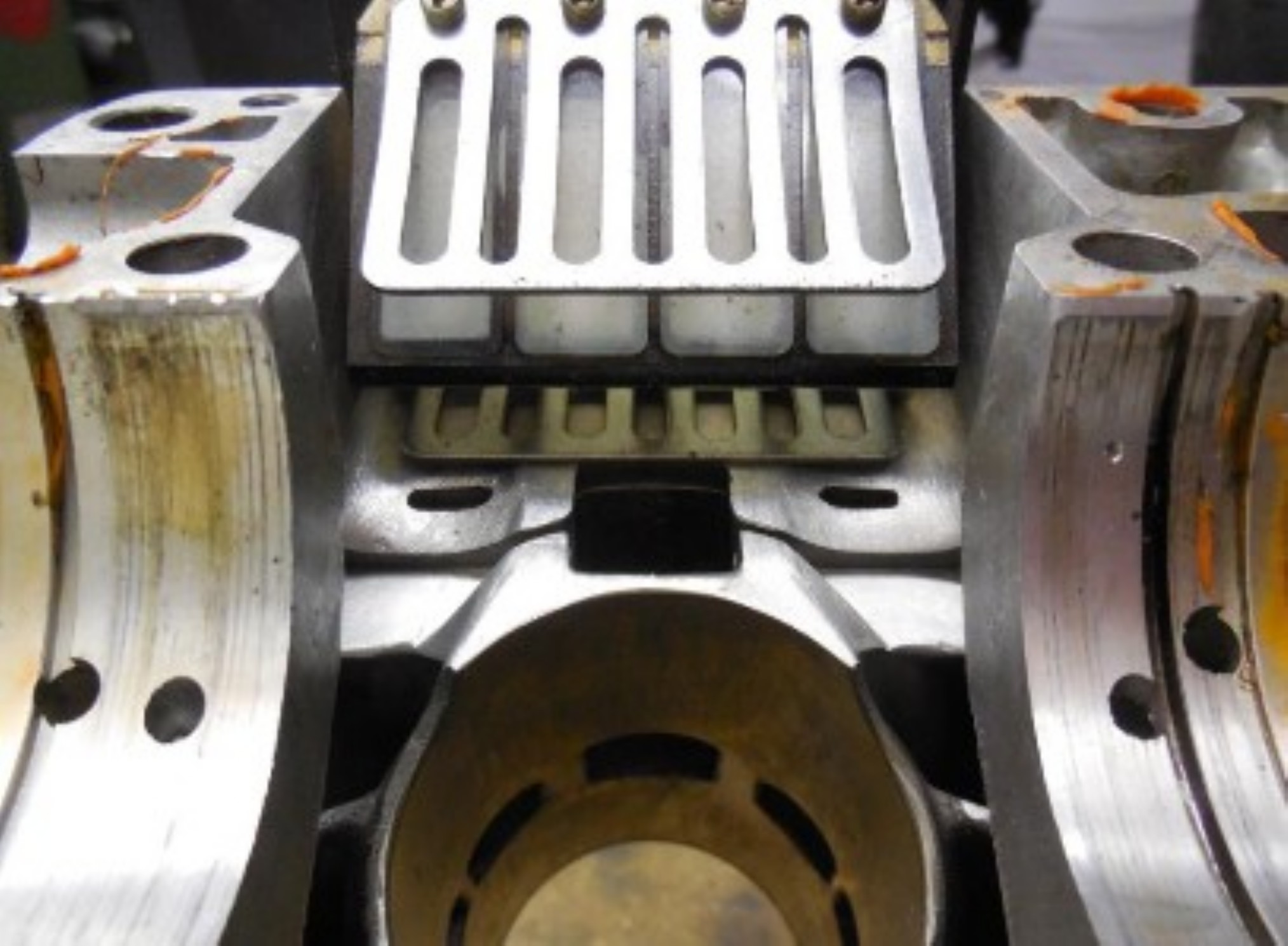

Reed block will be placed 10mm outside to open the booster port.
